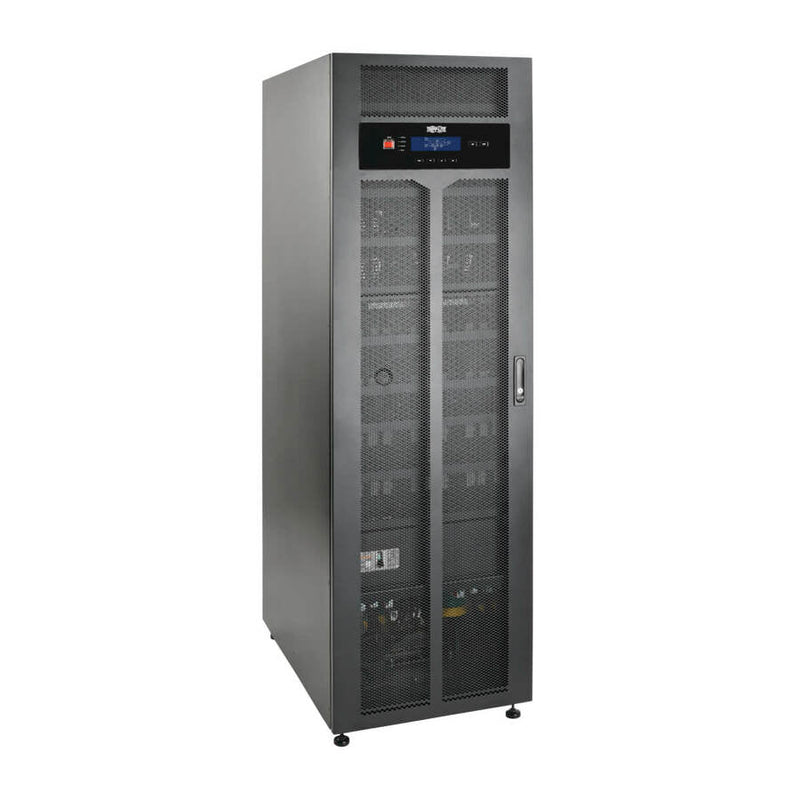

Tripp Lite by Eaton SmartOnline SUT40K 40kVA Tower UPS - SUT40K - Double Conversion Online UPS, 120 V AC,208 V AC, Pure Sine Wave, 120 V AC,208 V AC, Hardwired, SmartOnline SUT, 10.20 Minute, 3.70 Minute, 40 kVA

Tripp Lite by Eaton SmartOnline SUT40K 40kVA Tower UPS - SUT40K - Double Conversion Online UPS, 120 V AC,208 V AC, Pure Sine Wave, 120 V AC,208 V AC, Hardwired, SmartOnline SUT, 10.20 Minute, 3.70 Minute, 40 kVA-UPSPLUSBATTERY

Tripp Lite by Eaton SmartOnline SUT40K 40kVA Tower UPS - SUT40K - Double Conversion Online UPS, 120 V AC,208 V AC, Pure Sine Wave, 120 V AC,208 V AC, Hardwired, SmartOnline SUT, 10.20 Minute, 3.70 Minute, 40 kVA

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
 More payment options

Pickup currently unavailable at UPSPLUSBATTERY HQ

Tripp Lite by Eaton SmartOnline SUT40K 40kVA Tower UPS - SUT40K - Double Conversion Online UPS, 120 V AC,208 V AC, Pure Sine Wave, 120 V AC,208 V AC, Hardwired, SmartOnline SUT, 10.20 Minute, 3.70 Minute, 40 kVA
UPSPLUSBATTERY HQ

Pickup currently unavailable

5 Rue Goodfellow
Delson QC J5B 1V2
Canada

Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SUT40K
  • Input Voltage: 120 V AC,208 V AC
  • Waveform Type: Pure Sine Wave
  • Plug/Connector Type: Hardwired
  • Product Family: SmartOnline SUT
  • Backup/Run Time (Half Load): 10.20 Minute
  • Backup/Run Time (Full Load): 3.70 Minute
  • Load Capacity: 40 kVA

    • Marketing Information: The SUT40K SmartOnline® SUT Series 3-Phase 208/120V 220/127V 40kVA 40kW On-Line Double-Conversion UPS provides complete protection against power interruptions and fluctuations that can contribute to equipment failures and data loss. It's recommended for critical data center, telecommunications, computer network, light industrial and financial applications.

    The Voltage and Frequency Independent (VFI) design allows continuous operation at either 50 or 60 Hz. Zero transfer time from online to battery mode ensures no disruption to attached equipment loads. Offering an efficiency of 94% during normal operation and 98% in economy mode, the SUT40K reduces energy losses for cost-saving operation. Automatic bypass keeps connected equipment powered, even during overloads and many potential UPS fault conditions.

    IGBT inverter technology produces output power with less than 2% total harmonic distortion (THDi) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

    Managing the SUT40K is simplified through the multi-language LCD interface, which displays critical operating conditions and diagnostic data, such as battery and load status. Four LEDs indicate AC, bypass, battery and fault modes. A built-in card slot supports optional remote management cards, such as WEBCARDLX, for comprehensive monitoring and control over a network.
Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SUT40K
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Series:SUT
  • Product Model:SUT40K
  • Product Name:SmartOnline SUT40K 40kVA Tower UPS

    • Marketing Information:The SUT40K SmartOnline® SUT Series 3-Phase 208/120V 220/127V 40kVA 40kW On-Line Double-Conversion UPS provides complete protection against power interruptions and fluctuations that can contribute to equipment failures and data loss. It's recommended for critical data center, telecommunications, computer network, light industrial and financial applications.

    The Voltage and Frequency Independent (VFI) design allows continuous operation at either 50 or 60 Hz. Zero transfer time from online to battery mode ensures no disruption to attached equipment loads. Offering an efficiency of 94% during normal operation and 98% in economy mode, the SUT40K reduces energy losses for cost-saving operation. Automatic bypass keeps connected equipment powered, even during overloads and many potential UPS fault conditions.

    IGBT inverter technology produces output power with less than 2% total harmonic distortion (THDi) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

    Managing the SUT40K is simplified through the multi-language LCD interface, which displays critical operating conditions and diagnostic data, such as battery and load status. Four LEDs indicate AC, bypass, battery and fault modes. A built-in card slot supports optional remote management cards, such as WEBCARDLX, for comprehensive monitoring and control over a network.
    PRODUCT SPECIFICATIONS
    Plug/Connector Type Hardwired
    Receptacle Type Hardwired
    Phase Three Phase
    Application/Usage
    • Datacenter
    • Telecommunication
    • Network
    Load Capacity (VA) 40 kVA
    Input Voltage
    • 120 V AC
    • 208 V AC
    Input Voltage Range 120 V AC - 220 V AC
    Output Voltage
    • 120 V AC
    • 208 V AC
    Waveform Type Pure Sine Wave
    Network Management SNMP Manageable
    Backup/Run Time (Full Load) 3.70 Minute
    Backup/Run Time (Half Load) 10.20 Minute
    Height 69.30" (1760.22 mm)
    Width 20.50" (520.70 mm)
    Depth 31.50" (800.10 mm)
    Weight (Approximate) 886 lb (401882.84 g)
    Package Contents
    • SmartOnline SUT40K 40kVA Tower UPS
    • RS-232 (DB9) Cable
    • Owner's Manual
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 1 Year

    Call us if more information required.
