Eaton Double Conversion Online UPS

About Eaton Double Conversion Online UPS

What is an Eaton double-conversion online UPS?

Online (double-conversion) UPS runs the load permanently from the inverter — utility AC continuously rectified to DC, then re-inverted to clean AC before reaching equipment. Transfer time effectively zero milliseconds during a power event, complete galvanic isolation from utility-side disturbances, fully regenerated sine wave at all times. Required topology for medical equipment, VoIP PBX, precision laboratory gear, industrial control, and data-centre infrastructure where line-interactive transfer is unacceptable.

Eaton's online catalog is one of the deepest in the industry: single-phase 9SX 700 VA – 11 kVA and 9PX / 9PX G2 700 VA – 22 kVA (with lithium-ion variants on G2 SKUs), three-phase 93E 20–60 kVA for mid-enterprise, and 93PM 30–500 kVA modular for data centres and large facilities. UPSPLUSBATTERY.CA stocks the single-phase 9SX and 9PX range with matching Eaton replacement batteries and EBM external battery modules. For line-interactive equivalents see Eaton line-interactive UPS. Full Eaton catalog at Eaton UPS.

Eaton online families

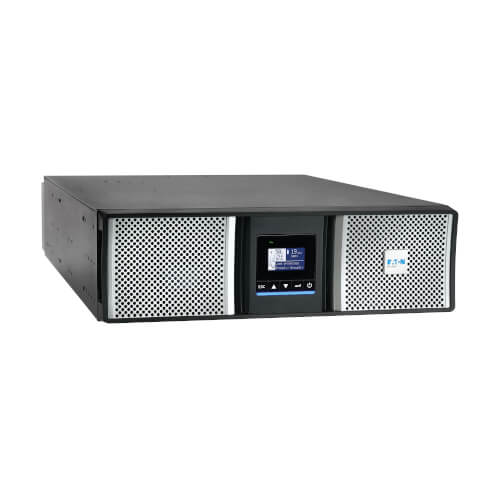

Most mid-enterprise IT decisions sit between 9SX and 9PX. Both true double-conversion online; 9PX runs unity PF (VA = watts) while 9SX typically runs 0.9 PF. On modern blade servers and GPU-dense racks drawing close to unity, that difference matters — 9PX3000RT2U delivers 3000 W where same-VA 9SX delivers ~2700 W. See Eaton 9PX vs 9SX guide.

How to choose

Sizing: VA, watts, power factor

9PX and most current 9SX nameplate VA is close to available watts due to high (0.9–1.0) PF. Add nameplate watts × 1.25 buffer, pick UPS whose watt rating exceeds. Don't size on VA alone. 9PX3000RT2U delivers 3000 VA / 3000 W at unity PF — a legacy 0.6-PF competitor at same VA delivers only 1800 W. UPS sizing guide.

Runtime and EBMs

Stock single-phase Eaton online runtime at full load: 3–6 minutes. Eaton EBMs (External Battery Modules) snap onto 9PX and 9SX to extend significantly. 9PX1500RT + 9PXEBM48RT delivers ~45 min at half load vs 5 min stock. EBMs hot-swappable on 9PX and 9SX. For 93PM, battery strings configured at installation based on target ride-through.

Network management

All current 9PX and 9SX include Network-M2 card slot. Network-M2 provides SNMP, Modbus TCP, RESTful API — integrates with Eaton Intelligent Power Manager (IPM) for multi-UPS fleet monitoring and automated graceful shutdown of VMware, Hyper-V, Linux. Network-M2 ships standard on most 9PX G2 rack/tower SKUs.

Spec reference

All ship with Eaton IPM software. 9PX G2 lithium-ion variants available for ~10-year battery service life — confirm SKU availability with our team.

Replacement batteries

Eaton online uses 744-A and 9PXEBM/9SXEBM EBM part numbers. Internal battery kits (744-A3121, 744-A2992) replace SLA cells inside chassis; EBMs (9PXEBM48RT, 9PXEBM240RT, 9SXEBM48T) snap onto UPS via proprietary bus connector. Aftermarket replacements stocked as compatible — built to identical V, Ah, and terminal spec as factory cells. 1-year UPSPLUSBATTERY warranty. See Eaton replacement batteries.

Installation, warranty, support

Every Eaton online UPS sold by UPSPLUSBATTERY.CA ships from our Canadian warehouse with full manufacturer warranty — typically 3 years electronics, 2 years battery for 9PX/9SX, with extended service contracts available. Up to 3 kVA plug-and-play. 5 kVA+ on 9PX typically requires hard-wire input by licensed electrician per CSA. Three-phase 93PM, 93E, and 9395 require commissioning by qualified Eaton-authorised technician. Replies within 1 business day.

FAQ

9PX vs 9SX?

Both double-conversion online. 9PX runs unity PF (VA = watts), 9SX typically 0.9 PF. Modern server/networking loads draw close to unity — 9PX delivers significantly more real watts from same VA rating. 9PX G2 also supports lithium-ion battery for ~10-year service life. For lighter IT and network-closet loads, 9SX often delivers better value per dollar. 9PX vs 9SX guide.

When is online required vs line-interactive?

Required when load can't tolerate even 2–4 ms transfer, total isolation from utility-side noise/harmonics is mandatory, or input voltage fluctuates outside line-interactive AVR correction range. Specific apps: medical diagnostic, VoIP PBX, precision lab, industrial CNC/SCADA, active-PFC supplies. Standard server rooms — line-interactive (5P, 5PX) usually sufficient. line-interactive vs online UPS.

93PM vs 9PX?

9PX is single-phase (up to 22 kVA). 93PM is modular three-phase 30–500 kVA for data-centre-scale capacity. 93PM uses hot-swap power and battery modules with N+1 redundancy, Modbus and SNMP integration. 9PX is plug-and-play at lower end; 93PM is capital infrastructure with site commissioning.

Add runtime to 9PX or 9SX?

Yes. Both support Eaton EBMs connecting via bus cable on rear. Each EBM roughly doubles runtime. Multiple EBMs stack on most models. EBM is hot-swappable on 9PX.

Unity power factor on 9PX?

Unity PF (1.0) means VA and W ratings are equal. 9PX3000RT2U delivers 3000 VA AND 3000 W. Modern blade servers, GPU nodes, high-density storage draw close to unity PF — unity-PF UPS ensures actual watts the load needs without oversizing VA.

Pure sine wave output?

Yes. Every Eaton double-conversion online (9SX, 9PX, 93E, 93PM, 9395) produces fully regenerated pure sine.

Battery life?

Eaton rates SLA for 4–5 years in 20–25 °C. Lithium-ion on 9PX G2 rated for ~10 years. Eaton IPM and front panel flag battery once impedance crosses replacement threshold.

Canadian warranty?

Yes. Full manufacturer warranty — typically 3 years electronics + 2 years battery on 9PX and 9SX. Coordinated through our Canadian team. RMA does not require cross-border shipping. Shipped from our Canadian warehouse.
