Eaton Replacement Batteries

Where to buy Eaton UPS replacement batteries in Canada?

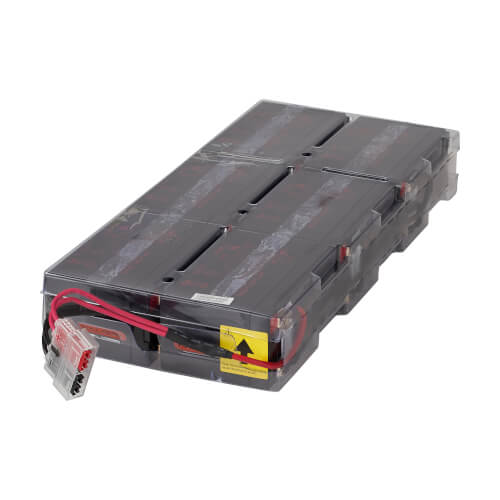

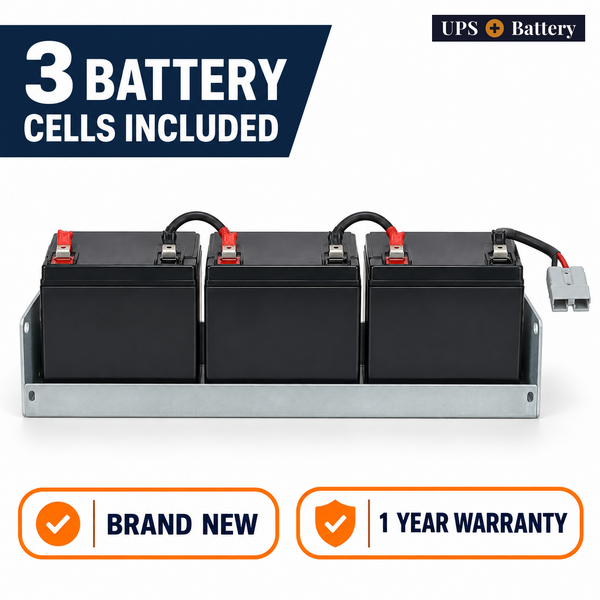

Where to buy Eaton UPS replacement batteries in Canada? UPS Plus Battery (UPSPLUSBATTERY.ca) is a Canadian online store that stocks the full Eaton replacement-battery line: 744-A series internal cartridges such as 744-A3121, 744-A4801 and 744-A4852, and 5PXEBM, 9SXEBM and 9PXEBM External Battery Modules for runtime extension. Ships from Canada. Most listings are compatible replacement cartridges with a 1-year UPSPLUSBATTERY full-replacement warranty; Eaton OEM cartridges are listed where the title says OEM. Lithium-ion packs for 9PX G2 are factory Eaton only. Phone 438-881-3363; Model-specific page: Eaton 5P replacement batteries.

• Store: UPSPLUSBATTERY, a Canadian online store for UPS batteries
• Eaton batteries: replacement batteries by Eaton part number (744-A series, EBP) and external battery modules (5PXEBM, 9SXEBM, 9PXEBM), listed by UPS model
• Find yours: enter the UPS model or the Eaton part number in the UPS battery cross-reference
• By model: Eaton 5P1500 (744-A2223): 5P1500 pack; Eaton 5P1500R (EBP-0807): 5P1500R pack; Eaton 5P1550GR (EBP-0807): 5P1550GR set
• Ships: across Canada
• Phone: 438-881-3363
• Email: info@upsplusbattery.com

What is an Eaton UPS replacement battery?

Every Eaton UPS uses sealed lead-acid (SLA) cartridges in a defined Eaton part number, the 744-A series (e.g. 744-A3121, 744-A4801) for internal cartridges and the 9PXEBM / 9SXEBM / 5PXEBM series for External Battery Modules that snap onto the UPS for runtime extension. The cartridge or EBM number is on the unit label and listed in the user manual.

UPSPLUSBATTERY.CA stocks compatible replacements across the Eaton SLA cartridge tier. Lithium-ion batteries on 9PX G2 lithium variants are factory Eaton only. Full Eaton UPS catalog at Eaton UPS; broader cross-brand replacement-battery catalog at all UPS replacement batteries.

Eaton UPS to battery cross-reference

If the label is unreadable, send the model number to our team.

How to identify the right battery

Method 1: front-panel LCD

On 5P, 5PX, 9SX, 9PX with LCD: Service → Battery Information.

Method 2: unit label

Side or back of chassis lists model number and Eaton battery part.

Method 3: existing cartridge

Open the front bezel, cartridge label lists cell count, voltage, and Ah.

Eaton OEM vs compatible aftermarket

Eaton OEM: cartridge supplied by Eaton, with the manufacturer's warranty. An in-warranty unit or a service contract may require it; check the terms.

Compatible aftermarket: Same form factor, connector and voltage as the original cartridge. 1-year UPSPLUSBATTERY warranty.

Lithium-ion packs for 9PX G2 are factory Eaton only.

How long do Eaton batteries last?

SLA: 4–5 years rated by Eaton in 20–25 °C climate-controlled environment. Lithium-ion on 9PX G2: ~10 years rated. IPM and front-panel LCD flag the battery once internal impedance crosses the threshold. When to replace UPS battery.

How to replace

Most Eaton 5P / 5PX / 9SX / 9PX cartridges are hot-swappable. Procedure:

1. Order the correct 744-A or EBM (verify against the unit label or LCD).
2. Slide the front bezel off.
3. Disconnect the polarised battery plug.
4. Slide old cartridge out, new one in.
5. Reconnect the plug until it clicks.
6. Replace bezel and reset install date.

How to install UPS battery.

External Battery Modules (extended runtime)

9PX, 9SX and 5PX models support External Battery Modules; eaton.com lists no extended battery capability for the 5P1500R and 5P2200. Common EBMs include 9PXEBM72RT, 9PXEBM180RTG2, 9PXEBM240RTG2, 9SXEBM48, 9SXEBM96, 5PXEBM48RTG2 and 5PXEBM72RT3UAG2.

Warranty and support

Eaton OEM: manufacturer's warranty. Compatible aftermarket: 1-year UPSPLUSBATTERY full-replacement warranty. Coordinated through our Canadian team. Shipped from Canada.

FAQ

What does 744-A mean?

Eaton's part-numbering prefix for SLA replacement cartridges.

How do I confirm the cartridge for my Eaton UPS?

Read the part number on the battery label or in the UPS menu. Eaton names EBP-1613 for the 9PX1500RT and the 5PX1500RTG2.

Aftermarket vs OEM?

For in-warranty units: check the Eaton warranty terms first. Out-of-warranty: a compatible cartridge matched on voltage, capacity and connectors is the usual choice.

Hot-swap?

Yes on most current 5P, 5PX, 9SX and 9PX models; check the user manual.

Add an EBM?

Yes on 9PX, 9SX and 5PX; eaton.com lists no extended battery capability for the 5P1500R and 5P2200.

Lithium-ion for 9PX?

Yes on 9PX G2 lithium variants: factory Eaton only.

Disposal?

SLA: municipal hazardous-waste depot, Call2Recycle, or ship back to us with new cartridge.
