Vertiv Double Conversion Online UPS

What is Vertiv Liebert online UPS?

Online (double-conversion) UPS runs the load permanently from the inverter, utility AC continuously rectified to DC, then re-inverted to clean AC before reaching equipment. Transfer time is effectively zero during a power event and the output sine wave is fully regenerated at all times. It is the usual topology for medical equipment, VoIP PBX, precision laboratory gear, industrial control, and data-centre infrastructure where line-interactive transfer is unacceptable.

Vertiv (formerly Emerson Network Power, sold by Emerson in 2016) sells its single- and small three-phase UPS under the long-running Liebert brand. The Liebert GXT5 covers 500 VA to 20 kVA single-phase online. UPSPLUSBATTERY.CA offers the GXT5 range with matching Liebert Vertiv UPS batteries. For line-interactive equivalents see Vertiv line-interactive UPS. Full Vertiv catalog at Vertiv UPS.

Vertiv Liebert online families

For SMB and mid-enterprise online needs the shortlist is the GXT5 from 1.5 to 10 kVA. The GXT5 Lithium-Ion suits long deployments: Vertiv gives 8 to 10 years for its batteries. For three-phase, ITA2 / NXC / APM2 / EXM cover the full data-centre tier.

How to choose

When online is required

When the load can't tolerate a line-interactive transfer (4 to 6 ms typical on the Vertiv PSI5): medical, VoIP, precision lab, industrial control. When the utility waveform is unusually dirty. Line-interactive vs online UPS.

SLA GXT5 vs Lithium GXT5

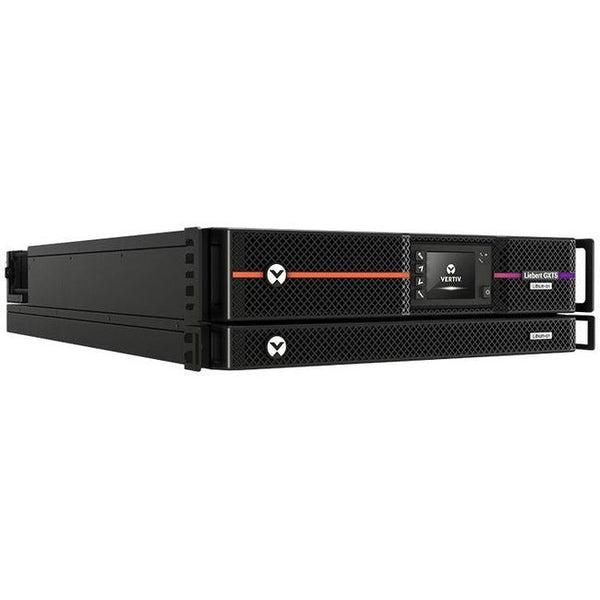

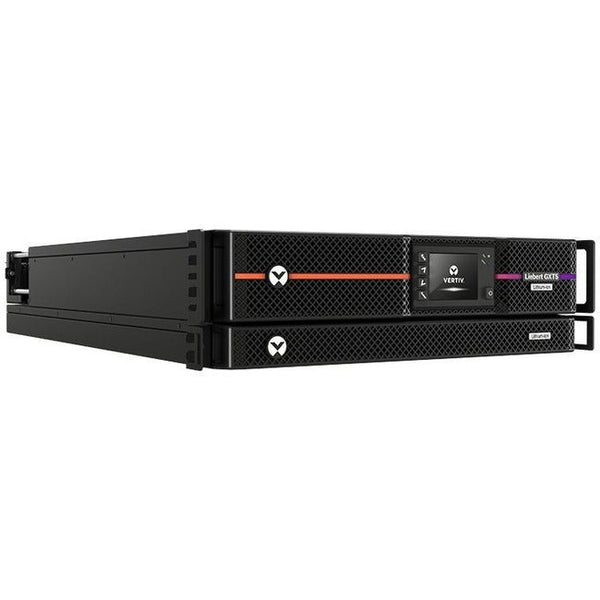

SLA GXT5: 3 to 5 year battery, lower upfront cost. GXT5 Lithium-Ion (LiFePO₄): 8 to 10 year battery per Vertiv and a 5-year warranty on UPS and battery. For long deployments, hot ambient or hard-to-reach racks, lithium means fewer battery replacements. Vertiv GXT5 vs Smart-UPS RT comparison.

Sizing

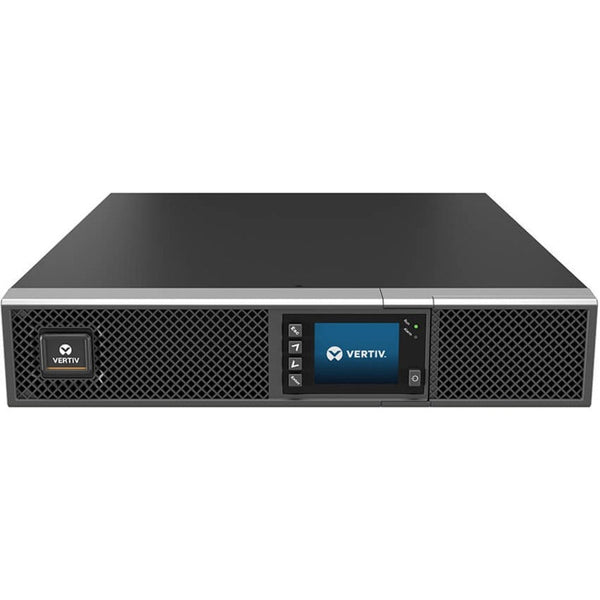

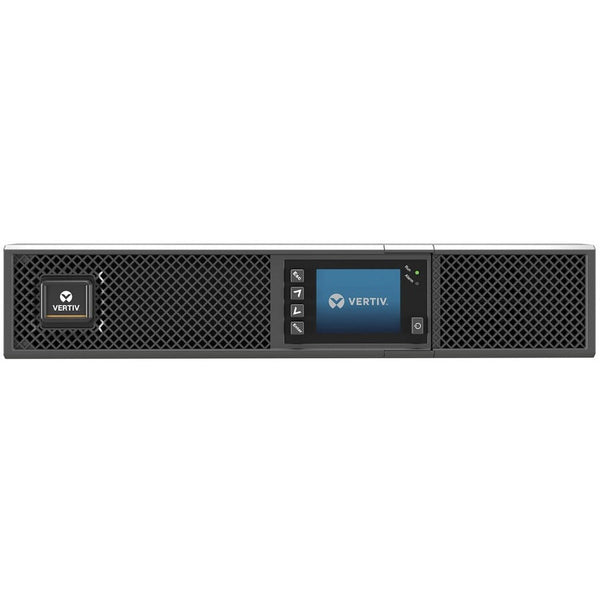

Most GXT5 models are unity PF (GXT5-1500IRT2UXL 1500 VA / 1500 W, GXT5-3000IRT2UXL 3000 VA / 3000 W, GXT5-10KIRT5UXL 10 kVA / 10 kW); some 120 V models run at 0.9 (GXT5-3000LVRT2UXL 3000 VA / 2700 W). Add nameplate watts × 1.25 buffer and pick the UPS whose watt rating exceeds the total. UPS sizing guide.

Spec reference

Vertiv Power Insight software is a free download for fleet monitoring. GXT5 units have a Liebert IntelliSlot port; the RDU101 network card (SNMP, web management, environmental sensors) is factory-installed on select models. GXT5 batteries are hot-swappable and user-replaceable, and GXT5 models support external battery cabinets.

Replacement batteries

GXT5 uses Vertiv replacement battery kits (GXT5-...BATKIT) and GXT5-EBC external battery cabinets. We stock compatible cartridges matched on voltage, capacity, terminals and connectors, with a 1-year UPSPLUSBATTERY warranty. We do not stock lithium batteries for the GXT5 Lithium-Ion; they come in Vertiv VEBCLI-192VRT1U cabinets. See Liebert Vertiv UPS batteries.

Installation and warranty

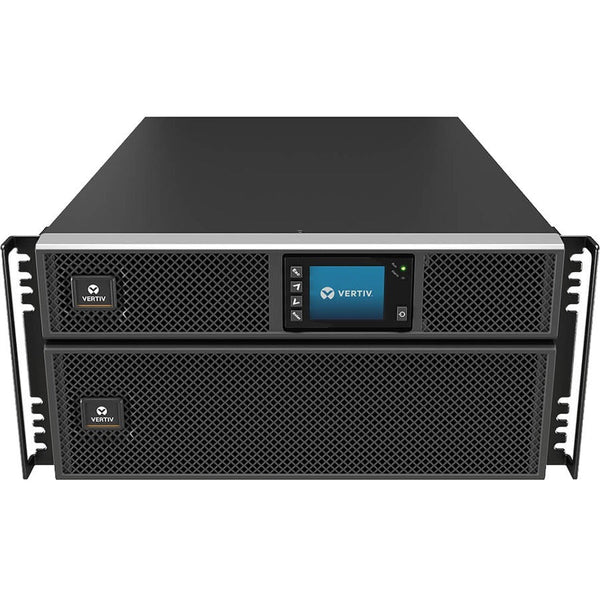

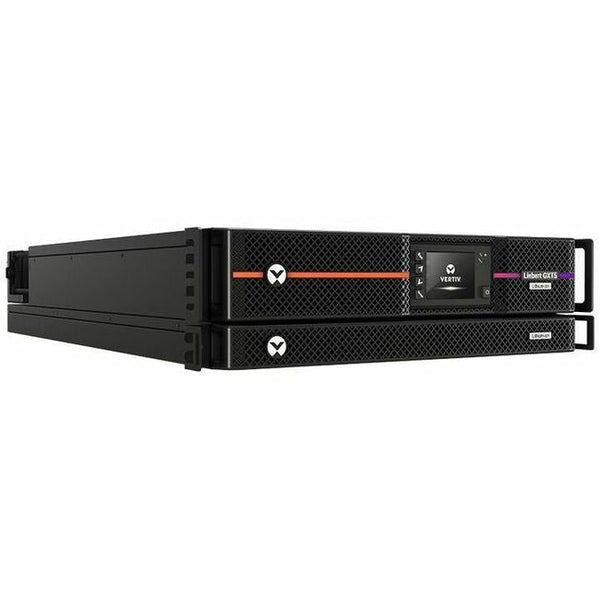

120 V GXT5 models up to 3000 VA plug in (NEMA 5-15P, or L5-30P on the 3000 VA). 230 V GXT5 models from 1500 to 3000 VA use an IEC C14 or C20 input; the 6 and 10 kVA models are hardwired. The GXT5 Lithium-Ion 5 kVA 208 V uses an L6-30P. ITA2, APM2, NXC, EXM are hardwired with site commissioning. Manufacturer warranty: two or three years on lead-acid GXT5 depending on the model; five years on the UPS and battery for GXT5 Lithium-Ion. Coordinated through our Canadian team. Shipped from Canada: see shipping policy for rates and timing.

FAQ

GXT5 vs APC Smart-UPS SRT?

Same online double-conversion topology, similar VA / PF ratings. Vertiv strengths: the three-phase APM2 / EXM family for facility scale and integration with Vertiv software (Power Insight, Trellis). APC strengths: the PowerChute ecosystem on small installations. Compare warranty terms per model. GXT5 vs Smart-UPS RT comparison.

GXT5 Lithium worth it?

For 5+ year deployments, hot ambient or hard-to-reach racks, often yes: Vertiv gives 8 to 10 years for the lithium battery versus 3 to 5 for VRLA, which means fewer battery replacements.

External batteries on GXT5?

Yes. GXT5 supports GXT5-EBC external battery cabinets, and the GXT5 Lithium-Ion takes up to 8 VEBCLI-192VRT1U cabinets. Vertiv's runtime tables give the minutes per cabinet.

Network management?

The RDU101 card in the GXT5's Liebert IntelliSlot port gives SNMP and web management and supports environmental sensors. It works with Vertiv Power Insight.

Three-phase Vertiv?

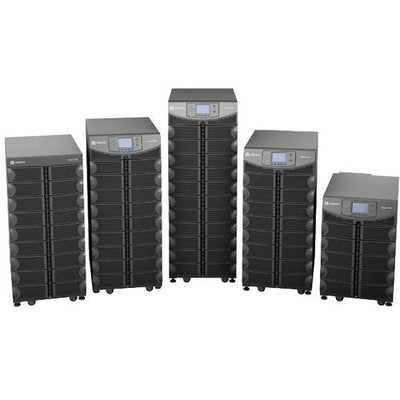

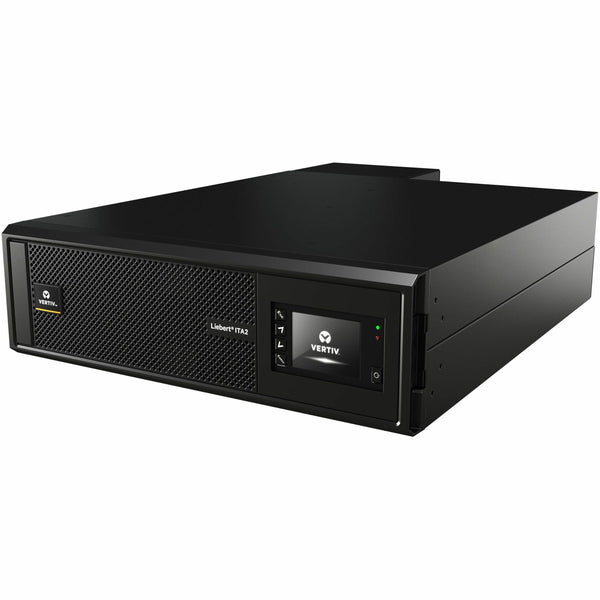

ITA2 5–20 kVA, NXC 10–60 kVA, APM2 30–300 kVA modular, EXM 50–250 kVA. All require commissioning, which Vertiv carries out through its own service organization.

Battery life?

SLA on GXT5: 3 to 5 years climate-controlled. Lithium on GXT5 Lithium-Ion: 8 to 10 years per Vertiv. When to replace UPS battery.

Canadian warranty?

Yes: Vertiv Liebert factory warranty terms cover Canada. RMA coordinated through our Canadian team. Shipped from Canada.
