Manufacturer:Eaton Corporation
Manufacturer Part Number:SV20KS1P0B
Manufacturer Website Address:https://tripplite.eaton.com/
Brand Name:Tripp Lite by Eaton
Product Line:SmartOnline
Product Series:SV
Product Model:SV20KS1P0B

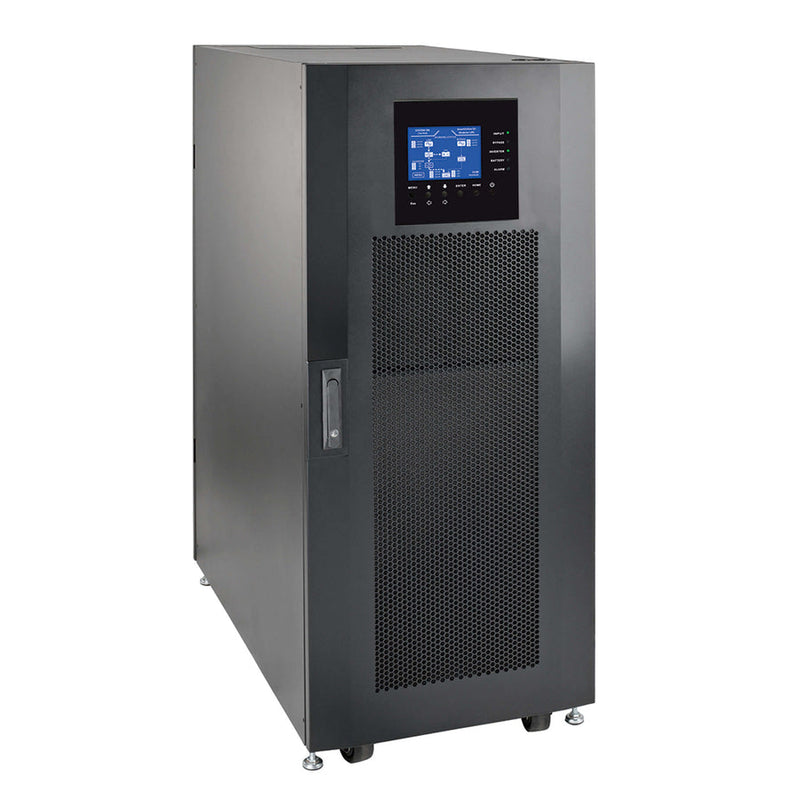

Product Name:SmartOnline SV20KS1P0B 20kVA Tower UPS
Marketing Information:The SV20KS1P0B SmartOnline® SV Series 20kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.
The SV20KS1P0B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and one 20kVA SV20PM power module. Space is included for up to two additional user-installable SV20PM power modules. External ±120VDC battery options, such as BP240V370 or EBP240VXXX series battery cabinets, are available from Tripp Lite for extended runtime.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
With up to 92% efficiency in standard mode and up to 98% efficiency in optional economy mode, this 20kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting.
Features
20kVA 18kW 3-Phase Small-Chassis UPS System
- Supports 208/120V or 220/127V AC 50/60Hz Wye 4-wire plus Earth hardwire input and output wiring
- Dual hardwire input design enables operation from up to 2 power sources
- Network-grade sine-wave AC output with 1% output voltage regulation and less than 2% output total harmonic distortion
- Tested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico) standards
- High 0.9 power factor offers higher kW output than lower-rated competing legacy designs
Pre-Installed WEBCARDLX Network Interface
- Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH
- Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
- Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status
- No Java required
Modular, Scalable Design for Maximum Flexibility
- Modular configuration with hot-swappable power and battery modules enables easy, fast maintenance with zero downtime
- Open slots for up to 2 additional 20kVA SV20PM power modules accommodate increased capacity up to 60kVA (or 40kVA with N+1 fault tolerance)
- External battery pack options available for even more extended runtime
- Supports external ±120VDC battery options for extended runtimes
Optional Economy Mode
- Up to 98% efficient in optional economy mode to lower operating and cooling costs
Wide Input/Narrow Output Voltage Operating Range
- Enables full continuous online operation during brownouts as low as 121V and overvoltages up to 253V
- Regulates output voltage within 1% of the selected nominal output voltage in on-line double-conversion mode
Advanced IGBT Inverter with Digital Signal Processor (DSP) Technology
- Provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize generator systems relative to UPS capacity
| AVR |
Yes |
| Plug/Connector Type |
Hardwired |
| Receptacle Type |
Hardwire (3P + N + E) |
| Transfer Time |
0 ns |
| EMI/RFI Noise Filter |
Yes |
| Phase |
Three Phase |
| Energy Saving |
Green Energy-Saving |
| Application/Usage |
Critical IT System |
| Load Capacity (VA) |
20 kVA |
| Input Voltage |
- 120 V AC
- 127 V AC
- 208 V AC
- 220 V AC
|
| Output Voltage |
- 120 V AC
- 208 V AC
- 127 V AC
- 220 V AC
|
| Input Frequency |
70 Hz |
| Output Frequency |
60 Hz |
| Waveform Type |
Pure Sine Wave |
| Surge Energy Rating |
2496 J |
| Network Management |
SNMP/HTTP Remote Monitoring |
| Alarm |
- UPS Alarm
- Power Off
- Power On
- Battery Mode
- Low Battery
- UPS Fault
|
| Status Indicators |
Front Panel LCD Display: - Complete operating status display
- Setting and selection options for all UPS functions
Front panel LED indicators: - Input (green)
- Bypass (amber)
- Inverter (green)
- Battery (red)
- Alarm (red)
|
| Serial Port |
Yes |
| EPO Port |
Yes |
| DC System Voltage |
120 V DC |
| Typical Battery Recharge Time |
4.60 Hour |
| Maximum Operating Temperature |
104°F (40°C) |
| Storage Temperature |
5°F (-15°C) - 140°F (60°C) |
| Maximum Operating Elevation |
3280.84 ft (1000000 mm) |
| Storage Relative Humidity |
0% - 95% |
| Sound Emission (A-Weighted) |
73 dB(A) |
| Thermal Dissipation |
5766 BTU/h |
| Form Factor |
Tower |
| Height |
58.07" (1474.98 mm) |
| Width |
23.62" (599.95 mm) |
| Depth |
43.30" (1099.82 mm) |
| Weight (Approximate) |
648 lb (293927.86 g) |
| Package Contents |
- SmartOnline SV20KS1P0B 20kVA Tower UPS
- Pre-installed WEBCARDLX Network Interface
- 1 x SV20PM 20kVA Power Module (Shipped Separately)
- Owner's Manual
- DB9 Cable
|
| Country of Origin |
China |
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| Limited Warranty |
1 Year |
