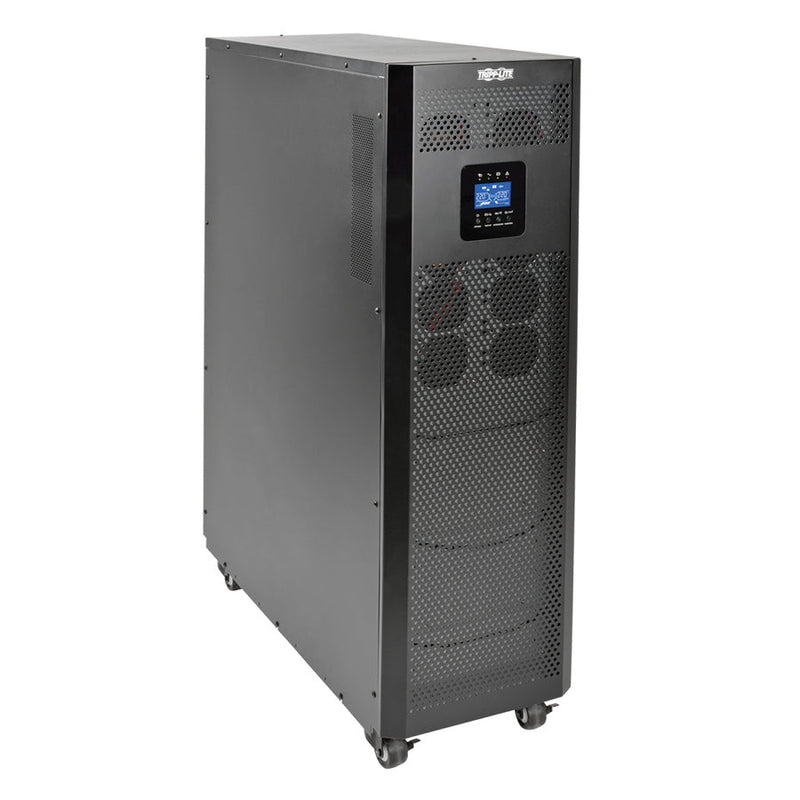

Tripp Lite by Eaton SmartOnline SVT30KX 30kVA Tower UPS - SVT30KX - Double Conversion Online UPS, 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC, Tower, 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC, Hardwired, SmartOnline SVTX, 9.60

Tripp Lite by Eaton SmartOnline SVT30KX 30kVA Tower UPS - SVT30KX - Double Conversion Online UPS, 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC, Tower, 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC, Hardwired, SmartOnline SVTX, 9.60-UPSPLUSBATTERY

Tripp Lite by Eaton SmartOnline SVT30KX 30kVA Tower UPS - SVT30KX - Double Conversion Online UPS, 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC, Tower, 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC, Hardwired, SmartOnline SVTX, 9.60

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SVT30KX
  • Input Voltage: 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC
  • Form Factor: Tower
  • Plug/Connector Type: Hardwired
  • Product Family: SmartOnline SVTX
  • Backup/Run Time (Half Load): 9.60 Minute
  • Backup/Run Time (Full Load): 4.20 Minute
  • Load Capacity: 30 VA

    • Marketing Information: The SVT30KX SmartOnline® SVTX Series 3-Phase 380/400/415V 30kVA 27kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It's recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.

    The SVT30KX's Voltage and Frequency Independent(VFI) design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.

    IGBT inverter technology produces output power with less than 2% total harmonic distortion(THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

    Managing the SVT30KX is simplified through the interactive front-panel LCD interface, which displays critical operating conditions and diagnostic data, such as load levels, available runtime, alarm status, battery charge, and voltage and frequency values. Four LEDs indicate bypass, line, battery and fault modes. A serial port allows connection to Tripp Lite's free local shutdown agent. A built-in card slot supports WEBCARDLX or RELAYCARDSV for network interface and remote monitoring and control. The SVT30KX's reduced size and small footprint save valuable space.
Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SVT30KX
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Series:SVTX
  • Product Model:SVT30KX
  • Product Name:SmartOnline SVT30KX 30kVA Tower UPS

    • Marketing Information:The SVT30KX SmartOnline® SVTX Series 3-Phase 380/400/415V 30kVA 27kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It's recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.

    The SVT30KX's Voltage and Frequency Independent(VFI) design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.

    IGBT inverter technology produces output power with less than 2% total harmonic distortion(THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.

    Managing the SVT30KX is simplified through the interactive front-panel LCD interface, which displays critical operating conditions and diagnostic data, such as load levels, available runtime, alarm status, battery charge, and voltage and frequency values. Four LEDs indicate bypass, line, battery and fault modes. A serial port allows connection to Tripp Lite's free local shutdown agent. A built-in card slot supports WEBCARDLX or RELAYCARDSV for network interface and remote monitoring and control. The SVT30KX's reduced size and small footprint save valuable space.
    PRODUCT SPECIFICATIONS
    Plug/Connector Type Hardwired
    Receptacle Type Hardwired
    Load Capacity (VA) 30 VA
    Input Voltage
    • 220 V AC
    • 230 V AC
    • 240 V AC
    • 380 V AC
    • 400 V AC
    • 415 V AC
    Output Voltage
    • 220 V AC
    • 230 V AC
    • 240 V AC
    • 380 V AC
    • 400 V AC
    • 415 V AC
    Network Management SNMP/HTTP Remote Monitoring
    Backup/Run Time (Full Load) 4.20 Minute
    Backup/Run Time (Half Load) 9.60 Minute
    Form Factor Tower
    Height 39.29" (998 mm)
    Width 32.01" (813 mm)
    Depth 11.81" (300 mm)
    Weight (Approximate) 515 lb (233600.07 g)
    Package Contents
    • SmartOnline SVT30KX 30kVA Tower UPS
    • 2 x RS-232 Cables
    • 6-pin Current Sharing Cable
    • Owner's Manual
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 1 Year

    Call us if more information required.
