Product Features:

Manufacturer:Eaton Corporation

Manufacturer Part Number:SVX60KS2P3B

Manufacturer Website Address:https://tripplite.eaton.com/

Brand Name:Tripp Lite by Eaton

Product Line:SmartOnline

Product Series:SVX

Product Model:SVX60KS2P3B

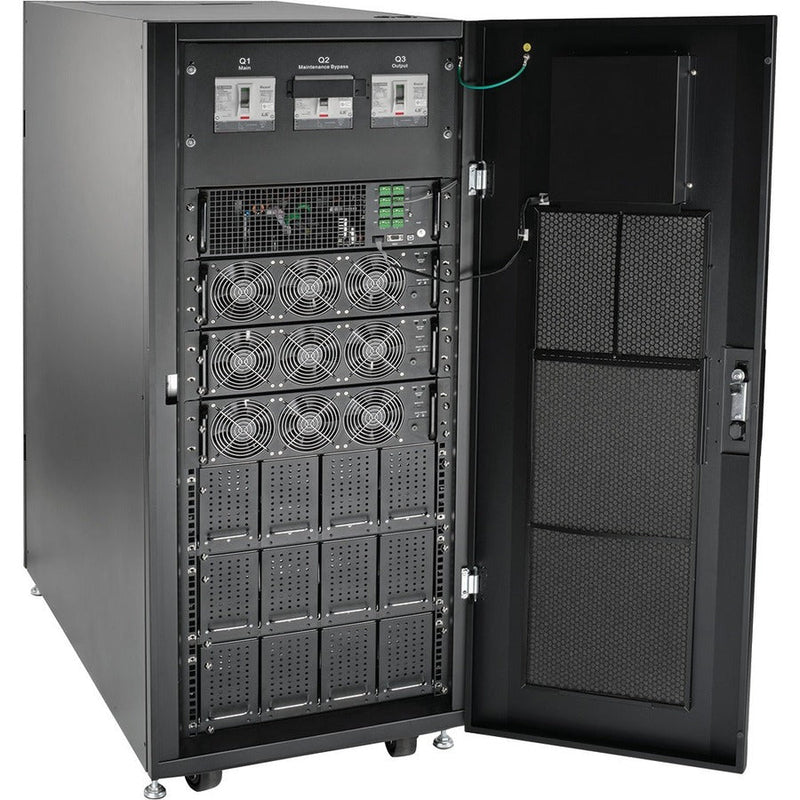

Product Name:SmartOnline SVX60KS2P3B 60kVA Tower UPS

Marketing Information:Tripp Lite's SVX60KS2P3B 60kVA/60kW SmartOnline® Small-Frame UPS includes installed input, bypass and output breakers, a static transfer switch (STS) and 2 included 30kVA SVX30PM power modules. This system supports the addition of 1 additional user-installable SVX30PM power module to accommodate increased capacity to 90kW (or 60kW with N+1). Three internal battery modules are included to fully load internal battery compartments. Additional runtime is available using any number of compatible ±240VDC external battery packs (sold separately).

Featuring a modular, scalable design with high-efficiency voltage and frequency independent/VFI operation, Tripp Lite's SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online mode and over 99% efficient in optional economy mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8 - 0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual-input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault-tolerance is configurable anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure.

PRODUCT SPECIFICATIONS
EMI/RFI Noise Filter	Yes
Phase	Three Phase
Energy Saving	Greater than 95% efficiency - GREEN UPS; High efficiency economy mode operation; Schedulable daily hours of economy mode operation
Application/Usage	IT Infrastructure Network
Load Capacity (VA)	60 kVA
Output Voltage	380 V AC 400 V AC 415 V AC
Input Frequency	70 Hz
Output Frequency	60 Hz
Waveform Type	Pure Sine Wave
Network Management	SNMP Manageable
Alarm	Battery Mode Low Battery UPS Alarm UPS Fault Power Off Power On
Status Indicators	Combination LCD/LED Display Audible Alarms
Serial Port	Yes
EPO Port	Yes
DC System Voltage	240 V DC
Battery Characteristics	Hot-swappable
Backup/Run Time (Full Load)	3.50 Minute
Backup/Run Time (Half Load)	7.50 Minute
Replaceable Battery	Yes
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 140°F (60°C)
Maximum Operating Elevation	3280.84 ft (1000000 mm)
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	73 dB(A)
Thermal Dissipation	11458 BTU/h
Form Factor	Tower
Height	58.07" (1475 mm)
Width	23.62" (600 mm)
Depth	43.31" (1100 mm)
Weight (Approximate)	1411.99 lb (640470 g)
Country of Origin	China
