| UPC | 0767041026665 |
| 5U Rack/Tower - 5.50 Minute Stand-by - 230 V AC Input - 208 V AC Output - Single Phase - Serial Port - USB - 2 x IEC 60320 C19, 6 x IEC 60320 C13 | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | GXT5-6KL630RT5UXLN |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Series: | GXT |

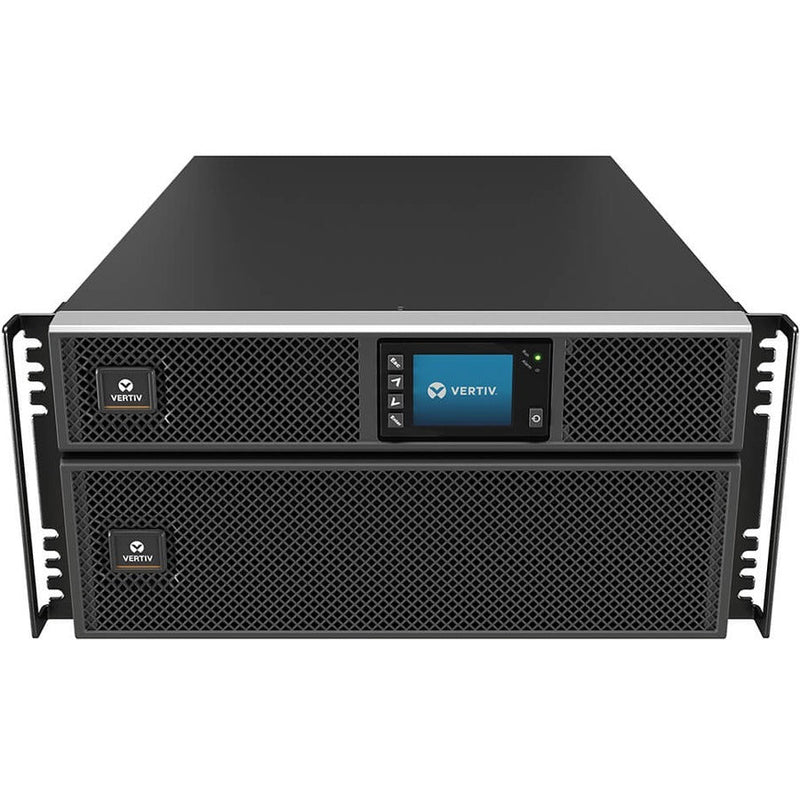

| Product Name: | GXT5 6k L630 UPS |
| Marketing Information: | The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 4900VA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has an optional Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. |
| Packaged Quantity: | 1 |
| Product Type: | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Bypass Switch: |
|
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns |
| Phase: | Single Phase |
| Application/Usage: |
|
| Power Description | |
| Load Capacity (VA): | 4.90 kVA |
| Load Capacity (Watt): | 4.90 kW |
| Input Voltage: | 230 V AC |
| Output Voltage: | 208 V AC |
| Input Frequency: | 50 Hz |
| Waveform Type: | Pure Sine Wave |
| Utility (AC) Mode Overload: |
|
| Controls/Indicators | |
| Status Indicators: |
LED/Full Color Graphic LCD:
|
| Interfaces/Ports | |
| Serial Port: | Yes |
| VGA: | No |
| Modem (RJ-11): | No |
| Network (RJ-45): | Yes |
| USB: | Yes |
| Total Number of Expansion Slots: | 1 |
| Battery Information | |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5.50 Minute |
| Backup/Run Time (Half Load): | 14.50 Minute |
| Number of External Battery Cabinets: | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load): | 9.50 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load): | 25.50 Minute |
| Hot Swappable: | Yes |
| Environmental Conditions | |
| Environmental Sensors: |
|
| Physical Characteristics | |
| Rack Height: | 5U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 67.63 kg |
| Miscellaneous | |
| Package Contents: |
|
| Additional Information: |
|
| Energy Star: | Yes |
| Country of Origin: | China |
| TAA Compliant: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
| Warranty | |
| Limited Warranty: | 3 Year |
