| UPC | 0767041026252 |
| 2U Rack/Tower - 3 Hour Recharge - 8.50 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | GXT5-750LVRT2UXL |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Series: | GXT |

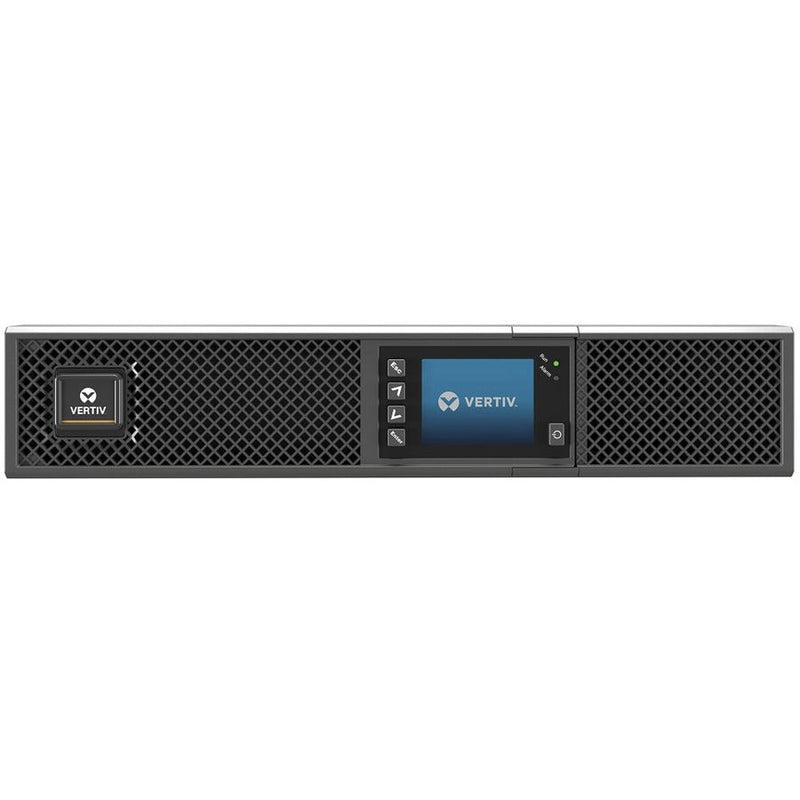

| Product Name: | GXT5 750VA 120V UPS |
| Marketing Information: | The Vertiv Liebert GXT5 UPS, with a capacity of 750VA/750W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 6 x NEMA 5-15R |
| Emergency Power OFF: | Yes |
| Cord Length: | 10 ft |
| Transfer Time: | 0 ns |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 750 VA |
| Load Capacity (Watt): | 750 W |
| Input Voltage: | 120 V AC |
| Input Voltage Range: | 60 V AC - 150 V AC |
| Input Current: | 9 A |
| Output Voltage: | 120 V AC |
| Output Current: | 6.25 A |
| Input Frequency: | 70 Hz |
| Waveform Type: | Sine Wave |
| Circuit Breaker: | Yes |
| User Selectable Output: | Typical 120V User Selectable Output: 110/115/120/125VAC (user-configurable); ±3% |
| Utility (AC) Mode Overload: |
|
Controls/Indicators |
| Status Indicators: | Color LCD | Interfaces/Ports |
| Serial Port: | Yes |
| VGA: | No |
| Modem (RJ-11): | No |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| Number of Batteries: | 3 |
| Battery Characteristics: | Valve-regulated, Non-spillable |
| Battery Chemistry: | Lead Acid |
| Battery Size: | 12V |
| Backup/Run Time (Full Load): | 8.50 Minute |
| Backup/Run Time (Half Load): | 21.50 Minute |
| Number of External Battery Cabinets: | 1 |
| Backup/Run Time With External Battery Cabinet (Full Load): | 41 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load): | 1.47 Hour |
| Battery Life: | 5 Year |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Pluggable: | Yes |
| Hot Swappable: | Yes | Environmental Conditions |
| Environmental Sensors: |
|
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | -4°F (-20°C) - 140°F (60°C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation: | 49212.60 ft (15000000 mm) | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.40" (86.36 mm) |
| Width: | 16.90" (429.26 mm) |
| Depth: | 15.70" (398.78 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 16.78 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
|
| Certifications & Standards: |
|
| Software Included: | Free Download - Power Insight 2.2 |
| Assembly Required: | No |
| Energy Star: | Yes |
| Country of Origin: | China |
| TAA Compliant: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
