| UPC | 0812105028717 |
| 1U Rack-mountable - AVR - 6 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Single Phase - 5 x NEMA 5-15R | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | PSI5-1500RM1201U |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Series: | PSI5 |
| Product Model: | PSI |
| Product Name: | PSI5-1500RM1201U UPS |
| Marketing Information: |

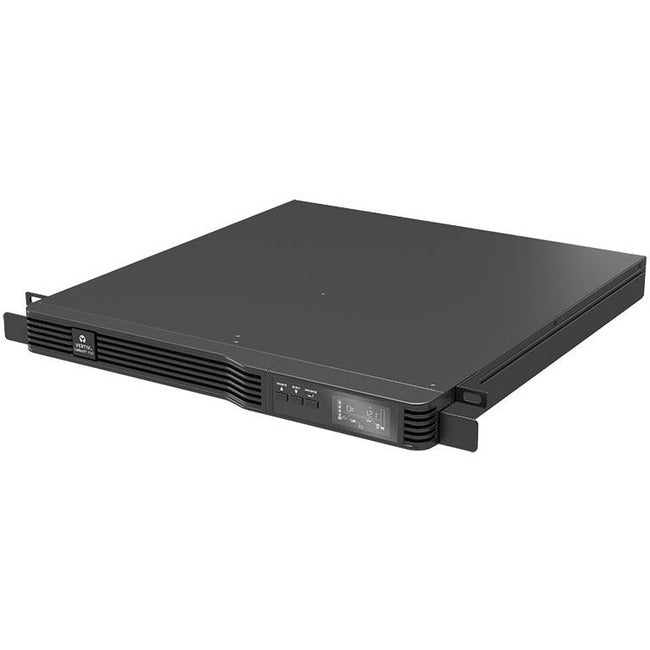

The Vertiv Liebert PSI5 1440VA UPS is designed to protect and extend the life of your electronic devices in school, home and office. This 1U rack mount UPS offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. Voltage regulation is from 83 to 159 VAC without using the battery. With advanced pure sine wave output, this line interactive UPS ensures availability of critical IT applications like network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. It takes less than 6 milliseconds transfer time to battery. Add an optional Vertiv Liebert Unity communication card and remotely monitor up to 50 UPS systems through the free Vertiv Trellis Power Insight Application. It has a 2-year Vertiv UPS warranty with optional extensions for up to 5 years total coverage. |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 5 x NEMA 5-15R |
| Transfer Time: | 4 ms |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.50 kVA |
| Load Capacity (Watt): | 1.35 kW |
| Input Voltage: | 120 V AC |
| Input Voltage Range: | 75 V AC - 146 V AC |
| Output Voltage: |
|
| Input Frequency: | 65 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave | Interfaces/Ports |
| Serial Port: | No |
| Network (RJ-45): | No |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 6 V DC |
| Number of Batteries: | 6 |
| Battery Characteristics: | Valve-regulated, Non-spillable |
| Battery Chemistry: | Lead Acid |
| Battery Size: | 6V |
| Battery Capacity: | 9000 mAh |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 14 Minute |
| Typical Battery Recharge Time: | 6 Hour |
| Hot Swappable: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104°F (40°C) |
| Storage Temperature: | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Operating Humidity: | 20% - 90% |
| Storage Relative Humidity: | 20% - 90% | Physical Characteristics |
| Height: | 1.70" (43.18 mm) |
| Width: | 17.20" (436.88 mm) |
| Depth: | 22.40" (568.96 mm) |
| Rack Height: | 1U |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 20.68 kg | Miscellaneous |
| Package Contents: |
|
| Software Included: | Power Insight 2.2 |
| Energy Star: | No |
| Country of Origin: | China |
| TAA Compliant: | No |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
