Manufacturer:Eaton Corporation
Manufacturer Part Number:OMNIVS1500XL
Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name:Tripp Lite by Eaton
Product Line:Omni
Product Series:VS

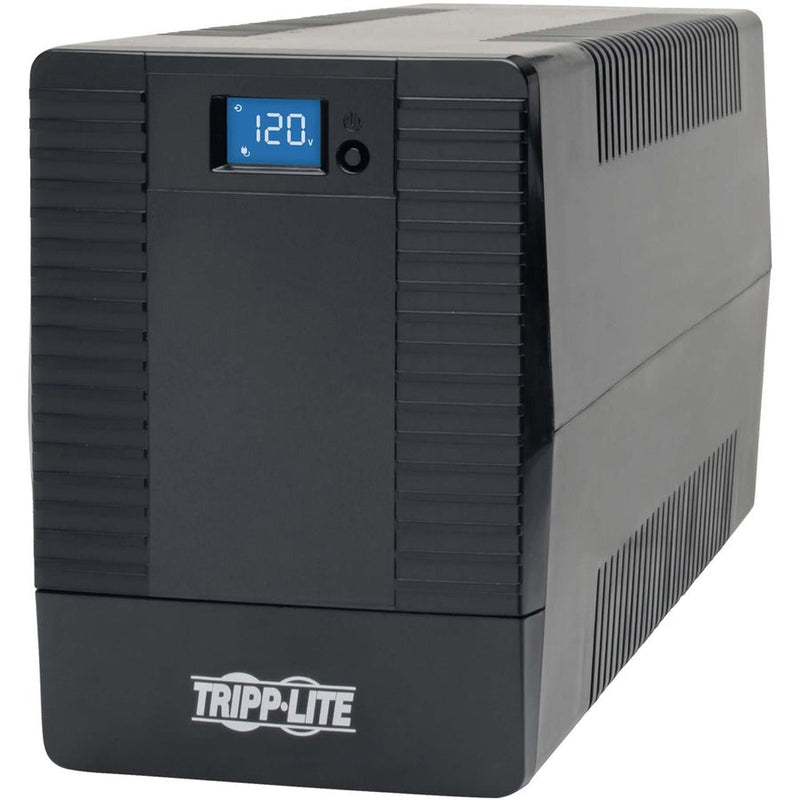

Product Name:8-Outlet UPS Power Protection System
Marketing Information:1440VA/940W/120V Battery Backup for PC Networks, Security Systems or Digital SignageThis OmniVS® line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable electronics or destroy data. The OMNIVS1500XL is ideal protection for your home office, media center or commerce components, including gaming PCs, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems, small business phone systems and digital signage equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable battery module allows you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Extra runtime is available by connecting one optional extended battery module (BP24V15RT2U, sold separately).
NEMA 5-15R Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, surge protection and voltage regulation for your computer, monitor and other crucial components. The other two 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The OMNIVS1500XL maintains regulated 120V nominal output during brownouts and overvoltages from 89V to 145V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
Home-Friendly Silent Alarm and Touchscreen LCD Keep You Informed 24/7
The UPS remains silent in both line and battery backup modes. The alarm sounds only to report low battery, battery replace, overload and fault condition. The touchscreen LCD offers five screens of UPS and site power information when the UPS is operating in either on-line or battery power mode. It displays vital voltage, frequency, load and battery data, as well as critical fault status.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. Cables are included.
Compact Housing Compatible with Easy Desktop Installation
The space-saving ABS tower fits on a desktop, shelf or any other flat surface convenient to your workstation or home theater
| Plug/Connector Type |
NEMA 5-15P |
| Receptacle Type |
NEMA 5-15R |
| Receptacle Detail |
- 2 x NEMA 5-15R
- 6 x NEMA 5-15R
|
| Dataline Protection |
RJ-45 |
| Cord Length |
6 ft (1.83 m) |
| Transfer Time |
4 ms |
| Load Capacity (VA) |
1.50 kVA |
| Load Capacity (Watt) |
940 W |
| Input Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Surge Energy Rating |
480 J |
| Alarm |
On Battery |
| Status Indicators |
4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation |
| USB |
Yes |
| Backup/Run Time (Full Load) |
5 Minute |
| Backup/Run Time (Half Load) |
14 Minute |
| Battery Life |
6 Year |
| Typical Battery Recharge Time |
4 Hour |
| Hot Swappable |
Yes |
| Maximum Operating Temperature |
122°F (50°C) |
| Color Family |
Black |
| Product Color |
Black |
| Height |
11.75" (298.45 mm) |
| Width |
7.25" (184.15 mm) |
| Depth |
7.50" (190.50 mm) |
| Form Factor |
Tower |
| Weight (Approximate) |
32.20 lb (14605.67 g) |
| Package Contents |
- OMNIVS1500XL Line Interactive UPS
- USB and telephone cable
- User manual with warranty information
|
| Additional Information |
- OMNIVS1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
- Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss
- Regulates brownouts as low as 75 and overvoltages to 147V back to usable 120V nominal levels without using battery power
- 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets
- USB port and cable enables UPS monitoring and unattended shutdown in the case of extended power failure
- PowerAlert software available via free download from www.tripplite.com
- Dataline surge suppression protects standard dialup/DSL or ethernet line connection
- Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
- 1500VA power handling ability supports a variety of sensitive electronic equipment
- 5 minutes full load runtime (1500VA), 14 minutes half load runtime (750VA)
- Runtime is further expandable with the addition of BP24V14 external battery pack
- Supports hot swappable battery replacement via built-in access panel
-
- 200,000 connected equipment insurance (USA & Canada Only)
- 2 year warranty
|
| Certifications & Standards |
- UL1778 (USA)
- cUL (Canada)
- FCC Class B (emissions)
- NOM (Mexico)
- FCC Part 68 / Industry Canada (telecommunications)
|
| Recycled |
No |
| Assembly Required |
No |
| Country of Origin |
China |
| Limited Warranty |
3 Year |
| Additional Warranty Information |
- 200,000 connected equipment insurance (USA, Puerto Rico & Canada Only)
|
