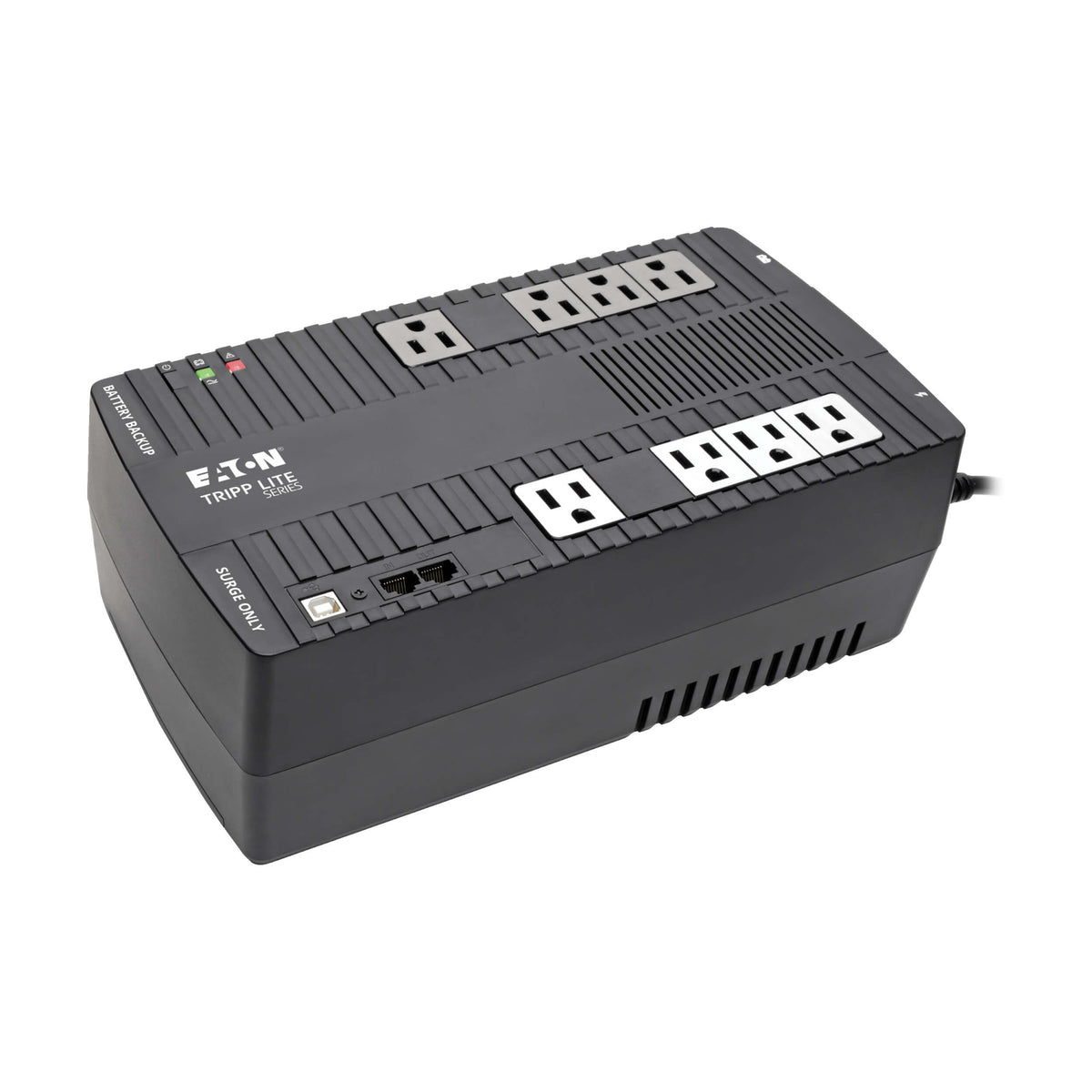

Tripp Lite by Eaton Desktop/Wall Mount Battery Backup Outlets - AVR550U - Line-interactive UPS, 120 V AC, Ultra-compact Desktop/Tower/Wall Mount, Pulse-width Modulated Sine Wave, 110 V AC,115 V AC,120 V AC, NEMA 5-15P, AVR, 9 Minute, 2 Minute, 550

Tripp Lite by Eaton Desktop/Wall Mount Battery Backup Outlets - AVR550U - Line-interactive UPS, 120 V AC, Ultra-compact Desktop/Tower/Wall Mount, Pulse-width Modulated Sine Wave, 110 V AC,115 V AC,120 V AC, NEMA 5-15P, AVR, 9 Minute, 2 Minute, 550-UPSPLUSBATTERY

Tripp Lite by Eaton Desktop/Wall Mount Battery Backup Outlets - AVR550U - Line-interactive UPS, 120 V AC, Ultra-compact Desktop/Tower/Wall Mount, Pulse-width Modulated Sine Wave, 110 V AC,115 V AC,120 V AC, NEMA 5-15P, AVR, 9 Minute, 2 Minute, 550

/
  • Delivery across Canada and USA
  • Low stock - 1 item left
  • Inventory on the way
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Line-interactive UPS
  • Manufacturer Part Number: AVR550U
  • Input Voltage: 120 V AC
  • Form Factor: Ultra-compact Desktop/Tower/Wall Mount
  • Waveform Type: Pulse-width Modulated Sine Wave
  • Plug/Connector Type: NEMA 5-15P
  • Product Family: AVR
  • Backup/Run Time (Half Load): 9 Minute
  • Backup/Run Time (Full Load): 2 Minute
  • Load Capacity: 550 VA/300 W

    • Marketing Information:

    AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

    More from the Manufacturer

Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:AVR550U
  • Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica
  • Brand Name:Tripp Lite by Eaton
  • Product Series:AVR
  • Product Model:AVR550U
  • Product Name:Desktop/Wall Mount Battery Backup Outlets

    • Marketing Information:AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

    More from the Manufacturer



    PRODUCT SPECIFICATIONS
    AVR Yes
    AVR Range Boost +18% / Buck -15%
    Plug/Connector Type NEMA 5-15P
    Receptacle Type NEMA 5-15R
    Receptacle Detail 8 x NEMA 5-15R
    Number of Battery & Surge Outlets 4
    Number of Surge-only Outlets 4
    Dataline Protection RJ-11
    Cord Length 6 ft (1.83 m)
    Transfer Time 6 ms
    EMI/RFI Noise Filter Yes
    Phase Single Phase
    Energy Saving Greater than 95% efficiency - GREEN UPS
    Application/Usage
    • Printer
    • Speaker
    • Computer
    • Router
    • TV
    • Blu-ray Player
    • Gaming Console
    • ATM
    • Security System
    • Digital Signage
    • Media Center
    • Home/Office
    • Home Theater
    Load Capacity (VA) 550 VA
    Load Capacity (Watt) 300 W
    Input Voltage 120 V AC
    Input Current 12 A
    Output Voltage
    • 110 V AC
    • 115 V AC
    • 120 V AC
    Input Frequency 60 Hz
    Output Frequency 60 Hz
    Waveform Type Pulse-width Modulated Sine Wave
    Surge Energy Rating 316 J
    Alarm
    • Battery Backup
    • Low Battery
    • Overload
    • Replace Battery
    • Fault
    Status Indicators

    2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
    USB Yes
    USB (HID Compliant) Port Yes
    DC System Voltage 12 V DC
    Backup/Run Time (Full Load) 2 Minute
    Backup/Run Time (Half Load) 9 Minute
    Battery Life 6 Year
    Typical Battery Recharge Time 8 Hour
    Replaceable Battery Yes
    Maximum Operating Temperature 104°F (40°C)
    Storage Temperature 5°F (-15°C) - 113°F (45°C)
    Maximum Operating Elevation 10000 ft (3048000 mm)
    Color Family Black
    Product Color Black
    Height 4.33" (109.98 mm)
    Width 6.40" (162.56 mm)
    Depth 12" (304.80 mm)
    Form Factor Ultra-compact Desktop/Tower/Wall Mount
    Weight (Approximate) 13.69 lb (6210 g)
    Package Contents
    • Desktop/Wall Mount Battery Backup Outlets
    • USB cable
    • Owner's manual
    Additional Information
    • Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher
    • High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less
    • Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
    • Switches: Combination power off / on / self-test push button switch
    • Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices.
    • WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
    • Supports entry-level PC systems up to 17 minutes during blackout conditions
    • Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation
    • 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets
    • 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power
    • 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support
    • HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
    Certifications & Standards
    • Tested to UL1778 (USA)
    • cUL1778 (Canada)
    • NOM (Mexico)
    • FCC Class B (Emissions)
    • FCC Part 68
    • Industry Canada (Telecommunications)
    Software Included PowerAlert UPS monitoring software
    Recycled No
    Assembly Required No
    Country of Origin Vietnam
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 3 Year Lifetime
    Additional Warranty Information

    • 2-year warranty.

    • 100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
