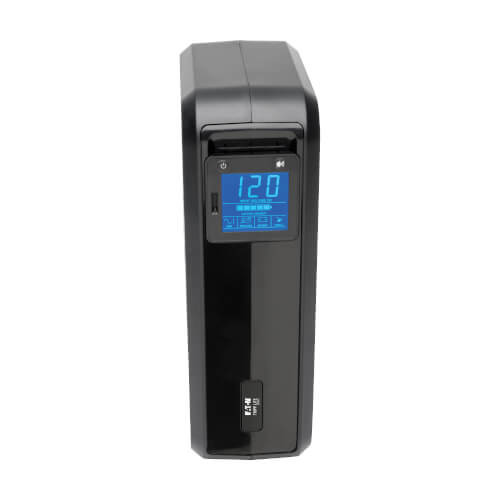

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: SMART1000LCD
- Input Voltage: 120 V AC
- Form Factor: Tower
- Rack Height: 2U
- Plug/Connector Type: NEMA 5-15P
- Product Family: SmartPro
- Backup/Run Time (Half Load): 10 Minute
- Backup/Run Time (Full Load): 3 Minute
- Load Capacity: 1 kVA/500 W
Marketing Information:
Line-Interactive Digital UPS System offers voltage regulation, surge suppression and battery support for personal computers, network workstations and more. Internal UPS circuits support entry-level PCs for 60 minutes or individual VCR/DVR for 3 hours during power failure. AVR circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Includes 4 battery-supported outlets, plus 4 surge suppression-only outlets. USB port enables optional unattended system shutdown without data loss; cable included. HID-compliant USB interface enables integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Built-in single-line RJ-11 phone suppression jacks protect modem and satellite receiver with standard dialup/DSL phone connection. 2.2 GHz coaxial jacks protect against surges on CATV, satellite or broadcast antenna connections. 3 minute battery runtime with full load of 1000VA/500W and 10 minutes with half load of 500VA/250W.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Dataline Protection | RJ-11 |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 500 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1038 J |
| USB | Yes |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 8 Hour |
| Maximum Operating Temperature | 122 °F (50 °C) |
| Color Family | Black |
| Product Color | Black |
| Height | 10.43" (265 mm) |
| Width | 15.55" (395 mm) |
| Depth | 4.84" (123 mm) |
| Rack Height | 2U |
| Form Factor | Tower |
| Weight (Approximate) | 14.60 lb (6622.45 g) |
| Package Contents |
|
| Additional Information |
|
| Certifications & Standards |
|
| Recycled | No |
| Assembly Required | No |
| Country of Origin | China |
| Limited Warranty | 3 Year |
| Additional Warranty Information |
|
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Compare with alternatives
The SMART1000LCD side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power S71-1000 1000 VA / 600 W Line-Interactive UPS, 120 V
Compared with SMART1000LCD Spec SMART1000LCD Xtreme Power Capacity 1000 VA / 500 W 1000 VA / 600 W Topology Line-Interactive Line-Interactive Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15R (4 on battery) 6 × NEMA 5-15R Runtime, half load 10 min 2 min Differences
- Larger unit: 600 W instead of 500 W
$362.40 -
Xtreme Power Conversion
Xtreme Power T91-700 700 VA / 700 W Online UPS, 120 V
Compared with SMART1000LCD Spec SMART1000LCD Xtreme Power Capacity 1000 VA / 500 W 700 VA / 700 W Topology Line-Interactive Online Double-Conversion Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15R (4 on battery) 6 × NEMA 5-15R Runtime, half load 10 min 16 min Differences
- Lower VA rating: 700 VA instead of 1000 VA
- Online double-conversion, a step up from line-interactive
- Larger unit: 700 W instead of 500 W
$958.94
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
