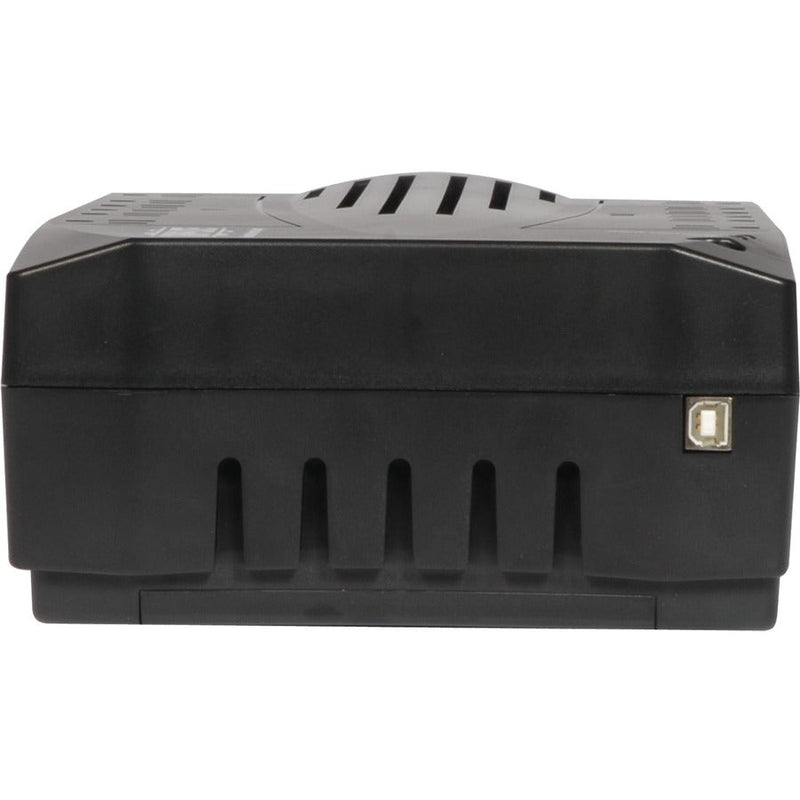

Tripp Lite by Eaton AVR 900VA Desktop UPS - AVR900U - Line-interactive UPS, 120 V AC, Ultra-compact Desktop/Tower/Wall Mount, Pulse-width Modulated Sine Wave, 110 V AC,115 V AC,120 V AC, NEMA 5-15P, AVR, 10 Minute, 2.70 Minute, 900 VA/480 W

Tripp Lite by Eaton AVR 900VA Desktop UPS - AVR900U - Line-interactive UPS, 120 V AC, Ultra-compact Desktop/Tower/Wall Mount, Pulse-width Modulated Sine Wave, 110 V AC,115 V AC,120 V AC, NEMA 5-15P, AVR, 10 Minute, 2.70 Minute, 900 VA/480 W-UPSPLUSBATTERY

Tripp Lite by Eaton AVR 900VA Desktop UPS - AVR900U - Line-interactive UPS, 120 V AC, Ultra-compact Desktop/Tower/Wall Mount, Pulse-width Modulated Sine Wave, 110 V AC,115 V AC,120 V AC, NEMA 5-15P, AVR, 10 Minute, 2.70 Minute, 900 VA/480 W

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Line-interactive UPS
  • Manufacturer Part Number: AVR900U
  • Input Voltage: 120 V AC
  • Form Factor: Ultra-compact Desktop/Tower/Wall Mount
  • Waveform Type: Pulse-width Modulated Sine Wave
  • Plug/Connector Type: NEMA 5-15P
  • Product Family: AVR
  • Backup/Run Time (Half Load): 10 Minute
  • Backup/Run Time (Full Load): 2.70 Minute
  • Load Capacity: 900 VA/480 W

    • Marketing Information:

    AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:AVR900U
  • Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica
  • Brand Name:Tripp Lite by Eaton
  • Product Series:AVR
  • Product Name:AVR 900VA Desktop UPS

    • Marketing Information:

    AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.



    PRODUCT SPECIFICATIONS
    AVR Yes
    AVR Range Boost +18% / Buck -15%
    Plug/Connector Type NEMA 5-15P
    Receptacle Type NEMA 5-15R
    Receptacle Detail 12 x NEMA 5-15R
    Number of Battery & Surge Outlets 6
    Number of Surge-only Outlets 6
    Transfer Time 6 ms
    EMI/RFI Noise Filter Yes
    Phase Single Phase
    Load Capacity (VA) 900 VA
    Load Capacity (Watt) 480 W
    Input Voltage 120 V AC
    Output Voltage
    • 110 V AC
    • 115 V AC
    • 120 V AC
    Input Frequency 60 Hz
    Output Frequency 60 Hz
    Waveform Type Pulse-width Modulated Sine Wave
    Surge Energy Rating 316 J
    Alarm
    • Battery Backup
    • Low Battery
    • Fault
    • Overload
    • Replace Battery
    Status Indicators

    2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
    USB Yes
    USB (HID Compliant) Port Yes
    DC System Voltage 12 V DC
    Battery Chemistry Lead Acid
    Backup/Run Time (Full Load) 2.70 Minute
    Backup/Run Time (Half Load) 10 Minute
    Typical Battery Recharge Time 8 Hour
    Replaceable Battery Yes
    Maximum Operating Temperature 104°F (40°C)
    Storage Temperature 5°F (-15°C) - 113°F (45°C)
    Height 4.14" (105.16 mm)
    Width 7.48" (189.99 mm)
    Depth 12" (304.80 mm)
    Form Factor Ultra-compact Desktop/Tower/Wall Mount
    Weight (Approximate) 16.50 lb (7484.27 g)
    Package Contents
    • AVR 900VA Desktop UPS
    • Owner's manual
    Additional Information
    • Appearance: All black ultra-compact housing

    Output voltage regulation:

    • Sine wave 120V +14% / -12% (line mode)
    • PWM sine wave 115V +/-5% (battery mode)

    Output frequency regulation:

    • Line Mode: Passes line frequency of 60Hz +/-10%
    • Battery Mode: Inverter output regulated to 60Hz +/-0.5Hz
    Certifications & Standards

    UL Listed Certification
    Software Included PowerAlert Software
    Assembly Required No
    Country of Origin Vietnam
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 3 Year
    Additional Warranty Information

    • 2 year warranty

    • 100,000 Connected equipment guarantee

    Call us if more information required.
