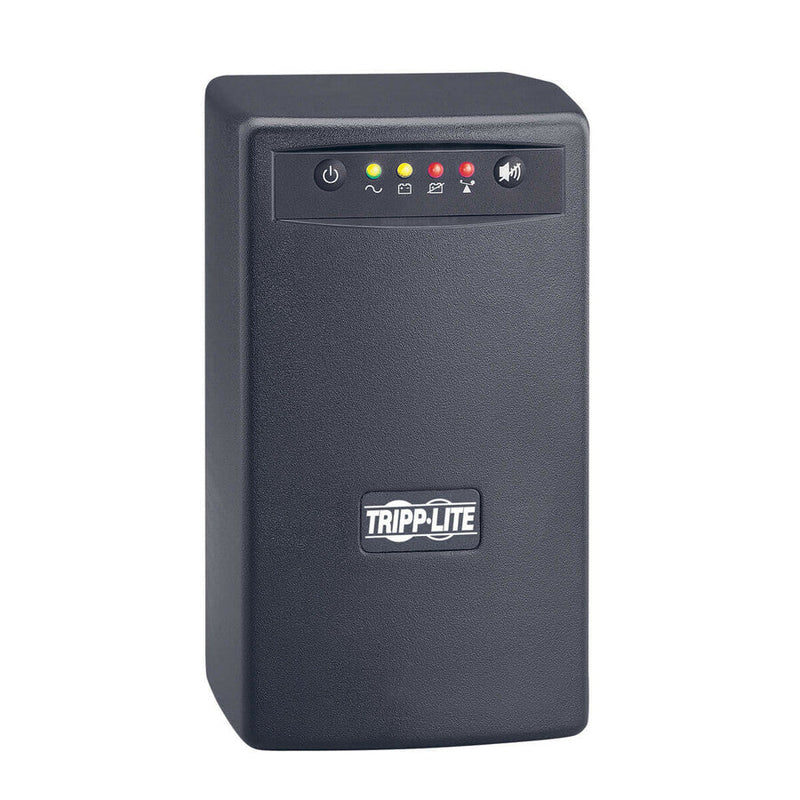

Tripp Lite by Eaton OMNISMART500 500VA Tower/Wall Mountable UPS - OMNISMT500PNP - Line-interactive UPS, 120 V AC, Tower/Wall Mountable, 110 V AC,115 V AC,120 V AC, NEMA 5-15P, 14.60 Minute, 4 Minute, 500 VA/300 W

Tripp Lite by Eaton OMNISMART500 500VA Tower/Wall Mountable UPS - OMNISMT500PNP - Line-interactive UPS, 120 V AC, Tower/Wall Mountable, 110 V AC,115 V AC,120 V AC, NEMA 5-15P, 14.60 Minute, 4 Minute, 500 VA/300 W-UPSPLUSBATTERY

Tripp Lite by Eaton OMNISMART500 500VA Tower/Wall Mountable UPS - OMNISMT500PNP - Line-interactive UPS, 120 V AC, Tower/Wall Mountable, 110 V AC,115 V AC,120 V AC, NEMA 5-15P, 14.60 Minute, 4 Minute, 500 VA/300 W

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Line-interactive UPS
  • Manufacturer Part Number: OMNISMT500PNP
  • Input Voltage: 120 V AC
  • Form Factor: Tower/Wall Mountable
  • Plug/Connector Type: NEMA 5-15P
  • Backup/Run Time (Half Load): 14.60 Minute
  • Backup/Run Time (Full Load): 4 Minute
  • Load Capacity: 500 VA/300 W
Product Specifications:
Product Features:
  • Manufacturer:Tripp Lite by Eaton
  • Manufacturer Part Number:OMNISMT500PNP
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Brand Name:Tripp Lite by Eaton
  • Product Line:OmniSmart
  • Product Model:OMNISMART500
  • Product Name:OMNISMART500 500VA Tower/Wall Mountable UPS

    • Marketing Information:
    • OMNISMART500 line interactive UPS system offers voltage regulation and battery support, plus complete AC and dialup/DSL line surge suppression
    • Supports entry-level PC systems for up to 30 minutes during power failures to enable a safe system shutdown
    • Supports a maximum load of 500VA/300 watts for 4 minutes and a half load of 250VA/150 watts for 14.6 minutes
    • Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 75 volts and overvoltages as high as 147 back to normal 120 volt levels without using battery power
    • Attractive black tower configuration
    • Includes 3 battery supported outlets, plus 3 additional surge suppression-only outlets, 6-ft. (1.83 m) AC line cord (all NEMA 5-15)
    • USB port enables data-saving unattended shutdown when used with PowerAlert software, available via FREE download from tripplite.eaton.com/products/power-alert
    • HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and macOS
    • Supports WatchDog Service Monitoring/Rebooting Software (part# WATCHDOGSW)
    • Dataline suppression jacks protect a single dialup phone/DSL line
    • Audible alarm and 4 front panel LEDs indicate UPS system and line power status
    • 500VA/300 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
    • Supports battery replacement via built-in access panel
    • Compatible with 120V/60 Hz applications for USA, Canada, Mexico and more
    • Optional PDUB15 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
    • Short circuit protection during AC and battery modes

    PRODUCT SPECIFICATIONS
    AVR Yes
    Plug/Connector Type NEMA 5-15P
    Receptacle Type NEMA 5-15R
    Receptacle Detail 6 x NEMA 5-15R
    Dataline Protection RJ-11/RJ-45
    Transfer Time 2.40 ms
    EMI/RFI Noise Filter Yes
    Phase Single Phase
    Energy Saving Greater than 95% efficiency
    Application/Usage
    • Computer
    • Telecommunication
    • Electronic Device
    • Network
    Load Capacity (VA) 500 VA
    Load Capacity (Watt) 300 W
    Input Voltage 120 V AC
    Output Voltage
    • 110 V AC
    • 115 V AC
    • 120 V AC
    Output Frequency 60 Hz
    Waveform Type Sine Wave
    Surge Energy Rating 480 J
    Alarm
    • Power Failure
    • Low Battery
    Status Indicators

    LED Indicators:

    • Line Power
    • Battery Power
    • Overload
    • Battery Low/Replace Status
    USB (HID Compliant) Port Yes
    DC System Voltage 12 V DC
    Battery Characteristics Hot-swappable
    Backup/Run Time (Full Load) 4 Minute
    Backup/Run Time (Half Load) 14.60 Minute
    Typical Battery Recharge Time 3.60 Hour
    Hot Swappable Yes
    Replaceable Battery Yes
    Maximum Operating Temperature 104°F (40°C)
    Storage Temperature 5°F (-15°C) - 122°F (50°C)
    Thermal Dissipation 53 BTU/h
    Height 8.50" (216 mm)
    Width 5" (127 mm)
    Depth 7.01" (178 mm)
    Form Factor Tower/Wall Mountable
    Weight (Approximate) 5.44 kg
    Package Contents
    • OMNISMART500 500VA Tower/Wall Mountable UPS
    • USB and RJ11 Phone Cable
    • Instruction Manual with Warranty Information
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 2 Year

    Call us if more information required.
