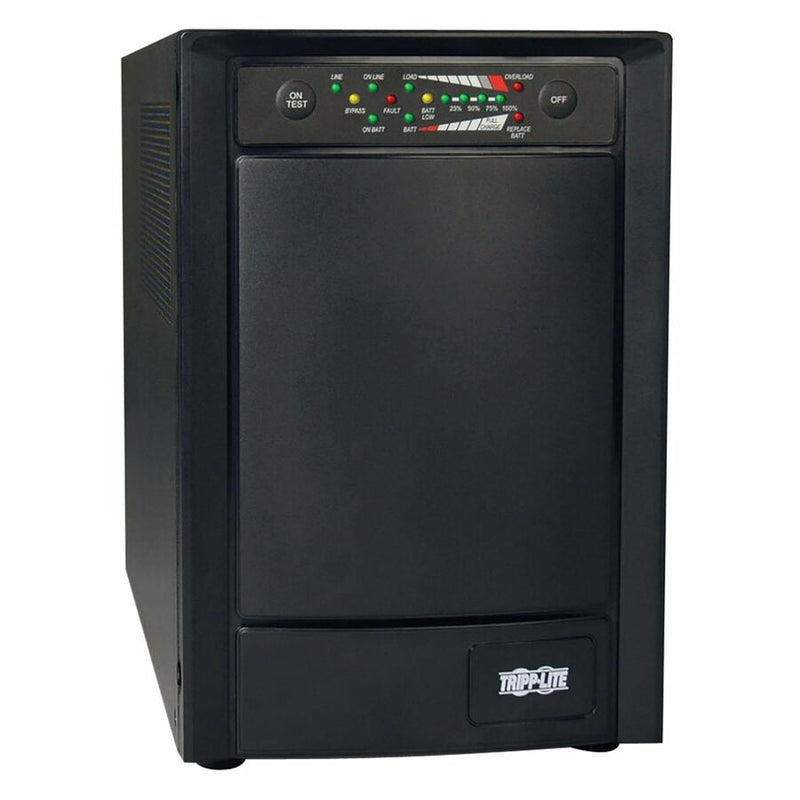

Tripp Lite SmartOnline SU750XL Tower UPS - SU750XL - Double Conversion Online UPS, 110 V AC, Tower, 120 V AC, NEMA 5-15P, SmartOnline, 11 Minute, 4 Minute, 750 VA/600 W

General Purpose UPS - Tripp Lite SmartOnline SU750XL Tower UPS - SU750XL - Double Conversion Online UPS, 110 V AC, Tower, 120 V AC, NEMA 5-15P, SmartOnline, 11 Minute, 4 Minute, 750 VA/600 W

Tripp Lite SmartOnline SU750XL Tower UPS - SU750XL - Double Conversion Online UPS, 110 V AC, Tower, 120 V AC, NEMA 5-15P, SmartOnline, 11 Minute, 4 Minute, 750 VA/600 W

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SU750XL
  • Input Voltage: 110 V AC
  • Form Factor: Tower
  • Plug/Connector Type: NEMA 5-15P
  • Product Family: SmartOnline
  • Backup/Run Time (Half Load): 11 Minute
  • Backup/Run Time (Full Load): 4 Minute
  • Load Capacity: 750 VA/600 W

    • Marketing Information:

    The SU750XL on-line, double-conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges. Large-capacity 750VA/600W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Includes 6 UPS supported outlets; 2 single-outlet load banks can be independently controlled via a software interface to selectively reboot remote equipment or shed less critical loads. Includes slot for internal SNMP/WEB card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS power management software.

Product Specifications:
Product Features:
  • Manufacturer:Tripp Lite by Eaton
  • Manufacturer Part Number:SU750XL
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Model:SU750XL
  • Product Name:SmartOnline SU750XL Tower UPS

    • Marketing Information:

    The SU750XL on-line, double-conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges. Large-capacity 750VA/600W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Includes 6 UPS supported outlets; 2 single-outlet load banks can be independently controlled via a software interface to selectively reboot remote equipment or shed less critical loads. Includes slot for internal SNMP/WEB card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS power management software.


    PRODUCT SPECIFICATIONS
    Plug/Connector Type NEMA 5-15P
    Receptacle Type NEMA 5-15R
    Receptacle Detail 6 x NEMA 5-15R
    Dataline Protection RJ-45
    Bypass Switch Automatic
    Emergency Power OFF Yes
    Load Capacity (VA) 750 VA
    Load Capacity (Watt) 600 W
    Input Voltage 110 V AC
    Input Current 6.20 A
    Output Voltage 120 V AC
    Network Management SNMP Manageable
    Serial Port Yes
    USB Yes
    Backup/Run Time (Full Load) 4 Minute
    Backup/Run Time (Half Load) 11 Minute
    Typical Battery Recharge Time 6 Hour
    Hot Swappable Yes
    Height 10" (254 mm)
    Width 6.75" (171.45 mm)
    Depth 13.25" (336.55 mm)
    Form Factor Tower
    Weight (Approximate) 13.02 kg
    Package Contents
    • SmartOnline SU750XL Tower UPS
    • SU750XL UPS System
    • PowerAlert Software CD and cabling
    • EPO (Emergency Power Off) cabling
    • Owner's manual with warranty information
    Additional Information
    • Switches: Includes combination main power on/test and main power off switch
    Certifications & Standards Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), Class B (Emissions), RoHS-compliant, FCC Part 68/ Industry Canada (telecommunications)
    Software Included PowerAlert Software
    Country of Origin China
    Limited Warranty 2 Year

    Call us if more information required.
