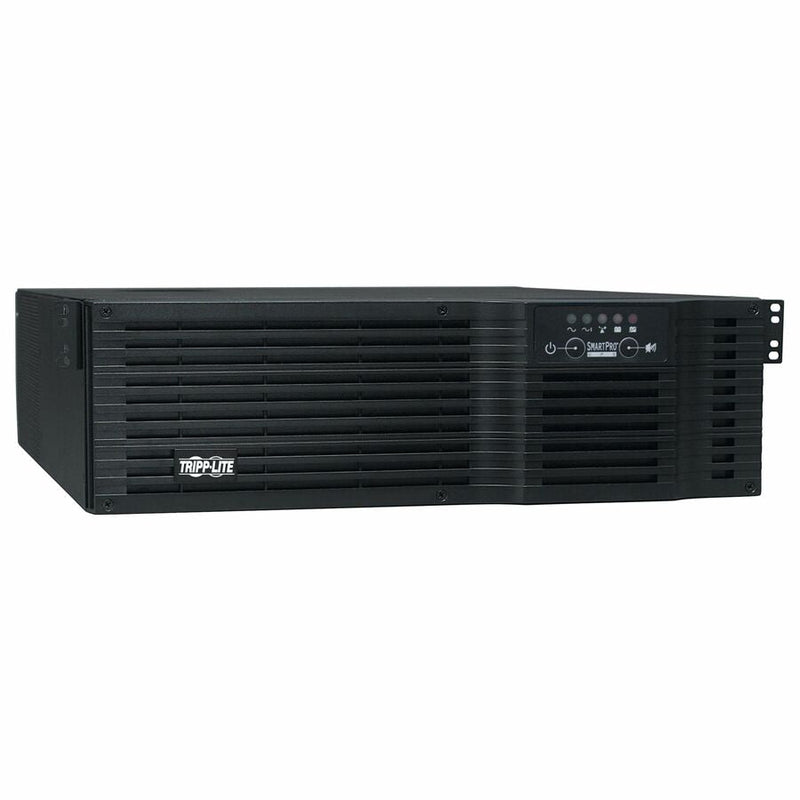

Tripp Lite by Eaton SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS - SM2200RMDVTAA - Line-interactive UPS, 110 V AC,220 V AC, Rack/Tower, 3U, 120 V AC, SmartPro, 30 Minute, 12 Minute, 2.20 kVA/1.92 kW

Tripp Lite by Eaton SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS - SM2200RMDVTAA - Line-interactive UPS, 110 V AC,220 V AC, Rack/Tower, 3U, 120 V AC, SmartPro, 30 Minute, 12 Minute, 2.20 kVA/1.92 kW-UPSPLUSBATTERY

Tripp Lite by Eaton SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS - SM2200RMDVTAA - Line-interactive UPS, 110 V AC,220 V AC, Rack/Tower, 3U, 120 V AC, SmartPro, 30 Minute, 12 Minute, 2.20 kVA/1.92 kW

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Line-interactive UPS
  • Manufacturer Part Number: SM2200RMDVTAA
  • Input Voltage: 110 V AC,220 V AC
  • Form Factor: Rack/Tower
  • Rack Height: 3U
  • Product Family: SmartPro
  • Backup/Run Time (Half Load): 30 Minute
  • Backup/Run Time (Full Load): 12 Minute
  • Load Capacity: 2.20 kVA/1.92 kW

    • Marketing Information:

    Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.

    More from the Manufacturer

Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SM2200RMDVTAA
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartPro
  • Product Model:SM2200RMDVTAA
  • Product Name:SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS

    • Marketing Information:

    Tripp Lite's dual input voltage SM2200RMDVTAA line interactive UPS system maintains 120V nominal output when powered by North American 120V or International 230V input. 3U rack / tower form factor with an installed depth of only 22.5 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT3U external battery packs. Includes C20 power inlet with set of 4 international cordsets and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Integrated 2-bank programmable PDU switching supports load shedding and remote-reboot of up to 2 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. 95% efficiency in line power mode.


    PRODUCT SPECIFICATIONS
    Receptacle Type
    • NEMA 5-15/20R
    • NEMA 5-15R
    Receptacle Detail
    • 4 x NEMA 5-15/20R
    • 4 x NEMA 5-15R
    Emergency Power OFF Yes
    Transfer Time 4 ms
    Load Capacity (VA) 2.20 kVA
    Load Capacity (Watt) 1.92 kW
    Input Voltage
    • 110 V AC
    • 220 V AC
    Input Current 16 A
    Output Voltage 120 V AC
    Network Management SNMP Manageable
    Serial Port Yes
    USB Yes
    Backup/Run Time (Full Load) 12 Minute
    Backup/Run Time (Half Load) 30 Minute
    Typical Battery Recharge Time 4.50 Hour
    Hot Swappable Yes
    Height 5.25" (133.35 mm)
    Width 17.50" (444.50 mm)
    Depth 25.25" (641.35 mm)
    Rack Height 3U
    Form Factor Rack/Tower
    Weight (Approximate) 104.25 lb (47287 g)
    Package Contents
    • SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS
    • 5 x International Input Power Cables
    • USB Cable
    • Serial Cable
    • EPO Cable
    • PowerAlert Software CD
    • Tower Stand Kit
    • 4 Post 19 inch Rackmount Mounting Kit
    • 2 Post 19 inch Rackmount Mounting Kit
    • User Manual
    Additional Information

    Input Receptacle: C20
    Certifications & Standards
    • UL1778
    • FCC Part 15 Category A
    • TAA Compliant
    Software Included PowerAlert Software
    Country of Origin Taiwan
    TAA Compliant Yes
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 2 Year

    Call us if more information required.
