Manufacturer:Eaton Corporation
Manufacturer Part Number:SMART1000RM2UN
Manufacturer Website Address:https://tripplite.eaton.com/
Brand Name:Tripp Lite by Eaton
Product Line:SmartPro
Product Model:SMART1000RM2UN

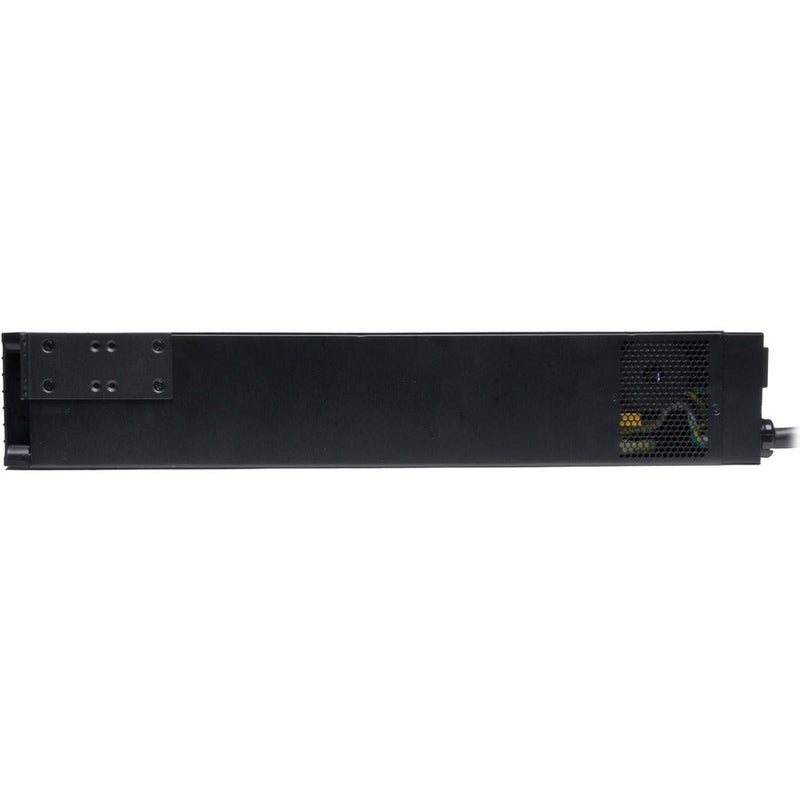

Product Name:SmartPro SMART1000RM2UN 1000VA Rack-mountable UPS
Marketing Information:1000VA/800W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro® line-interactive SMART1000RM2UN UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup with 0.8 power factor is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (400W) powered as long as 15 minutes and a full load (800W) up to 5.3 minutes.
Installed WEBCARDLX Network Interface Offers 24/7 Access
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimal communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
6 NEMA Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Two independently switched two-outlet load banks enable both scheduled and real-time remote rebooting and load shedding.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1000RM2UN can correct brownouts as low as 83V and overvoltages as high as 147V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Designed for High Efficiency to Help You Save Money and Protect the Environment
A 95% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Silenceable Alarm and Easy-to-Read LCD Keep You Informed Around the Clock
The front-panel LCD lets you monitor important data, such as load level, power factor, voltage, battery charge and estimated runtimes. It rotates for comfortable viewing in both rack and tower configurations. The audible alarm sounds for power failure, low battery and overloads. You may silence it using the built-in switch or disable it.
| AVR |
Yes |
| Plug/Connector Type |
NEMA 5-15P |
| Receptacle Type |
NEMA 5-15R |
| Receptacle Detail |
6 x NEMA 5-15R |
| Number of Battery & Surge Outlets |
6 |
| Overload Protection |
Yes |
| Transfer Time |
4 ms |
| EMI/RFI Noise Filter |
Yes |
| Phase |
Single Phase |
| Application/Usage |
- Digital Signage
- Network Equipment
- Telecommunication
- Security System
- Wiring Closet
- High-end System Component
- Gaming Console
- Retail and Wholesale
- Casino
- Hotel/Motel Management
- Electronic
|
| Load Capacity (VA) |
1 kVA |
| Load Capacity (Watt) |
800 W |
| Input Voltage |
120 V AC |
| Output Voltage |
- 110 V AC
- 115 V AC
- 120 V AC
|
| Waveform Type |
Pure Sine Wave |
| Surge Energy Rating |
570 J |
| Network Management |
SNMP/Telnet/SSH |
| Alarm |
- UPS StartUp
- Power Failure
- Low Battery
- Overload
- UPS Fault
- Remote Shutdown
|
| Status Indicators |
Front Panel LCD Display: - Front panel LCD information
- Configuration screen offers detailed UPS
- Site power status and operating data
- Plus configuration of voltage
- Operating mode
- Alarm function and a variety of additional options
|
| Serial Port |
Yes |
| EPO Port |
Yes |
| USB (HID Compliant) Port |
Yes |
| DC System Voltage |
24 V DC |
| Battery Characteristics |
Valve-regulated |
| Battery Chemistry |
Lead Acid |
| Backup/Run Time (Full Load) |
5.30 Minute |
| Backup/Run Time (Half Load) |
15 Minute |
| Typical Battery Recharge Time |
4 Hour |
| Hot Swappable |
Yes |
| Replaceable Battery |
Yes |
| Maximum Operating Temperature |
104°F (40°C) |
| Storage Temperature |
5°F (-15°C) - 122°F (50°C) |
| Sound Emission (A-Weighted) |
45 dB(A) |
| Thermal Dissipation |
134 BTU/h |
| Height |
3.46" (88 mm) |
| Width |
17.36" (441 mm) |
| Depth |
12.52" (318 mm) |
| Rack Height |
2U |
| Form Factor |
Rack-mountable |
| Weight (Approximate) |
35.41 lb (16060 g) |
| Package Contents |
- SmartPro SMART1000RM2UN 1000VA Rack-mountable UPS
- WEBCARDLX Network Management Card
- Micro USB to USB-A Cable
- USB Cable
- DB9 Cable
- EPO Cable
- Rack-mounting Hardware
- Owner's Manual
|
| Energy Star |
Yes |
| Country of Origin |
China |
| Environmentally Friendly |
Yes |
| Environmental Compliance |
Restriction of Hazardous Substances (RoHS) |
| Limited Warranty |
2 Year |
