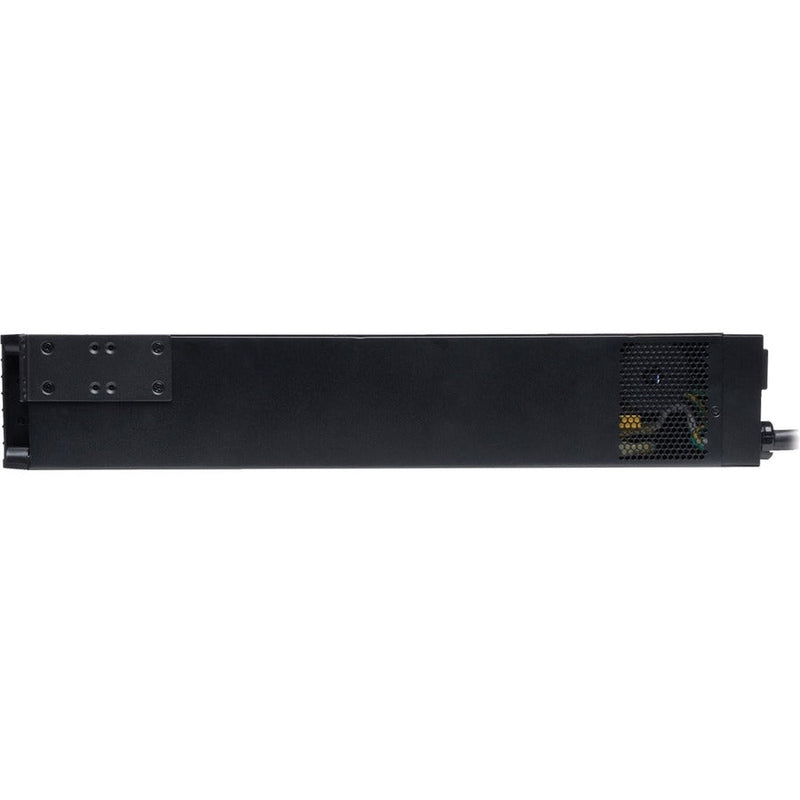

Tripp Lite by Eaton SmartPro SMART2200RM2UL 2200VA UPS - SMART2200RM2UL - Line-interactive UPS, 120 V AC, Rack-mountable, Pure Sine Wave, 2U, 110 V AC,115 V AC,120 V AC, NEMA 5-20P, SmartPro, 11.70 Minute, 5.10 Minute, 2.20 kVA/1.92 kW

Tripp Lite by Eaton SmartPro SMART2200RM2UL 2200VA UPS - SMART2200RM2UL - Line-interactive UPS, 120 V AC, Rack-mountable, Pure Sine Wave, 2U, 110 V AC,115 V AC,120 V AC, NEMA 5-20P, SmartPro, 11.70 Minute, 5.10 Minute, 2.20 kVA/1.92 kW-UPSPLUSBATTERY

Tripp Lite by Eaton SmartPro SMART2200RM2UL 2200VA UPS - SMART2200RM2UL - Line-interactive UPS, 120 V AC, Rack-mountable, Pure Sine Wave, 2U, 110 V AC,115 V AC,120 V AC, NEMA 5-20P, SmartPro, 11.70 Minute, 5.10 Minute, 2.20 kVA/1.92 kW

/
  • Delivery across Canada
  • Low stock - 1 item left
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Line-interactive UPS
  • Manufacturer Part Number: SMART2200RM2UL
  • Input Voltage: 120 V AC
  • Form Factor: Rack-mountable
  • Waveform Type: Pure Sine Wave
  • Rack Height: 2U
  • Plug/Connector Type: NEMA 5-20P
  • Product Family: SmartPro
  • Backup/Run Time (Half Load): 11.70 Minute
  • Backup/Run Time (Full Load): 5.10 Minute
  • Load Capacity: 2.20 kVA/1.92 kW

    • Marketing Information: Protects Mission-Critical Rack-Mounted Equipment
    • Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
    • Audible alarm signals loss of utility power, overload and low battery
    • 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
    • 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
    • 570-joule surge suppression rating
    • 0.9 power factor rating
    • 97% line-mode efficiency rating saves money in energy costs
    Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery
    • More than 2x the service life
    • Up to 3x more charge/discharge cycles
    • Recharges to 100% capacity in less than 2 hr.
    • Weighs 60% less, reducing overall UPS weight
    • Supports half load up to 11.7 min. and full load up to 5.1 min.
    2 Load Banks with Switchable Outlets
    • Can control 2 outlets remotely to reboot equipment or shed nonessential loads
    Automatic Voltage Regulation (AVR)
    • Maintains 120V nominal output over input range of 83V-145V without using battery power
    EMI/RFI Line Noise Filtering
    • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
    Interactive LCD Screen
    • Front-panel LCD with detailed UPS and site power status and operating data
    • Rotates for easy viewing in rack-mount or tower configurations
    Optional Network Management Cards
    • Compatible with Tripp Lite UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
    Communications Ports
    • USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at <li">www.tripplite.com/poweralert
    • <li">EPO port supports emergency shutdown in large facilities
    Versatile Installation Options
    • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
    • Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
    • Mounts in upright tower position with optional 2-9USTAND accessory
    Backed by Tripp Lite's Ultimate Lifetime Insurance
    • $250,000 Ultimate Lifetime Insurance covers any connected components
Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SMART2200RM2UL
  • Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartPro
  • Product Model:SMART2200RM2UL
  • Product Name:SmartPro SMART2200RM2UL 2200VA UPS

    • Marketing Information:
    • Protects Mission-Critical Rack-Mounted Equipment
      • Provides fully regulated sine wave AC output for servers, network storage devices, telecom hardware and other applications where long battery lifespan is critical
      • Audible alarm signals loss of utility power, overload and low battery
      • 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
      • 10-ft. (3.05 m) power cord with 120V NEMA 5-20P input
      • 570-joule surge suppression rating
      • 0.9 power factor rating
      • 97% line-mode efficiency rating saves money in energy costs
      Superior LiFePO4 Battery Backup Compared to Equivalent Lead Acid Battery
      • More than 2x the service life
      • Up to 3x more charge/discharge cycles
      • Recharges to 100% capacity in less than 2 hr.
      • Weighs 60% less, reducing overall UPS weight
      • Supports half load up to 11.7 min. and full load up to 5.1 min.
      2 Load Banks with Switchable Outlets
      • Can control 2 outlets remotely to reboot equipment or shed nonessential loads
      Automatic Voltage Regulation (AVR)
      • Maintains 120V nominal output over input range of 83V-145V without using battery power
      EMI/RFI Line Noise Filtering
      • Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
      Interactive LCD Screen
      • Front-panel LCD with detailed UPS and site power status and operating data
      • Rotates for easy viewing in rack-mount or tower configurations
      Optional Network Management Cards
      • Compatible with Tripp Lite UPS management cards WEBCARDLX, SNMPWEBCARD and RELAYIOCARD
      Communications Ports
      • USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite PowerAlert software (available via free download at www.tripplite.com/poweralert
      • EPO port supports emergency shutdown in large facilities
      Versatile Installation Options
      • Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
      • Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
      • Mounts in upright tower position with optional 2-9USTAND accessory
      Backed by Tripp Lite's Ultimate Lifetime Insurance
      • 250,000 Ultimate Lifetime Insurance covers any connected components

    PRODUCT SPECIFICATIONS
    Plug/Connector Type NEMA 5-20P
    Receptacle Type
    • NEMA 5-15/20R
    • NEMA 5-20
    Receptacle Detail
    • 4 x NEMA 5-15/20R
    • 4 x NEMA 5-20
    Protection Type
    • Over Voltage
    • Under Voltage
    Emergency Power OFF Yes
    Transfer Time 5 ms
    EMI/RFI Noise Filter Yes
    Phase Single Phase
    Application/Usage
    • Server
    • Network Storage Device
    Load Capacity (VA) 2.20 kVA
    Load Capacity (Watt) 1.92 kW
    Input Voltage 120 V AC
    Input Current 16 A
    Output Voltage
    • 110 V AC
    • 115 V AC
    • 120 V AC
    Waveform Type Pure Sine Wave
    Surge Energy Rating 570 J
    Circuit Breaker Yes
    Alarm
    • UPS StartUp
    • Power Failure
    • Low Battery
    • Overload
    • UPS Fault
    • Remote Shutdown
    Serial Port Yes
    USB Yes
    Backup/Run Time (Full Load) 5.10 Minute
    Backup/Run Time (Half Load) 11.70 Minute
    Typical Battery Recharge Time 1.40 Hour
    Hot Swappable Yes
    Maximum Operating Temperature 122°F (50°C)
    Sound Emission (A-Weighted) 45 dB(A)
    Thermal Dissipation 1343 BTU/h
    Height 3.43" (87 mm)
    Width 19.45" (494 mm)
    Depth 17.32" (440 mm)
    Rack Height 2U
    Form Factor Rack-mountable
    Weight (Approximate) 41.78 lb (18950 g)
    Package Contents
    • SmartPro SMART2200RM2UL 2200VA UPS
    • USB cable
    • DB9 cable
    • EPO cable
    • Rack-mounting hardware
    • Owner's manual
    Certifications & Standards
    • UL1778 (USA)
    • Tested to CSA (Canada)
    • Tested to NOM (Mexico)
    • Meets FCC Part 15 Category A (EMI)
    Country of Origin United States
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 5 Year

    Call us if more information required.
