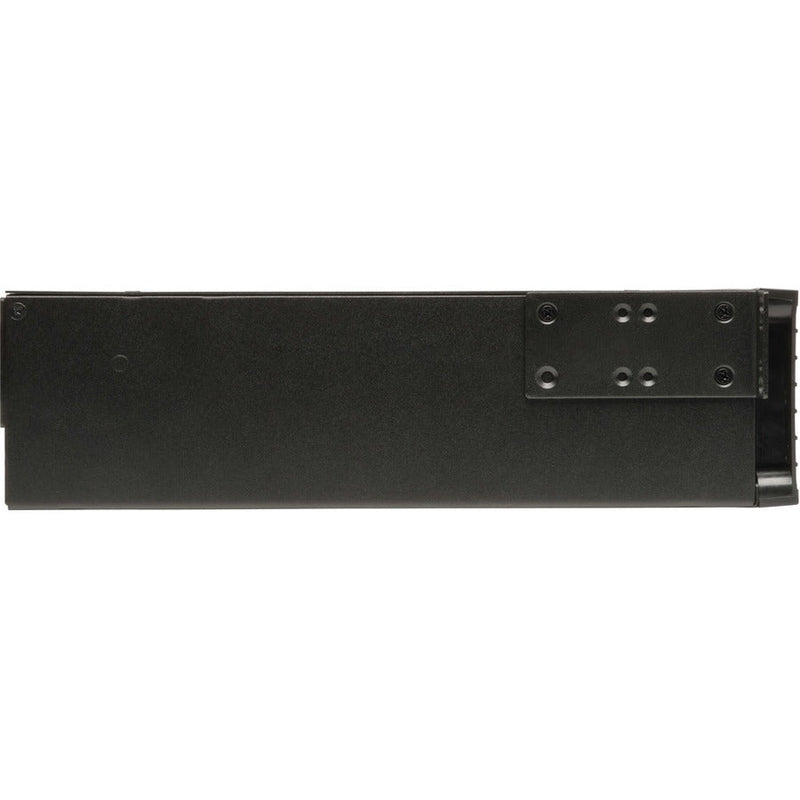

Tripp Lite SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS - SMX2200XLRT2U - Line-interactive UPS, 230 V AC, Rack/Tower, Pure Sine Wave, 2U, 220 V AC,230 V AC,240 V AC, IEC 60320 C20, SmartPro, 11.90 Minute, 5 Minute, 2.20 kVA/1.92 kW

Tripp Lite SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS - SMX2200XLRT2U - Line-interactive UPS, 230 V AC, Rack/Tower, Pure Sine Wave, 2U, 220 V AC,230 V AC,240 V AC, IEC 60320 C20, SmartPro, 11.90 Minute, 5 Minute, 2.20 kVA/1.92 kW-UPSPLUSBATTERY

Tripp Lite SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS - SMX2200XLRT2U - Line-interactive UPS, 230 V AC, Rack/Tower, Pure Sine Wave, 2U, 220 V AC,230 V AC,240 V AC, IEC 60320 C20, SmartPro, 11.90 Minute, 5 Minute, 2.20 kVA/1.92 kW

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Line-interactive UPS
  • Manufacturer Part Number: SMX2200XLRT2U
  • Input Voltage: 230 V AC
  • Form Factor: Rack/Tower
  • Waveform Type: Pure Sine Wave
  • Rack Height: 2U
  • Plug/Connector Type: IEC 60320 C20
  • Product Family: SmartPro
  • Backup/Run Time (Half Load): 11.90 Minute
  • Backup/Run Time (Full Load): 5 Minute
  • Load Capacity: 2.20 kVA/1.92 kW

    • Marketing Information: Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional network management card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SMX2200XLRT2U
  • Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartPro
  • Product Model:SMX2200XLRT2U
  • Product Name:SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS

    • Marketing Information:Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional network management card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
    PRODUCT SPECIFICATIONS
    AVR Yes
    Plug/Connector Type IEC 60320 C20
    Receptacle Type IEC 60320 C13
    Receptacle Detail 8 x IEC 60320 C13
    Protection Type
    • EMI
    • RFI
    Emergency Power OFF Yes
    Transfer Time 6 ms
    EMI/RFI Noise Filter Yes
    Phase Single Phase
    Energy Saving Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
    Application/Usage
    • Server
    • Network
    • Telecommunication
    Load Capacity (VA) 2.20 kVA
    Load Capacity (Watt) 1.92 kW
    Input Voltage 230 V AC
    Input Current 10.70 A
    Output Voltage
    • 220 V AC
    • 230 V AC
    • 240 V AC
    Output Frequency 60 Hz
    Waveform Type Pure Sine Wave
    Surge Energy Rating 350 J
    Circuit Breaker Yes
    Network Management SNMP Manageable
    Alarm
    • UPS StartUp
    • Power Failure
    • Low Battery
    • Overload
    • UPS Fault
    • Remote Shutdown
    Status Indicators Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options
    USB Yes
    EPO Port Yes
    USB (HID Compliant) Port Yes
    DC System Voltage 48 V DC
    Battery Characteristics Valve-regulated
    Battery Chemistry Lead Acid
    Backup/Run Time (Full Load) 5 Minute
    Backup/Run Time (Half Load) 11.90 Minute
    Typical Battery Recharge Time 4.50 Hour
    Hot Swappable Yes
    Replaceable Battery Yes
    Maximum Operating Temperature 104°F (40°C)
    Storage Temperature 5°F (-15°C) - 122°F (50°C)
    Sound Emission (A-Weighted) 45 dB(A)
    Thermal Dissipation 161 BTU/h
    Height 3.50" (88.90 mm)
    Width 17.50" (444.50 mm)
    Depth 19.50" (495.30 mm)
    Rack Height 2U
    Form Factor Rack/Tower
    Weight (Approximate) 68.75 lb (31184.48 g)
    Package Contents
    • SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS
    • USB, Serial & EPO cabling
    • 4 post rackmount installation kit
    • Set of 3 C13/C14 power cables
    • Instruction manual
    Additional Information
    • Customized load management receptacles: 3 load banks (1 outlet per bank) that support load shedding and remote reboot on demand of locked network devices. Controllable via PowerAlert software to automatically switch off optional loads, like monitors, to increase available runtime for servers and other critical devices
    • Switches: 2 front panel-mounted push-button switches for system enable, self-test and alarm cancel functions. Rear: set of input voltage dip switches to set unit to actual input voltage. Battery charge level dip switch to adjust UPS system's battery charge rate
    Certifications & Standards
    • CE/IEC 62040
    • FCC Class A (Emissions)
    • GOST
    • SASO
    • TUV w/GS mark
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 2 Year

    Call us if more information required.
