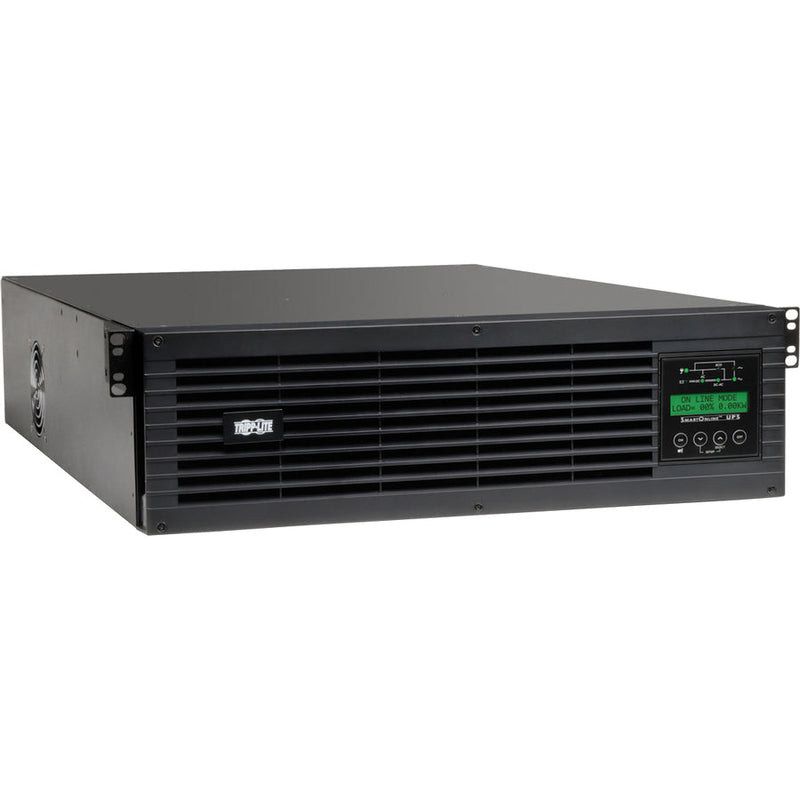

Tripp Lite by Eaton SU3000RTXLCD3U UPS System - SU3000RTXLCD3U - Double Conversion Online UPS, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, Rack-mountable, 3U, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, NEMA L5-30P, SmartOnline, 11 Minute, 4

Tripp Lite by Eaton SU3000RTXLCD3U UPS System - SU3000RTXLCD3U - Double Conversion Online UPS, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, Rack-mountable, 3U, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, NEMA L5-30P, SmartOnline, 11 Minute, 4-UPSPLUSBATTERY

Tripp Lite by Eaton SU3000RTXLCD3U UPS System - SU3000RTXLCD3U - Double Conversion Online UPS, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, Rack-mountable, 3U, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, NEMA L5-30P, SmartOnline, 11 Minute, 4

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SU3000RTXLCD3U
  • Input Voltage: 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC
  • Form Factor: Rack-mountable
  • Rack Height: 3U
  • Plug/Connector Type: NEMA L5-30P
  • Product Family: SmartOnline
  • Backup/Run Time (Half Load): 11 Minute
  • Backup/Run Time (Full Load): 4 Minute
  • Load Capacity: 3 kVA/2.70 kW

    • Marketing Information: Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for network management card options. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Battery independent restart. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SU3000RTXLCD3U
  • Manufacturer Website Address:https://tripplite.eaton.com/
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Model:SU3000RTXLCD3U
  • Product Name:SU3000RTXLCD3U UPS System

    • Marketing Information:Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) with Transformerless, IGBT technology maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and slot for network management card options. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Battery independent restart. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
    PRODUCT SPECIFICATIONS
    Plug/Connector Type NEMA L5-30P
    Receptacle Type
    • NEMA 5-15/20R
    • NEMA L5-30R
    • NEMA 5-15R
    Receptacle Detail
    • 4 x NEMA 5-15/20R
    • 4 x NEMA L5-30R
    • 1 x NEMA 5-15R
    Bypass Switch Automatic
    Emergency Power OFF Yes
    Transfer Time 0 ns
    Load Capacity (VA) 3 kVA
    Load Capacity (Watt) 2.70 kW
    Input Voltage
    • 100 V AC
    • 110 V AC
    • 115 V AC
    • 120 V AC
    • 127 V AC
    Output Voltage
    • 100 V AC
    • 110 V AC
    • 115 V AC
    • 120 V AC
    • 127 V AC
    Network Management SNMP Manageable
    Serial Port Yes
    USB Yes
    Backup/Run Time (Full Load) 4 Minute
    Backup/Run Time (Half Load) 11 Minute
    Typical Battery Recharge Time 3 Hour
    Hot Swappable Yes
    Height 5.20" (132.08 mm)
    Width 17.50" (444.50 mm)
    Depth 26" (660.40 mm)
    Rack Height 3U
    Form Factor Rack-mountable
    Weight (Approximate) 74 lb (33565.84 g)
    Package Contents
    • SU3000RTXLCD3U UPS System
    • USB Cable
    • Serial Cable
    • EPO Cable
    • Poweralert Software CD
    • 4 x Post Rackmount Installation Kit
    • Instruction Manual
    Certifications & Standards
    • UL1778 (USA)
    • CSA (Canada)
    • FCC Part 15 Category A (EMI)
    Software Included

    PowerAlert Software
    Energy Star Yes
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 2 Year

    Call us if more information required.
