About this UPS

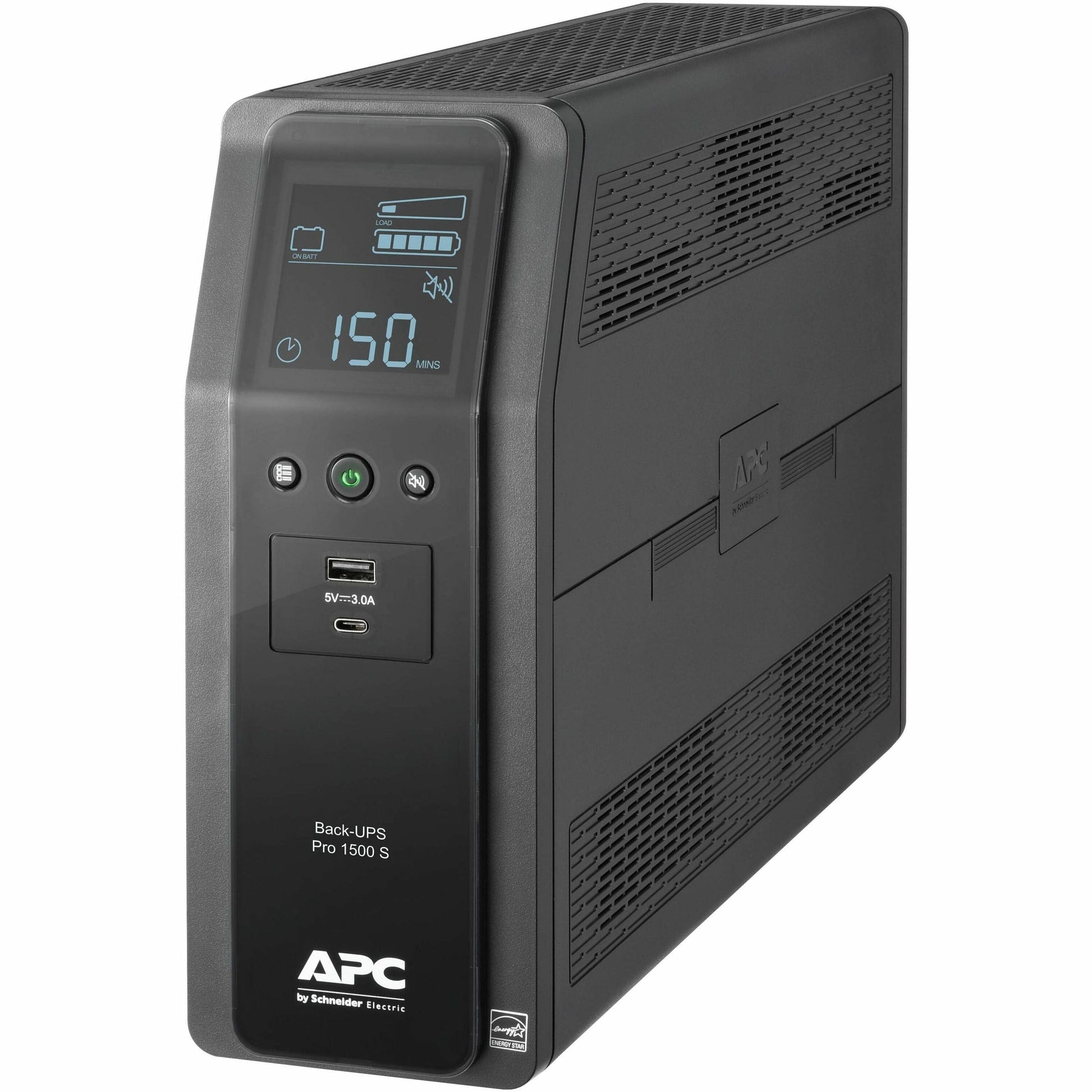

APC by Schneider Electric Back UPS PRO 1500VA Line Interactive Tower UPS
| UPC | 0731304426103 |
| Tower - AVR - 16 Hour Recharge - 4.10 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - 4 x NEMA 5-15R Surge, 6 x NEMA 5-15R - 10 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | BR1500MS2 |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Back-UPS Pro |
| Product Name: | Back UPS PRO 1500VA Line Interactive Tower UPS |
| Marketing Information: | This APC Back-UPS Pro offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 1500VA tower UPS has 10 total outlets, 6 of which are battery back up and surge protection, and 4 that are surge protection only. It has a surge energy rating of 1080 Joules. It has 2 USB ports (Type A + C) for smart charging of personal devices. This UPS has a 3-year warranty and CE product certification. This UPS has a 3-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. |
| Packaged Quantity: | 1 Each |
| Product Type: | Line-interactive UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 10 |
| Number of Surge-only Outlets: | 4 |
| Dataline Protection: | RJ-45 |
| Overload Protection: | Yes |
| Cord Length: | 6 ft |
| Transfer Time: | 8 ms |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 1.50 kVA |
| Load Capacity (Watt): | 900 W |
| Input Voltage: | 120 V |
| Input Voltage Range: | 88 V AC - 147 V AC |
| Output Voltage: | 120 V AC |
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 1080 J | Management |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: | Multifunction LCD status and control console | Interfaces/Ports |
| USB (HID Compliant) Port: | Yes | Battery Information |
| Battery Chemistry: | Lead Acid |
| Battery Capacity: | 257000 mAh |
| Backup/Run Time (Full Load): | 4.10 Minute |
| Backup/Run Time (Half Load): | 14.50 Minute |
| Typical Battery Recharge Time: | 16 Hour |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 104 °F (40 °C) |
| Maximum Operating Elevation: | 10000 ft (3048000 mm) |
| Maximum Storage Elevation: | 10000 ft (3048000 mm) |
| Sound Emission (A-Weighted): | 45 dB(A) | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 10.24" (260 mm) |
| Width: | 3.94" (100 mm) |
| Depth: | 14.49" (368 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 12.50 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | ENERGY STAR V2.0 (USA)|NOM|TUV C-US certified |
| Recycled: | No |
| Assembly Required: | No |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Product Take Back Program: | Yes |
| Mercury Free: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BR1500MS2_ROHS_DECLARATION&p_FileName=BR1500MS2KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=552168865&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=552168865&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| Energy Star URL: | https://www.energystar.gov/products/uninterruptible_power_supplies |
| WEEE Statement: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 year repair or replace |
| Directly Connected Equipment Guarantee: |
|
Technical specifications
Power
VA Rating
1500VA
Wattage
900W
Topology
Line-Interactive
Waveform
Simulated Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
120V
Receptacles
4× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
["USB""HTTP/Web Management"]
Condition
New
Operating Temperature
0 to 40 °C (32 to 104 °F)
Dimensions
260 × 100 × 368 mm (10.24 × 3.94 × 14.49 in)
Weight
12.5kg
Manufacturer Warranty
3 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (450 W)
24.0 min
Full load (900 W)
4.1 min
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.

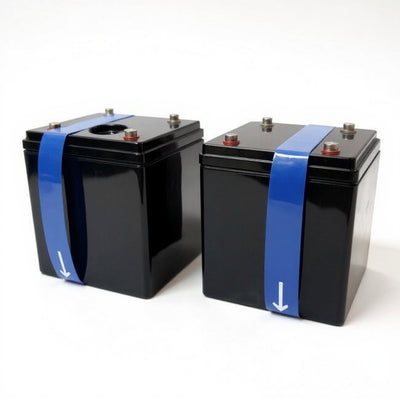

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Bookmark this page
before you need it.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
