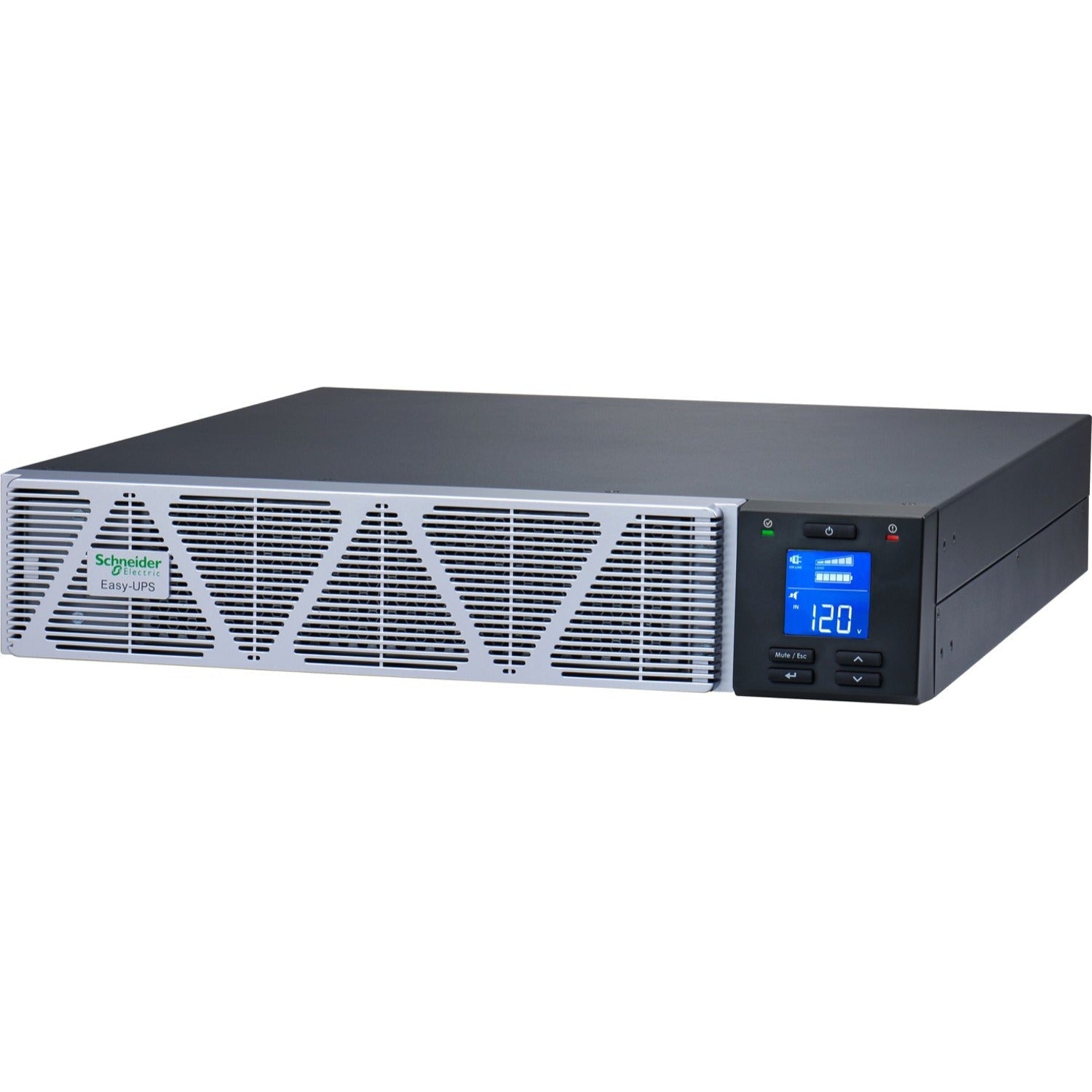

Schneider Electric Easy UPS On-Line Li-Ion SRVSL RT 2000VA 120V, with Rail Kit
| UPC | 731304439233 |
| 2U Rack-mountable - 2 Hour Recharge - 10.38 Minute Stand-by - 120 V AC Input - 120 V AC, 110 V AC, 115 V AC Output - Single Phase - Sine Wave - Serial Port - USB - LCD Display - 6 x NEMA 5-20R | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SRVSL2KRARK |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | Schneider Electric |
| Product Line: | Easy UPS On-Line |
| Product Series: | SRVSL RT |
| Product Name: | Easy UPS On-Line Li-Ion SRVSL RT 2000VA 120V, with Rail Kit |
| Packaged Quantity: | 1 |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-20P |
| Receptacle Type: | NEMA 5-20R |
| Receptacle Detail: | 6 x NEMA 5-20R |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 2 kVA |
| Load Capacity (Watt): | 1.80 kW |
| Input Voltage: | 120 V AC |
| Input Voltage Range: |
|
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 220 J |
| Output Power Factor: | 0.9 | Display & Graphics |
| Display: | LCD | Management |
| Alarm: |
|
Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes |
| EPO Port: | Yes | Battery Information |
| Battery Chemistry: | Lithium Ion (Li-Ion) |
| Battery Size: | 48V |
| Backup/Run Time (Full Load): | 10.38 Minute |
| Backup/Run Time (Half Load): | 21 Minute |
| Battery Life: | 10 Year |
| Typical Battery Recharge Time: | 2 Hour | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | -4 °F (-20 °C) - 122 °F (50 °C) |
| Maximum Operating Elevation: | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation: | 49212.60 ft (15000000 mm) |
| Storage Relative Humidity: | 0% - 95% |
| Sound Emission (A-Weighted): | 50 dB(A) | Physical Characteristics |
| Color Family: | Dual Color |
| Product Color: |
|
| Height: | 3.39" (86 mm) |
| Width: | 17" (431.80 mm) |
| Depth: | 20" (508 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack-mountable |
| Weight (Approximate): | 16.60 kg | Miscellaneous |
| Package Contents: |
|
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 3 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
