Tripp Lite
Tripp Lite series SmartOnline SU2200RTXLCD2U 2000VA Rack/Tower UPS - SU2200RTXLCD2U - Double Conversion Online UPS, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, Rack/Tower, 2U, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, SmartOnline, 20.20 Minute,
Tripp Lite series SmartOnline SU2200RTXLCD2U 2000VA Rack/Tower UPS - SU2200RTXLCD2U - Double Conversion Online UPS, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, Rack/Tower, 2U, 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC, SmartOnline, 20.20 Minute,
- Ships from our Canadian warehouse — CAD pricing, no customs
- New in box — manufacturer warranty applies
- Purchase orders / Net-30 welcome (B2B & public sector)
Questions? 438-881-3363 · Mon–Fri
About this UPS
- Brand: Tripp Lite series
- Product Type: Double Conversion Online UPS
- Manufacturer Part Number: SU2200RTXLCD2U
- Input Voltage: 100 V AC,110 V AC,115 V AC,120 V AC,127 V AC
- Form Factor: Rack/Tower
- Rack Height: 2U
- Product Family: SmartOnline
- Backup/Run Time (Half Load): 20.20 Minute
- Backup/Run Time (Full Load): 7.70 Minute
- Load Capacity: 2.20 kVA/1.80 kW
Marketing Information: 2kVA 1.8kW 120V Battery Backup Protects Equipment against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline ® SU2200RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA Outlets Protect Your Connected Components
One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split evenly into two switchable load banks that let you reboot select components or shed non-critical loads to extend runtime for critical loads. A cooling fan helps protect equipment from overheating.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The two-line front-panel LCD monitoring screen features 10 selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery or bypass mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.
Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even after a complete battery discharge.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Overload Protection | Yes |
| Bypass Switch |
|
| Emergency Power OFF | Yes |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | High efficiency economy mode operation; Individually controllable load banks |
| Application/Usage |
|
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 190 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 0.9 |
| Display | LCD |
| Network Management | SNMP |
| Alarm |
|
| Status Indicators | 4 x status-indicating LEDs |
| Serial Port | Yes |
| USB | Yes |
| DC System Voltage | 72 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 7.70 Minute |
| Backup/Run Time (Half Load) | 20.20 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Minimum Operating Temperature | 32 °F (0 °C) |
| Maximum Operating Temperature | 104 °F (40 °C) |
| Storage Temperature | 32 °F (0 °C) - 104 °F (40 °C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Sound Emission | 47 dB |
| Height | 3.41" (86.61 mm) |
| Width | 17.33" (440.18 mm) |
| Depth | 23.82" (605.03 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 61.51 lb (27900.47 g) |
| Package Contents |
|
| Certifications & Standards | FCC Class A |
| Software Included | PowerAlert UPS Monitoring Software |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Limited Warranty | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Compatible accessories
Network management cards, rail kits, environmental sensors — verified compatible with this UPS line.

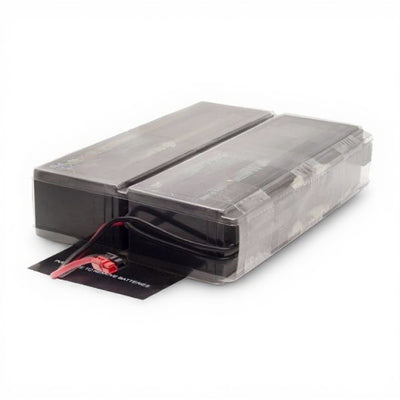

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
