About this UPS

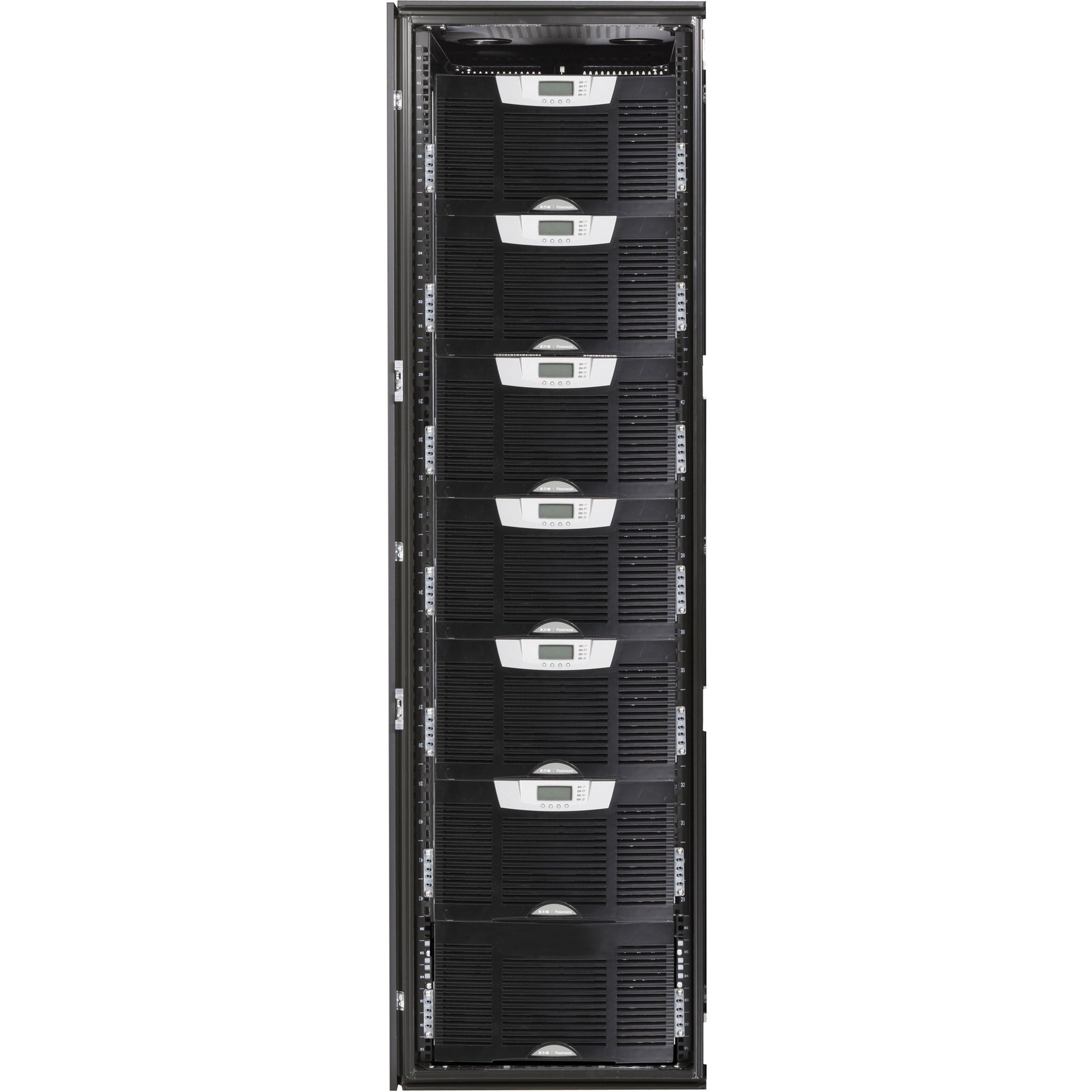

Eaton BladeUPS Power System
| UPC | 743172066558 |
| Tower - 4 Minute Stand-by - 220 V AC Input - 120 V AC, 208 V AC, 228 V AC Output | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | ZP2231500XXX000 |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Line: | BladeUPS |
| Product Name: | BladeUPS Power System |
| Marketing Information: | The Eaton BladeUPS Preassembled System is a truly turnkey solution for growing data center needs. Delivering up to 60 kW of redundant power from a single rack enclosure, Eaton has expanded the BladeUPS product offering and simplified it for easy customization, shipping and installation. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: | Hard Wire 4-wire | Power Description |
| Input Voltage: | 220 V AC |
| Output Voltage: |
|
| Output Frequency: | 50 Hz | Management |
| Network Management: | SNMP Manageable |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes | Interfaces/Ports |
| Modular Slots: |
|
Battery Information |
| Battery Characteristics: | Maintenance-free/Sealed |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 4 Minute |
| Backup/Run Time (Half Load): | 14 Minute | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 81" (2057.40 mm) |
| Width: | 24" (609.60 mm) |
| Depth: | 42" (1066.80 mm) |
| Weight (Approximate): | 596.93 kg | Miscellaneous |
| Package Contents: |
|
| Software Included: | Eaton Intelligent Power Software Suite |
| Country of Origin: | United States |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 1 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
