About this UPS
APC Back-UPS ES 550VA Desktop UPS
| UPC | 0731304258940 |
| Tower - 1 Day Recharge - 3.30 Minute Stand-by - 120 V Input - 120 V AC Output - Stepped Approximated Sine Wave - USB - 4 x NEMA 5-15R Surge, 4 x NEMA 5-15R - 8 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | BE550G |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Back-UPS |
| Product Series: | ES |
| Product Name: | Back-UPS ES 550VA Desktop UPS |
| Marketing Information: |
|
| Packaged Quantity: | 1 Each |
| Product Type: | Standby UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15P |
| Receptacle Detail: |
|
| Number of Battery & Surge Outlets: | 8 |
| Dataline Protection: | RJ-11 |
| Cord Length: | 5 ft | Power Description |
| Load Capacity (VA): | 550 VA |
| Load Capacity (Watt): | 330 W |
| Input Voltage: | 120 V |
| Output Voltage: | 120 V AC |
| Waveform Type: | Stepped Approximated Sine Wave |
| Surge Energy Rating: | 340 J | Interfaces/Ports |
| USB: | Yes | Battery Information |
| Battery Characteristics: | Spill-proof, Maintenance-free |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 3.30 Minute |
| Backup/Run Time (Half Load): | 13.50 Minute |
| Typical Battery Recharge Time: | 1 Day |
| Hot Swappable: | Yes | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 3.46" (88 mm) |
| Width: | 7.09" (180 mm) |
| Depth: | 11.89" (302 mm) |
| Form Factor: | Tower |
| Mounting Location: | Front |
| Weight (Approximate): | 5.50 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: | California (CEC) Battery Charger|ENERGY STAR V2.0 (USA)|NOM|TÃœV-C |
| Recycled: | No |
| Post-consumer-waste%: | 0% |
| Assembly Required: | No |
| Energy Star: | Yes |
| Green Premium: | Yes |
| Optimized Energy Efficiency: | Yes |
| Product Take Back Program: | Yes |
| RoHS Exemption Information: | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BE550G_ROHS_DECLARATION&p_FileName=BE550GKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760742&lang=en-us |
| EU RoHS Declaration URL: | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760742&lang=en-us |
| Environmental Profile Availability: | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010_EN |
| End of Life Manual Availability: | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| California Proposition 65 Warning: | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL: | https://www.energystar.gov/products/uninterruptible_power_supplies |
| Country of Origin: | Philippines |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 3 Year |
| Additional Warranty Information: | 3 years repair or replace |
| Directly Connected Equipment Guarantee: |
|
Technical specifications
Power
VA Rating
550VA
Wattage
330W
Topology
Standby
Waveform
Simulated Sine Wave
Input
Input Voltage
120V
Output
Output Voltage
120V
Receptacles
4× NEMA 5-15R
Features
Form Factor
Tower
Connectivity
["USB""HTTP/Web Management"]
Condition
New
Dimensions
88 × 180 × 302 mm (3.46 × 7.09 × 11.89 in)
Weight
5.5kg
Manufacturer Warranty
3 years
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (165 W)
9.0 min
Full load (330 W)
3.3 min
W
Estimated runtime
—min
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Shipped across Canada
Shipped from our Canadian warehouse. See shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the full manufacturer warranty registered to you on receipt.
14 years in business
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile — we'll spec the right UPS within one business hour.

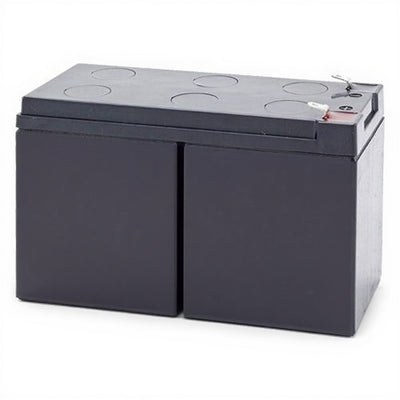

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3–5 years. We stock the matching replacement cartridges — Canadian warranty.
Bookmark this page
before you need it.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
