About this UPS

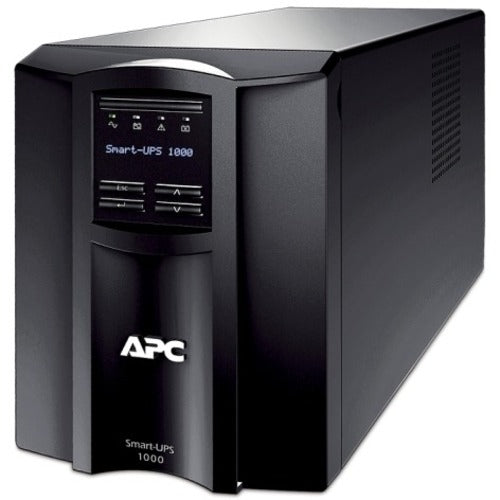

APC by Schneider Electric Smart-UPS 1000VA LCD 100V
| UPC | 731304290872 |
| Tower - 4 Hour Recharge - 100 V AC Input - 100 V AC Output - Sine Wave - Serial Port - USB - 8 x NEMA 5-15R - 8 x Battery/Surge Outlet | |
| General Information | |
|---|---|
| Manufacturer: | Schneider Electric SA |
| Manufacturer Part Number: | SMT1000J |
| Manufacturer Website Address: | http://www.schneider-electric.com |
| Brand Name: | APC by Schneider Electric |
| Product Line: | Smart-UPS |
| Product Name: | Smart-UPS 1000VA LCD 100V |
| Marketing Information: | Over 20 million units sold - the UPS you can trust |
| Product Type: | Line-interactive UPS | Technical Information |
| Plug/Connector Type: | NEMA 5-15P |
| Receptacle Type: | NEMA 5-15R |
| Receptacle Detail: | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets: | 8 |
| Protection Type: | Surge |
| Cord Length: | 6 ft | Power Description |
| Load Capacity (VA): | 1 kVA |
| Load Capacity (Watt): | 670 W |
| Input Voltage: | 100 V AC |
| Input Current: | 10 A |
| Output Voltage: | 100 V AC |
| Waveform Type: | Sine Wave |
| Surge Energy Rating: | 459 J | Management |
| Alarm: |
|
Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes |
| Total Number of Expansion Slots: | 1 | Battery Information |
| Number of Batteries: | 1 |
| Battery Characteristics: | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry: | Lead Acid |
| Typical Battery Recharge Time: | 4 Hour | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Sound Emission: | 40 dB | Physical Characteristics |
| Color Family: | Black |
| Product Color: | Black |
| Height: | 8.86" (225.04 mm) |
| Width: | 6.77" (171.96 mm) |
| Depth: | 17.28" (438.91 mm) |
| Form Factor: | Tower |
| Weight (Approximate): | 20.96 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Approximate - based on a single manufacturer anchor point. Estimates are roughest near very light or very heavy loads.
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
