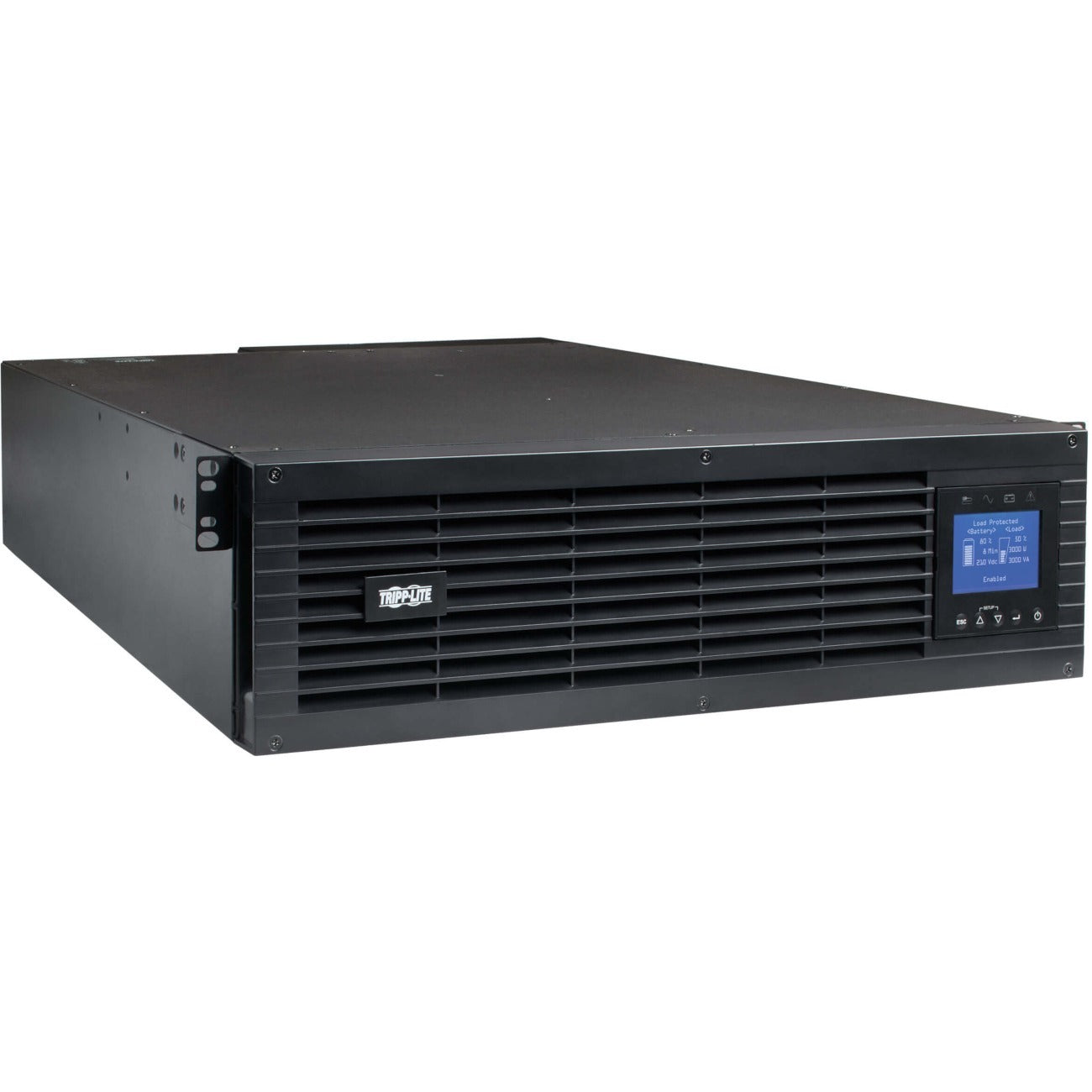

Tripp Lite by Eaton SmartOnline SU5KRT3UHVMB 5kVA Rack/Tower UPS
| UPC | 0037332237958 |
| 3U Rack/Tower - 3 Hour Recharge - 5 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Serial Port - 2 x NEMA L6-30R, 2 x NEMA L6-20R - TAA Compliant | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU5KRT3UHVMB |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Model: | SU5KRT3UHVMB |
| Product Name: | SmartOnline SU5KRT3UHVMB 5kVA Rack/Tower UPS |
| Marketing Information: |
Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss Tripp Lite's SU5KRT3UHVMB Unity Power Factor UPS system with Maintenance Bypass Switch and Detachable PDU protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Unity Power Factor design enables full 5000VA / 5000W output capacity when used with hardwire 208/240V input power (output de-rates to 4800W at 208V with included L6-30P cord option). In double-conversion mode, this UPS system maintains perfect output by continuously converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with ±1% voltage regulation and zero transfer time between online and battery modes. Featuring true on-line, double-conversion operation, Tripp Lite's SmartOnline ® SU5KRT3UHVMB provides the highest level of UPS power protection for critical server, network and telecom equipment. High Availability Configuration Offers Reliable, Expandable Battery Backup Included Maintenance Bypass Switch is mounted on a detachable Bypass PDU that securely mounts to the rear-rails of a 4 post rack enclosure and remains safely in-place powering your equipment during UPS maintenance. The UPS connects to the Bypass PDU using a sophisticated blind-mate connector set with self-aligning guide-pins to ensure safe and reliable whole-UPS replacement with zero downtime for connected equipment. UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 14 minutes of support at half load and 5 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. Advanced temperature-controlled battery charge management system provides efficient recharge and enhanced battery lifespan. For mission critical applications demanding continuous uptime, the 5kVA UPS can provide expandable runtime with optional BP192V12RT3US external battery pack (sold separately). Battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries. Economy Mode Helps the Environment and Your Cash Flow Operates with >98% full-load efficiency in optional economy mode significantly reducing BTU heat output and operating energy costs. Intuitive Front-Panel Interface offers Convenient Monitoring Front-panel LEDs indicate line power, AC output, On-battery mode, and Fault conditions. The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration. Pre-installed WEBCARDLXMINI Network Interface Offers 24/7 Access Pre-installed Java-free HTML5-based WEBCARDLXMINI interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. Advanced Communications Ports USB and DB9 ports with included cabling enable data-saving unattended shutdown of connected systems when used with Tripp Lite's free downloadable PowerAlert ® software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: |
|
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Overload Protection: | Yes |
| Transfer Time: | 0 ns |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 5 kVA |
| Load Capacity (Watt): | 5 kW |
| Input Voltage: | 230 V AC |
| Output Voltage: |
|
| Input Frequency: | 60 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 1680 J | Management |
| Network Management: | SNMP/Telnet/SSH |
| Alarm: | UPS Power Condition | Controls/Indicators |
| Status Indicators: |
Front Panel LCD Display:
4 Front-Panel LEDs:
|
Interfaces/Ports |
| Serial Port: | Yes |
| EPO Port: | Yes |
| USB (HID Compliant) Port: | Yes | Battery Information |
| DC System Voltage: | 192 V DC |
| Battery Characteristics: | Valve-regulated |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 14 Minute |
| Typical Battery Recharge Time: | 3 Hour |
| Hot Swappable: | Yes |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 122 °F (50 °C) |
| Maximum Operating Elevation: | 6562 ft (2000097.60 mm) |
| Sound Emission: | 67 dB |
| Thermal Dissipation: | 1050 BTU/h | Physical Characteristics |
| Height: | 5.16" (131 mm) |
| Width: | 17.52" (445 mm) |
| Depth: | 35.51" (902 mm) |
| Rack Height: | 3U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 54.98 kg | Miscellaneous |
| Package Contents: |
|
| Software Included: | PowerAlert |
| Energy Star: | Yes |
| Country of Origin: | Taiwan |
| TAA Compliant: | Yes |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
