Qualifying a higher-capacity UPS battery in an existing cabinet: 12AVR100 to 12AVR130
An anonymised communications installation needed more battery autonomy without replacing its existing cabinet. The proposed string moved from Deka Unigy I 12AVR100 batteries to 12AVR130 batteries only after the cabinet manufacturer confirmed that the larger top-terminal blocks would fit. The available record supports the selection decision, not a completed installation or a measured runtime result.

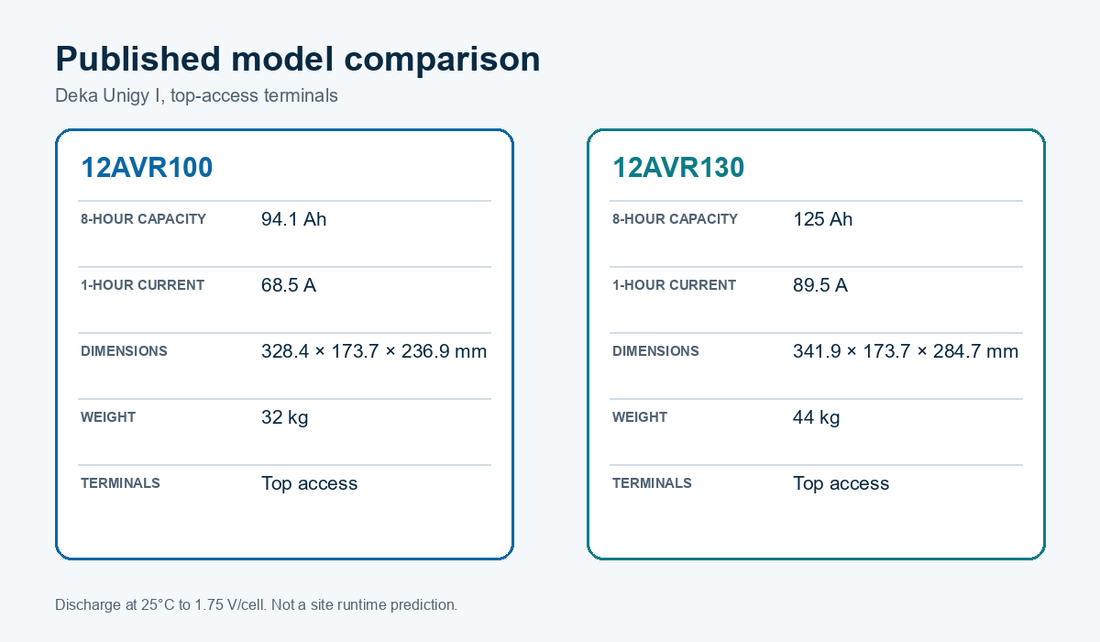

Figure 1: Published East Penn data used for the cabinet-fit and electrical qualification. Capacity and one-hour current use the 1.75 V-per-cell basis at 25 degrees C. Ratings are not a site runtime prediction.
The request was more autonomy, not a new battery room
The customer requirement was direct: keep the UPS and existing battery cabinet, but examine whether the replacement string could provide more autonomy. The existing proposal used 12AVR100 batteries. A larger cabinet would have added footprint, construction, cabling, handling and coordination. Replacing the UPS would have widened the project even further.
GDF therefore treated the cabinet as a constraint, not as proof that any larger battery would fit. The working alternative was the Deka Unigy I 12AVR130. The cabinet manufacturer was asked to confirm the physical arrangement before the proposal advanced. That confirmation is the central field observation in the anonymised record.
The record does not identify the customer, site, UPS model, string count, DC bus voltage, connected load, ambient temperature or discharge endpoint. It also does not state that the work was installed or tested. Those limits matter. A higher ampere-hour rating can support a higher-capacity design, but it does not by itself establish how many minutes the UPS will carry the actual load.
Correcting the terminal description before comparing the models
The internal field note called 12AVR100 and 12AVR130 front-terminal batteries. Current East Penn literature identifies both as top-access models with a 1/4-20 threaded insert. East Penn lists the Unigy I family in two groups: top-terminal designs from 27 to 130 Ah and front-access designs from 100 to 200 Ah. The 12AVR100ET and other ET suffix models are the front-access variants.
The distinction affects cabinet design and service access. A top-access terminal requires vertical clearance for hardware, insulated tooling and protective covers. A front-access terminal concentrates the connections on the cabinet face. Similar capacity does not make the formats interchangeable.
The proposal is therefore described as a move between two top-terminal Unigy I batteries. The cabinet-maker confirmation remains useful evidence of fit, but it should not be read as approval for an ET model or another cabinet arrangement.
What changed between 12AVR100 and 12AVR130
Both models are 12 V AGM valve-regulated lead-acid monoblocs. Both use top-access threaded inserts, flame-retardant polypropylene cases rated UL 94 V-0, a published float setting of 13.50 V per battery at 25 degrees Celsius, and a ten-year design life in float service at 25 degrees Celsius. The larger model changes capacity, discharge capability, height, length and handling weight.
| Published item | 12AVR100 | 12AVR130 | Selection effect |
|---|---|---|---|
| Nominal voltage | 12 V | 12 V | Series block count is not changed by the model swap |
| 8-hour rating to 1.75 V per cell | 94.1 Ah | 125 Ah | Higher published capacity, not a direct runtime percentage |
| One-hour discharge current to 1.75 V per cell | 68.5 A | 89.5 A | The larger model has the higher published one-hour current |
| Length | 328.4 mm | 341.9 mm | Adds 13.5 mm per block in the long direction |
| Width | 173.7 mm | 173.7 mm | Published width is unchanged |
| Height | 236.9 mm | 284.7 mm | Adds 47.8 mm of height |
| Weight | 32 kg | 44 kg | Adds 12 kg per block and increases cabinet loading |
| Terminal | Top access, 1/4-20 threaded insert | Top access, 1/4-20 threaded insert | Connection style remains aligned, clearance still requires confirmation |
The 12AVR130 rating is 30.9 Ah higher than the 12AVR100 rating on the same published eight-hour basis. That is about 32.8 percent more ampere-hours. The one-hour published discharge current is 21.0 A higher, about 30.7 percent. These comparisons help screen the alternative because the manufacturer uses the same voltage and discharge endpoints in both flyers.
The percentages are not a runtime promise. UPS autonomy depends on the actual DC load, string count and arrangement, end voltage, cable drop, inverter behaviour, temperature, battery age and recharge state. Runtime also changes nonlinearly with discharge rate. A quote should use manufacturer discharge data or approved sizing software for the exact operating point.
The cabinet-fit gate came before the commercial commitment
The main physical concern was not width. Published width is the same for both batteries. The 12AVR130 is 47.8 mm taller, 13.5 mm longer and 12 kg heavier per block. A multi-block string magnifies the weight difference. The total cabinet and floor loading must therefore be calculated from the exact block count, shelf arrangement and support rating.
Figure 2: The larger model advances only after the cabinet, electrical and runtime inputs pass separate gates.
The cabinet manufacturer confirmed that the larger batteries fit the proposed arrangement. A full release still requires more than an outline drawing. The review must preserve access to every terminal, keep conductors within their bend radius, maintain barriers and covers, allow the intended lifting method, and keep the cabinet upright as required by East Penn.
Electrical qualification is equally important. The string must retain the UPS manufacturer's required number of 12 V blocks and series arrangement. Charger float voltage, current limit, temperature compensation and recharge duty must suit the larger capacity. Existing interconnects and overcurrent protection must be checked for the applicable discharge current and fault duty. The charger may take longer to restore a larger string after discharge even when the float voltage remains the same.
Ventilation and temperature cannot be assumed from the case type. East Penn states that VRLA batteries can emit hydrogen during normal operation and requires ventilation according to applicable standards and codes. The operating manual also states that temperature affects capacity and life. Cabinet clearances, room conditions and ventilation therefore remain project inputs.
What the selection record proves, and what it does not
The field record proves that a customer asked for more autonomy, GDF evaluated 12AVR130 instead of 12AVR100, and the cabinet maker confirmed physical fit for the larger batteries. East Penn's current product documents support the model identity, top-terminal format, capacity, dimensions, weight, float voltage, design-life statement and published discharge data.
The record does not prove the installed load, runtime before the change, runtime after the change, final string count, charger recovery time, cabinet structural margin, protection settings, installation date or acceptance result. A separate telecom cabinet quote mentioned roughly 225 to 235 minutes and an estimated eight-to-ten-year life. That quote belonged to another configuration and is not evidence for the 12AVR100-to-12AVR130 selection.
Figure 3: The case supports a qualified model-selection pattern. It does not support a measured site outcome.
Published battery ratings and the missing site load record keep model capacity separate from site runtime. A capacity increase can be quoted accurately as a model and rating change. A runtime increase must be calculated for the exact system and, when material, verified under an approved test. The two statements are not interchangeable.
Installation and acceptance controls
East Penn defines a battery string as a series-connected system of 12 V batteries. Its manual states that installations should be supervised by personnel familiar with batteries and battery safety precautions. It also requires insulated tools, protective equipment, correct polarity, upright installation, verification of connection torque and resistance, and records of string voltage, charger voltage, individual float voltage, temperature and connection condition.
For the proposed upgrade, the method of procedure should identify the UPS operating state, isolation boundary, stored-energy hazard, lifting plan, temporary protection, block sequence, torque values, polarity checks, string voltage check, connection-resistance baseline and charger restoration. The work should include hold points before energization and before the UPS is returned to normal service.
The acceptance record should distinguish three results:
- Physical acceptance: the blocks, barriers, covers, conductors and access clearances match the approved cabinet arrangement.
- Electrical acceptance: string polarity and voltage are correct, the charger reaches the approved float range, alarms are clear and connection readings are recorded.
- Performance acceptance: any promised autonomy is supported by an approved calculation and, where required, a controlled discharge or load test with load, temperature and endpoint recorded.
UPSPLUSBATTERY can support the model and string-selection record, while an installed-system intervention belongs under a controlled field scope. GDF Technologies provides UPS battery replacement and post-installation testing across Canada when the work requires cabinet access, charger checks, lifting, recycling and an acceptance report.
Procurement schedule for a higher-capacity string
A purchase description should not say only “upgrade to 130 Ah.” It should identify the exact manufacturer and model, count, nominal string voltage, series or parallel arrangement, terminal hardware, connector set, approved cabinet drawing, shelf position, individual and total weight, charger settings, required labels, recycling scope and acceptance records.
The schedule should also state the evidence boundary. The 12AVR130 is published at 125 Ah on the eight-hour basis, despite the model name. The 12AVR100 is published at 94.1 Ah on the same basis. The exact published ratings should control the comparison.
Substitutions require a fresh check. A front-access ET model, another 12 V AGM battery, or a nominally similar 130 Ah product may change dimensions, terminals, discharge tables, float limits, flame rating, lifting points and warranty requirements. Cabinet-maker approval for one model does not transfer automatically to another.
Decision rule
A higher-capacity battery can remain inside an existing cabinet when four records agree: the UPS requires the same nominal block voltage and string arrangement, the cabinet manufacturer approves the exact model and loading, the charger and protection are suitable, and the required autonomy is calculated from the correct discharge data.
For the anonymised proposal, moving from 12AVR100 to 12AVR130 passed the recorded cabinet-fit question and increased the published capacity basis. No measured runtime or completed-installation result is claimed. Before releasing an equivalent order, confirm the UPS model, DC bus, block count, load in kW, end voltage, temperature, cabinet drawing, shelf rating, charger current and acceptance method.
