Buying runtime within the same footprint: stepping the cell rating before enlarging the cabinet

How a telecom-style cabinet gained runtime by moving from the 12AVR100 to the 12AVR130 cell, with a larger cabinet held as the next tier.

UPSPLUSBATTERY supplied and specified this runtime upgrade, anonymised at the customer's level of detail: no customer name, site, or price is published. The engagement facts trace to an anonymised entry in GDF's field case library, and the sizing method is presented exactly as recognised practice applies it.

Operating context

The customer ran a telecom-style external battery cabinet feeding a UPS, built from front-terminal valve-regulated lead-acid cells in a fixed enclosure. Cabinets of this kind are specified to the cell: the block model, the count in series, and the physical trays are chosen together, and the enclosure has only so much room. That fixed room is the constraint the whole engagement turned on.

Front-terminal cells are the usual choice for this format because they are serviceable from the front of a cabinet, which is what makes a like-for-like or step-up swap practical without rebuilding the enclosure.

Observed need and the constraint

The trigger was ordinary: the customer wanted more runtime than the installed string delivered. The constraint was the part that shaped the answer. The cabinet footprint was fixed, so the question was not simply "how many more batteries" but "how much more runtime can this exact enclosure hold before it has to grow." When runtime falls or a target rises, the replacement plan facilities teams use starts with the cells that already fit, not with a new cabinet.

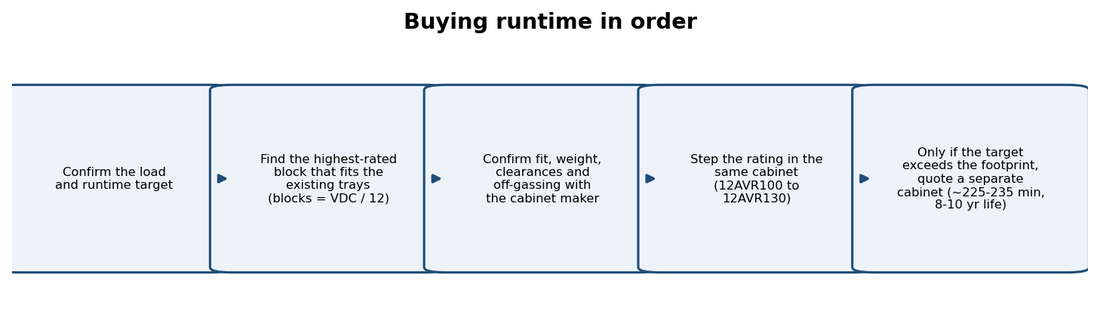

Engineering approach: runtime within a fixed cabinet

Runtime in a fixed cabinet is bought by stepping the rating of the block that fits the existing trays before enlarging the enclosure. Front-terminal cells of the same family come in a range of high-rate ratings, expressed in watts per cell for this family, and a higher-rated cell is often the same case size or slightly larger, so it can replace a lower-rated one in the same trays when the fit is confirmed. That is the first lever to reach for, and it is how a buyer specs capacity without overbuying a larger cabinet than the target needs. UPSPLUSBATTERY's guide to runtime and battery cabinets shows how to spec runtime capacity without overbuying.

The number of cells is not a free choice. In a series string, the block count follows the nominal DC bus voltage, one 12 V block for every 12 volts of bus, so a 192 V bus carries 16 blocks and a 240 V bus carries 20. That fixes how many cells the cabinet holds; the rating of each cell is what the runtime step then works on.

Options considered and the decision

Two routes to more runtime were on the table, and their order is the point of the engagement.

Step the cell rating in the same cabinet. Selected first. GDF moved the string from the DEKA 12AVR100 to the 12AVR130 front-terminal cell, a higher-rated block of the same family and format, after confirming with the cabinet maker that the larger cell still fit the trays. This bought runtime inside the existing footprint, with no change to the enclosure.

Enlarge to a separate cabinet. Held as the next tier. Where a target exceeds what the footprint can hold, a separate telecom-grade cabinet is the right answer, and one was quoted at roughly 225 to 235 minutes of runtime with an estimated 8 to 10 year life. The discipline is to reach this tier only after the in-footprint step is exhausted, not before.

Scope of the work

The scope covered supply of the higher-rated front-terminal cells for the existing string, specified by exact cell model, count, and series arrangement, with fit confirmed against the installed cabinet. GDF's default cell for this duty is a DEKA High-Rate flame-retardant front-terminal block, and the selection was validated for fit and off-gassing with the cabinet before it was offered.

The scope did not assume the larger cabinet. Quoting the separate telecom-grade enclosure was kept as a documented next tier the customer could choose if the target rose beyond the footprint, not folded into the in-footprint step.

Verification and fit confirmation

The step that turns a rating change into a safe design is fit confirmation. A higher-rated cell can share the family and the nominal size and still differ enough in dimensions, weight, or terminal position to matter in a packed cabinet, so the fit was re-confirmed with the cabinet manufacturer before the cells were offered. A mathematically adequate battery is not a finished design until the exact block quantity, orientation, terminal access, clearances, weight, heat, cabling, protection, and service path are verified.

Off-gassing is part of that check. Lead-acid cells vent under charge, and a denser, higher-rated string in the same enclosure has to be validated against the cabinet's ventilation, which is why off-gassing sits alongside physical fit in the confirmation with the manufacturer.

Results, measurement basis, and limitations

The published result is deliberately precise. What is claimed: the string was stepped from the 12AVR100 to the 12AVR130 cell within the same cabinet after fit confirmation, buying runtime inside the existing footprint; and a separate telecom-grade cabinet was quoted at roughly 225 to 235 minutes with an estimated 8 to 10 year life as the next tier.

What is not claimed: no runtime figure in minutes is published for the in-footprint step, because the achievable minutes depend on the load and the specific cells, and no site load was published to anchor one. No price is published. The 225 to 235 minute figure belongs to the separately quoted larger cabinet, not to the in-footprint step, and the achievable runtime at any site is confirmed against that site's load, cells, and cabinet.

Practical lessons

Four lessons from this engagement generalise to most cabinet-based UPS strings.

Step the rating before you enlarge the box. A higher-rated cell of the same family in the same slots is the first lever for more runtime, and reaching for a bigger cabinet first tends to overbuy.

Cell count follows the bus, cell rating follows the target. The series block count is set by the DC bus voltage, one 12 V block for every 12 volts; runtime is then bought through the rating of each of those cells.

Fit is confirmed, not assumed. A cell can match the family and the nominal size and still not fit a packed cabinet, so fit, weight, clearances, and off-gassing are re-confirmed with the cabinet maker for any block change.

Hold the larger cabinet as a documented tier. When a target genuinely exceeds the footprint, a separate telecom-grade cabinet is the right answer, quoted as its own option rather than assumed into the first one.

Sources and next step

Product and company names mentioned are the trademarks of their respective owners.

If you need more runtime from an existing UPS battery cabinet, UPSPLUSBATTERY's guide to how buyers spec runtime capacity without overbuying is the place to start, and a same-footprint cell step is often the first option worth pricing.
