Qualifying an urgent VRLA UPS battery substitute when the preferred stock is unavailable

An urgent battery request can become unsafe when availability is allowed to replace engineering. In an anonymized GDF Technologies quotation case, the usual high-rate, flame-retardant VRLA batteries were unavailable until a September arrival. The response did not hide the lead time or present the first available block as interchangeable. The constraint was disclosed in the first reply and alternatives were offered for the immediate need. The field record does not identify the selected substitute, the UPS model, quantity, runtime, price or final installation result. Those details are not inferred here.

The useful decision is the qualification sequence. A substitute must match the electrical duty, mechanical envelope, connection arrangement, casing requirement and installed-system assumptions before it can be offered as an equivalent. Availability determines which qualified options can meet the date. It does not determine compatibility.

The urgent condition

The preferred battery family combined high-rate discharge performance with a flame-retardant enclosure class suitable for the quoted application. Inventory was exhausted and replenishment was expected in September. Waiting for the regular shipment might have preserved the usual part selection, but it did not meet the customer's immediate timing. Offering an unqualified commodity battery would have solved only the warehouse problem while transferring electrical, runtime, thermal and safety risk to the site.

UPS batteries are not interchangeable merely because both labels show 12 V and a similar amp-hour value. Short-duration UPS duty is often specified by watts per cell at a defined duration and end voltage. Terminal position, polarity, case size, weight, connector, internal resistance and maximum discharge capability affect fit and performance. The UPS charger, string voltage, block count and low-voltage cutoff define another set of limits. A casing or flame-retardancy requirement adds a procurement attribute that must be verified from the exact product data, not from a distributor category.

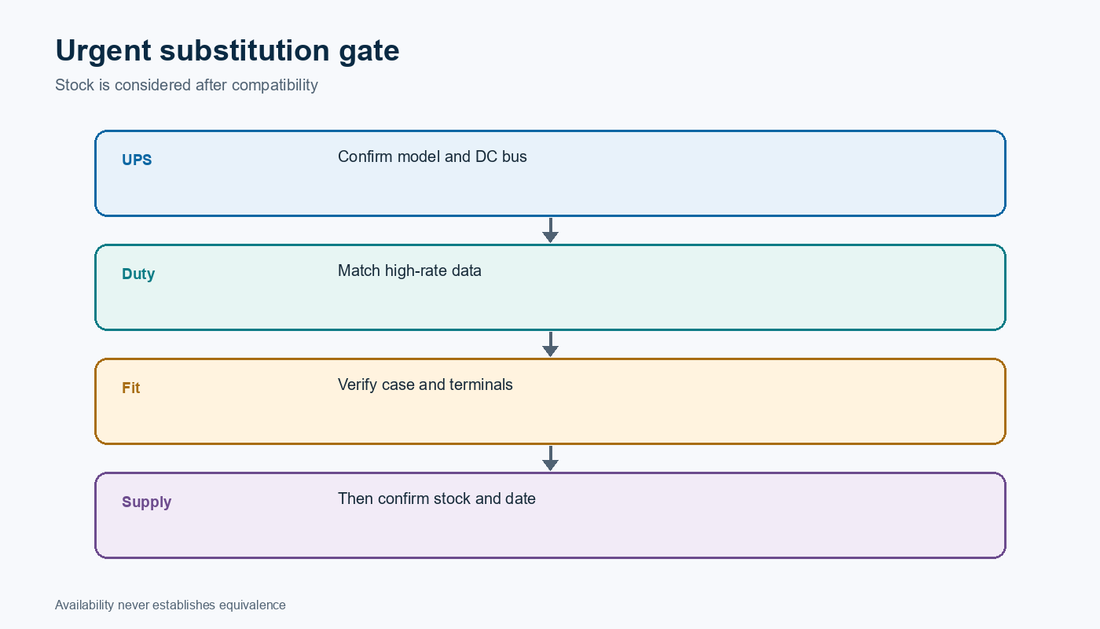

The availability gate comes after electrical, mechanical and safety qualification. A stocked battery that fails an earlier gate is not an equivalent.

Evidence required before calling a battery equivalent

The installed UPS establishes the starting point. The nameplate and battery compartment or external cabinet must identify the model, DC bus, number of blocks, series and parallel topology, current battery part, connector and available clearances. If the existing battery is not the approved or original configuration, its label cannot be treated as the design basis without cross-checking the UPS documentation.

The replacement data then needs to establish the following:

• Nominal block voltage and the exact series count required by the DC bus.
• High-rate constant-power performance at the required autonomy, temperature and end voltage.
• Dimensions, orientation, terminal type, terminal position, polarity, weight and service clearances.
• Internal resistance or conductance baseline and available short-circuit information.
• Approved charge voltage, temperature compensation and recharge limits.
• Enclosure material and the exact flame-retardancy or other casing requirement specified for the site.
• Certifications, date code, warranty, storage history and transportation condition.

The UPS battery selection reference in the GDF library applies a conservative rule: replace in kind unless a lifecycle reason justifies a change, and treat a chemistry or enclosure-class change as an engineering change [1]. The runtime and string-design reference adds that a mathematically adequate battery is not finished until fit, orientation, terminal access, cable routing, protection, heat, weight and service path are confirmed [2].

Qualification matrix for the urgent substitution

The matrix keeps two questions separate. "Can this battery perform safely in the installed UPS?" is an engineering question. "Can it arrive when required?" is a supply question. The quotation is releasable only when both answers are supported.

Equivalent means that the required duty and installation conditions are supported by exact data. A difference can be acceptable only when its effect is assessed and approved.

Options considered

The first option was to wait for the preferred high-rate, flame-retardant stock. It preserved the usual configuration and reduced engineering change, but the September lead time did not meet the urgent need. The second option was to qualify a technically equivalent battery already available through another supply route. That option could meet timing, but only after the exact model cleared the electrical, mechanical, safety and provenance gates. The third option was a temporary or partial intervention, such as replacing only a failed subset. That can create mixed-age or mixed-performance strings and was not treated as a default solution.

No option was described as universally superior. If the UPS could safely remain in service until the regular stock arrived, waiting might be the lowest-change path. If battery condition or business continuity made delay unacceptable, a qualified substitute could be justified. If neither path could be supported, the correct response was to identify the constraint and avoid a false promise.

Canadian buyers who already have a confirmed battery specification can review all UPS replacement batteries. The collection is a purchasing route, not an engineering cross-reference. Model, string and fit still need to be confirmed before ordering.

Quotation controls

The first customer reply should state the availability of the preferred product, the date basis for any replenishment estimate, the information still needed from the installed UPS and whether alternatives are being qualified. It should not imply that a substitute is approved before the technical review is complete. A useful quotation separates the preferred option and each alternative, then identifies differences, assumptions, exclusions and validity.

The line item for a substitute should carry the exact manufacturer and model, quantity, voltage, configuration, casing statement, warranty and delivery basis. Labour, freight, recycling, installation, torque, commissioning and runtime validation should be stated separately. If the quote depends on a photo, cabinet drawing, field measurement or manufacturer confirmation, that condition belongs beside the price and lead time.

The UPSPLUSBATTERY UPS battery FAQ explains why model identification, age, temperature and runtime expectations matter before purchase. It is relevant while collecting the installed-system inputs, not as evidence that any particular substitute fits.

Installation and verification boundary

A qualified product still needs controlled installation. The work package confirms isolation, stored DC energy, appropriate PPE, insulated tools, polarity, string sequence, connection torque, cable condition, ventilation and disposal. All blocks in a series string should be of compatible type, age and state. A mixed string can create unequal voltage distribution and early failure even when every block is nominally 12 V.

After installation, technicians record open-circuit and float values, verify the charger and alarms, inspect for heat or abnormal voltage spread and perform the authorized functional test. A self-test is not the same as a measured capacity test. A claimed runtime requires a defined load, start condition, temperature, end voltage and recorded result. When the site cannot authorize a discharge, the report should say that runtime was not proven.

The replacement is closed with traceable receiving, installation and operating records. Runtime remains unverified unless a controlled capacity test is completed.

Result supported by the case evidence

The field evidence supports three facts: the usual high-rate, flame-retardant product was out of stock until a September arrival; GDF disclosed that lead time in the first response; and alternatives were offered for an immediate requirement [3]. It also supports the resulting business rule: surface battery stock and lead time early rather than letting an urgent customer wait without a decision path.

The evidence does not identify the substitute, confirm that an order was placed, record an installation or report runtime. This distinction matters. The case demonstrates honest supply communication and the need for technical qualification, not the performance of an unnamed alternative.

Procurement record required before release

An urgent substitute is ready for purchase only when the UPS model and DC configuration, existing battery identity, required autonomy, exact substitute data sheet, cabinet fit, terminal arrangement, casing requirement, charger compatibility, lot and date-code condition, delivery commitment, installation scope and verification method are recorded. If any item remains open, the quotation should name the assumption and the approval needed. The fastest safe response is not an immediate part number. It is a clear path from the installed system to a qualified product and a delivery date the supplier can support.

Sources

1. GDF Technologies internal knowledge library, UPS Replacement Battery Varieties for Technical Selection and Retrofit Safety.
2. GDF Technologies internal knowledge library, UPS Battery Sizing, Runtime Validation and String Design.
3. GDF Technologies internal field evidence, GDF Field Case Library: Engineering and Quoting Patterns, anonymized stock-aware substitution entry.
