Sizing a replacement VRLA battery string from DC bus voltage

How the DC bus voltage sets the block count, and how the right flame-retardant cell is chosen.

UPSPLUSBATTERY sizes and selects a replacement valve-regulated lead-acid (VRLA) string with the method below, drawn from an anonymised GDF field pattern. No customer, site, or price is published; the technical specifics that carry the method, the bus voltage, the block count, and the cell rating, are kept.

Operating context

Most people order a replacement UPS battery by part number, which works when the exact cartridge is known. It stops working the moment the string is built from separate 12 V monobloc batteries wired in series, which is how mid-size and large single-phase and three-phase UPS store their energy. For those systems, ordering the wrong count or the wrong cell is a common and expensive mistake, because the string has to match the UPS charger and the DC bus it was designed around.

The recurring question UPSPLUSBATTERY answers is therefore simple to state and easy to get wrong: how many batteries does this UPS need, and which cell is correct. The anonymised engagement here was a 288 VDC system that needed a full replacement string.

Observed condition and business risk

The string in the anonymised system had reached the end of its service life and needed replacement rather than a partial top-up. Recognised VRLA practice, applied through IEEE 1188, treats 80 percent of rated capacity as the end-of-life threshold, because capacity loss accelerates past that point and the ride-through the UPS promises can no longer be trusted. Mixing new blocks into an aged string does not restore that capacity; it ties new cells to the weakest old ones.

The business risk in a replacement order is not the price of the batteries. It is ordering a string that does not match the system: the wrong block count will not make up the DC bus voltage, and a cell with the wrong rating or the wrong casing class will either underperform or introduce a fire-safety compromise in an occupied room. The method below exists to remove that risk before the order is placed.

Engineering qualification: bus voltage sets the count

The first number to establish is the nominal DC bus voltage, because for a confirmed series string of 12 V monoblocs the block count follows directly from it. Dividing the nominal DC bus voltage by 12 gives the count: a 192 VDC system needs 16 blocks, a 240 VDC system needs 20, and the 288 VDC system in this engagement needs 24, all wired in series.

That division is a screening cross-check, not a design authority. It holds only for a confirmed series string of approved 12 V monoblocs. It must never be extrapolated to 2 V or 6 V cells, to centre-tapped or split buses, to parallel strings, or to integrated lithium cabinets, and the exact manufacturer battery configuration governs the final replacement design. The screening step tells you quickly whether a proposed count is even plausible; confirming the battery arrangement against the UPS documentation is what makes it correct.

Options considered and cell selection

With the count established at 24 blocks, the question becomes which 12 V cell. The choice is not a single specification but a set of checks the cell has to pass: the discharge rate the UPS demands, the charger voltage and current it will see, the physical dimensions and terminal type of the space it goes into, and the flammability class of its case.

For a 288 VDC, 24-block replacement of this duty, the field-proven selection is a high-rate flame-retardant VRLA monobloc rated 12 V, 33 Ah, and 119 W per cell, with a UL 94 V-0 case. High-rate matters because UPS discharge is a short, hard demand rather than a slow drain, and a cell optimised for that duty holds voltage better through the transfer. The casing class matters because UL 94 V-0 is the strongest of the common vertical self-extinguishing classifications for enclosure plastics, which is a meaningful safety property for batteries that live inside occupied facilities rather than dedicated battery rooms. Where a buyer is weighing an original cartridge against a compatible cell, UPSPLUSBATTERY explains what you are actually buying in its guide to OEM versus compatible replacement batteries.

Preferred does not mean automatic. The specific cell is confirmed against the charger profile, discharge duty, dimensions, terminals, and warranty before it is ordered. When a buyer wants more runtime, the first move is to step ampere-hours within the same footprint rather than enlarge the cabinet, and to re-confirm fit with the cabinet vendor before committing.

Scope of the replacement

A replacement-string order covers the verified count of matched cells, the interconnect hardware appropriate to the terminals, and the recovery of the old blocks for recycling through the appropriate stream. Lead-acid batteries are among the most successfully recycled industrial products, and returning them to that stream is part of a professional replacement rather than an optional extra.

The scope deliberately excludes anything the evidence does not support: no change to the UPS DC bus design, no substitution of a different cell format to save cost, and no runtime commitment beyond the approved configuration. A replacement string is not the moment to redesign the battery system.

Implementation and verification

The string is installed with the blocks in the confirmed series arrangement, every connection made with torque control and polarity verification, and a thermal check of the completed connections before the UPS is returned to normal operation. A UPS battery string is a stored-energy source that stays live even when the utility feed is off, so isolation appropriate to the equipment and the site rules comes first.

Verification confirms the UPS accepts the new string, charges it correctly, and carries its load on the inverter without alarm. The order is complete when the count matches the bus, the cell matches the charger, and the system runs clean, not when the last block is connected.

Results, measurement basis, and limitations

The published result is the method and the selection basis, applied to a 288 VDC, 24-block system: a full replacement string of high-rate, flame-retardant, UL 94 V-0 VRLA monoblocs, sized from the confirmed bus voltage and verified against the charger and the cabinet.

No runtime figure in minutes is published for any specific site, because runtime depends on the load, the temperature, the end voltage, and the battery condition, and a runtime claim requires a documented discharge basis with those conditions recorded. A buyer who needs a demonstrated autonomy figure should plan a discharge or runtime test as a separate, deliberate step rather than infer it from the ampere-hour rating alone.

Practical lessons

Three lessons generalise to most VRLA replacement orders.

The bus voltage is the anchor. For a confirmed 12 V monobloc series string, dividing the nominal DC bus voltage by 12 gives the block count as a screening check, and confirming the battery arrangement against the UPS documentation makes it a design. A count that does not make up the bus voltage is wrong before anything else is considered.

The cell is a set of checks, not a single number. Rate, charger match, physical fit, terminals, and casing class all have to pass before a cell is the right one, and a UL 94 V-0 flame-retardant case is a low-cost safety property where the batteries sit inside an occupied space.

Buy runtime by stepping ampere-hours within the footprint first. Enlarging the cabinet is the last move, not the first, and it is confirmed with the cabinet vendor before the order is placed.

Sources and how to order the right string

The ledger draws on GDF's anonymised field case library, UPSPLUSBATTERY's internal battery sizing and selection references, UL's published flammability classifications, and IEEE VRLA practice.

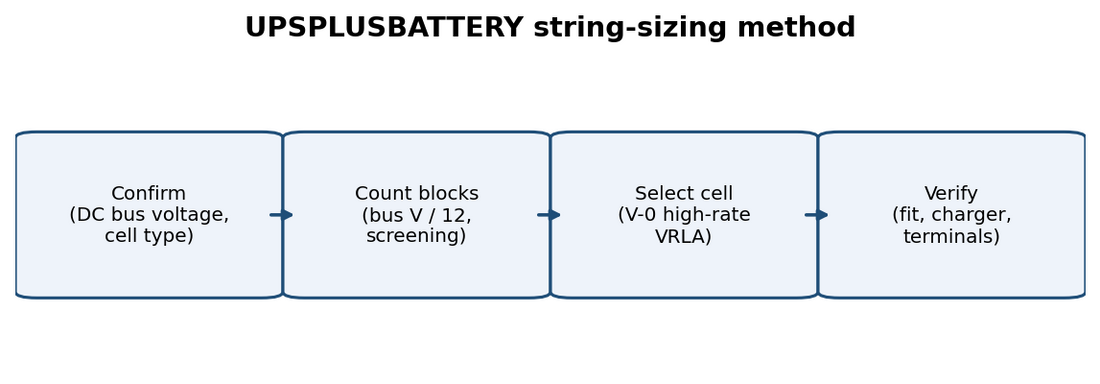

To order the correct string, confirm the nominal DC bus voltage (from the UPS or battery-string nameplate or the UPS documentation) and the existing cell first, then use the block count as a screening check before selecting a high-rate flame-retardant cell that passes the fit and charger checks. For a step-by-step replacement plan, UPSPLUSBATTERY documents the replacement plan facilities teams use.
