About this UPS

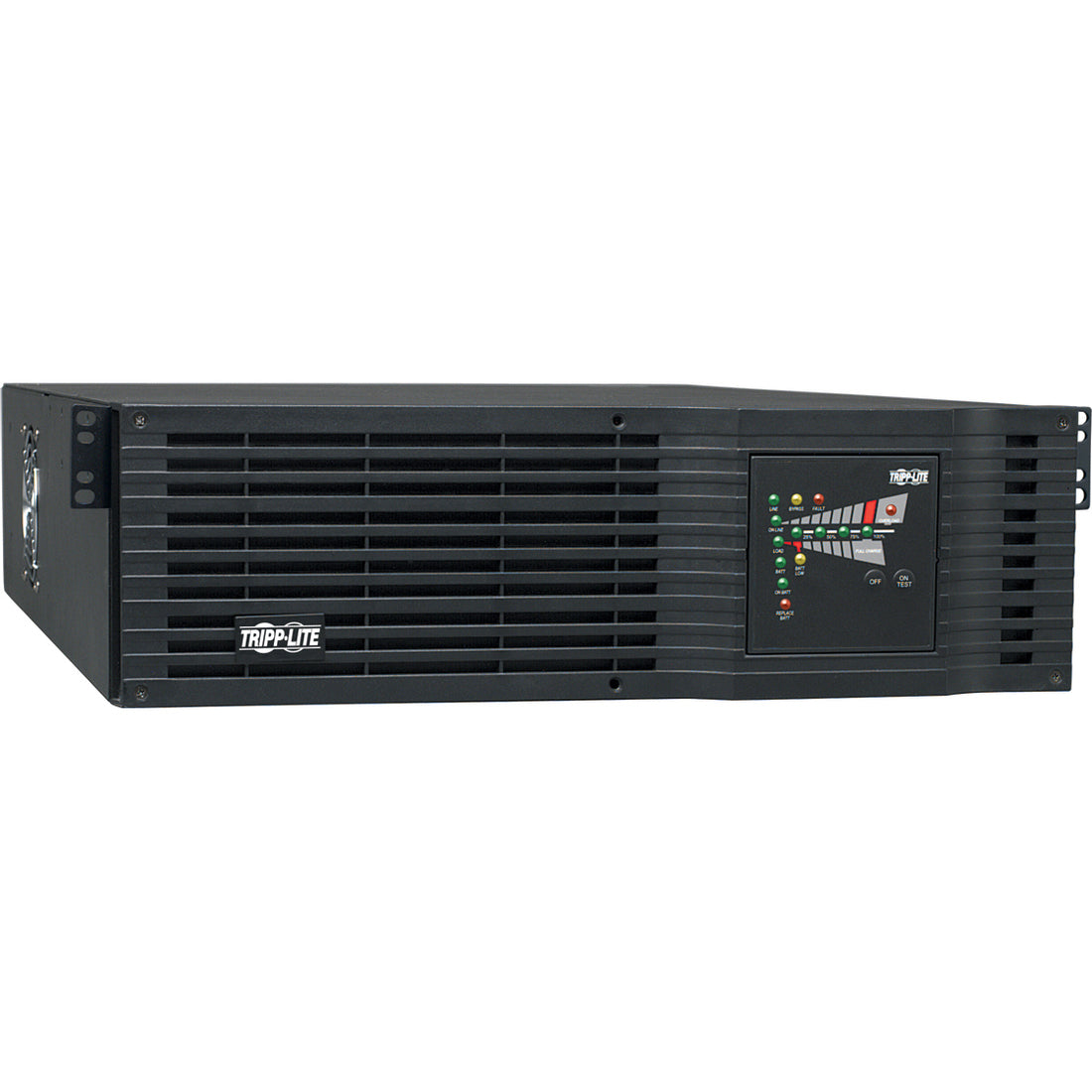

Tripp Lite by Eaton SmartOnline SU3000RTXR3UHW 3000 VA Tower/Rack Mountable UPS
| UPC | 0037332164636 |
| 3U Rack/Tower - 6 Hour Recharge - 12 Minute Stand-by - 110 V AC Input - 120 V AC, 120 V AC Output - Serial Port - USB | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU3000RTXR3UHW |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Model: | SU3000RTXR3UHW |
| Product Name: | SmartOnline SU3000RTXR3UHW 3000 VA Tower/Rack Mountable UPS |
| Marketing Information: | 3000VA / 3kVA online, double-conversion UPS system in 3U rackmount form factor for critical server, network and telecommunications equipment. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Hardwired AC input and output (L-N-G, 120V). Highly efficient operation in optional economy mode setting, saves BTU heat output and energy costs. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions via all 3 network interfaces. Multi-stage metered current monitoring and battery charge status LEDs. Dataline surge suppression for dialup, DSL or network ethernet connection. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: | Hardwired |
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns | Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.40 kW |
| Input Voltage: | 110 V AC |
| Output Voltage: | 120 V AC | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 12 Minute |
| Backup/Run Time (Half Load): | 30 Minute |
| Typical Battery Recharge Time: | 6 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 5.20" (132.08 mm) |
| Width: | 17.80" (452.12 mm) |
| Depth: | 29.50" (749.30 mm) |
| Rack Height: | 3U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 50.48 kg | Miscellaneous |
| Package Contents: |
|
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
