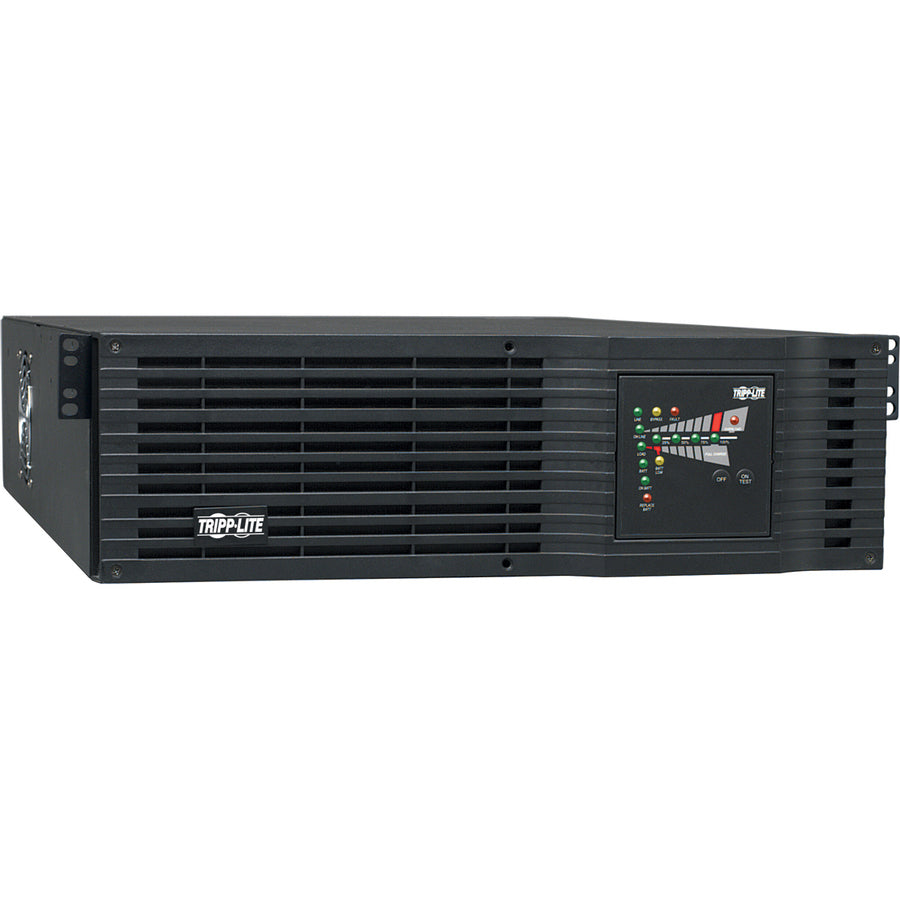

Tripp Lite by Eaton SmartOnline SU3000RTXR3UHW 3000 VA Tower/Rack Mountable UPS - SU3000RTXR3UHW - Double Conversion Online UPS, 110 V AC, Rack/Tower, 3U, 120 V AC, Hardwired, SmartOnline, 30 Minute, 12 Minute, 3 kVA/2.40 kW

Tripp Lite by Eaton SmartOnline SU3000RTXR3UHW 3000 VA Tower/Rack Mountable UPS - SU3000RTXR3UHW - Double Conversion Online UPS, 110 V AC, Rack/Tower, 3U, 120 V AC, Hardwired, SmartOnline, 30 Minute, 12 Minute, 3 kVA/2.40 kW-UPSPLUSBATTERY

Tripp Lite by Eaton SmartOnline SU3000RTXR3UHW 3000 VA Tower/Rack Mountable UPS - SU3000RTXR3UHW - Double Conversion Online UPS, 110 V AC, Rack/Tower, 3U, 120 V AC, Hardwired, SmartOnline, 30 Minute, 12 Minute, 3 kVA/2.40 kW

/
  • Delivery across Canada and USA
  • Low stock - 1 item left
  • Inventory on the way
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SU3000RTXR3UHW
  • Input Voltage: 110 V AC
  • Form Factor: Rack/Tower
  • Rack Height: 3U
  • Plug/Connector Type: Hardwired
  • Product Family: SmartOnline
  • Backup/Run Time (Half Load): 30 Minute
  • Backup/Run Time (Full Load): 12 Minute
  • Load Capacity: 3 kVA/2.40 kW

    • Marketing Information:

    3000VA / 3kVA online, double-conversion UPS system in 3U rackmount form factor for critical server, network and telecommunications equipment. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Hardwired AC input and output (L-N-G, 120V). Highly efficient operation in optional economy mode setting, saves BTU heat output and energy costs. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions via all 3 network interfaces. Multi-stage metered current monitoring and battery charge status LEDs. Dataline surge suppression for dialup, DSL or network ethernet connection.

Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SU3000RTXR3UHW
  • Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Model:SU3000RTXR3UHW
  • Product Name:SmartOnline SU3000RTXR3UHW 3000 VA Tower/Rack Mountable UPS

    • Marketing Information:

    3000VA / 3kVA online, double-conversion UPS system in 3U rackmount form factor for critical server, network and telecommunications equipment. Online, double-conversion UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Hardwired AC input and output (L-N-G, 120V). Highly efficient operation in optional economy mode setting, saves BTU heat output and energy costs. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions via all 3 network interfaces. Multi-stage metered current monitoring and battery charge status LEDs. Dataline surge suppression for dialup, DSL or network ethernet connection.


    PRODUCT SPECIFICATIONS
    Plug/Connector Type Hardwired
    Receptacle Type Hardwired
    Bypass Switch Automatic
    Emergency Power OFF Yes
    Transfer Time 0 ns
    Load Capacity (VA) 3 kVA
    Load Capacity (Watt) 2.40 kW
    Input Voltage 110 V AC
    Output Voltage 120 V AC
    Serial Port Yes
    USB Yes
    Backup/Run Time (Full Load) 12 Minute
    Backup/Run Time (Half Load) 30 Minute
    Typical Battery Recharge Time 6 Hour
    Hot Swappable Yes
    Height 5.20" (132.08 mm)
    Width 17.80" (452.12 mm)
    Depth 29.50" (749.30 mm)
    Rack Height 3U
    Form Factor Rack/Tower
    Weight (Approximate) 111.30 lb (50484.83 g)
    Package Contents
    • SmartOnline SU3000RTXR3UHW 3000 VA Tower/Rack Mountable UPS
    • PowerAlert Software CD
    • USB Cable
    • Serial Cable
    • Owner's Manual with Warranty Information
    • 4 Post Rackmount Kit
    Certifications & Standards
    • UL1778
    • FCC Part 15 Category A
    Software Included PowerAlert Software
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 2 Year
