About this UPS

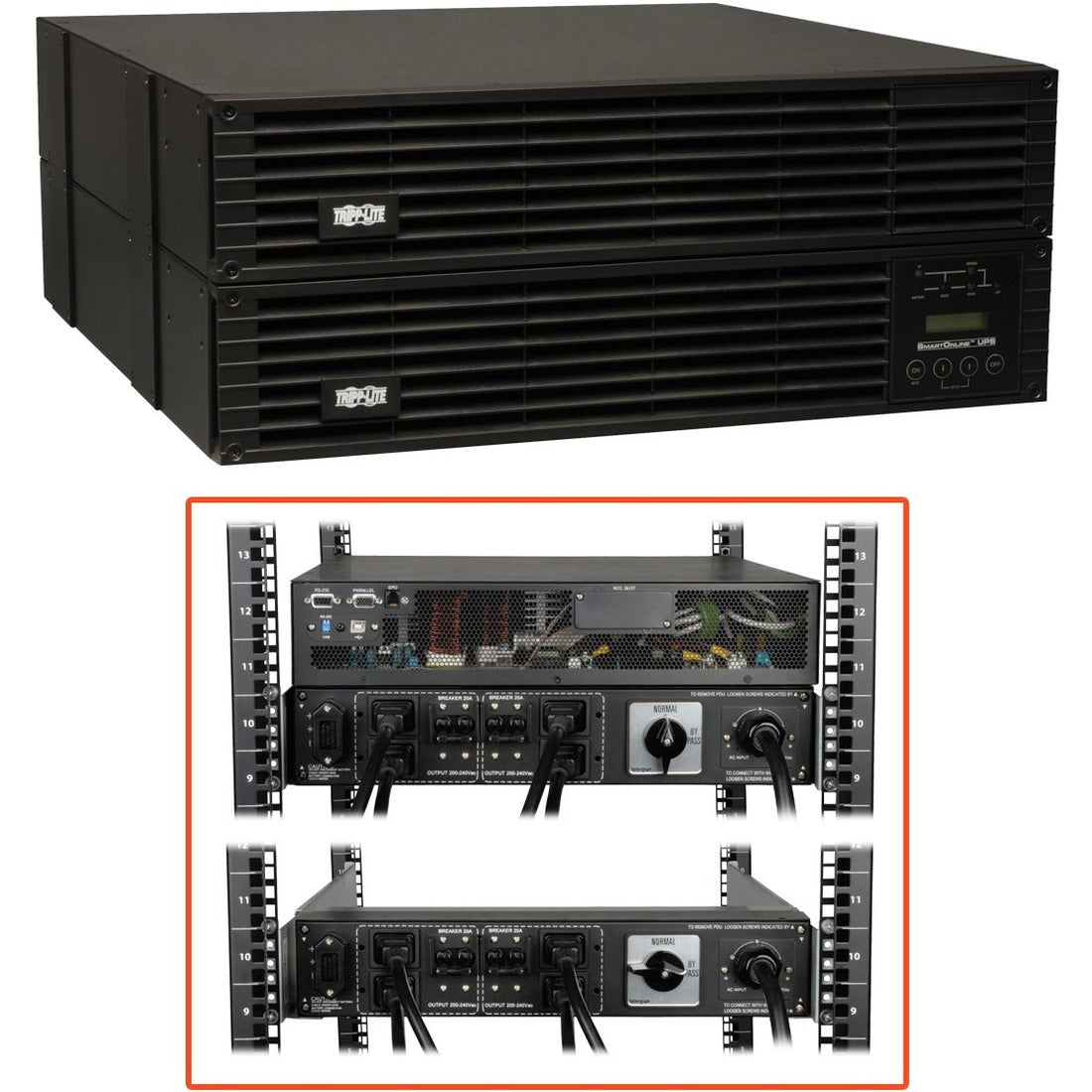

Tripp Lite by Eaton SmartOnline EZ SU6000RT4UHVG 6000 VA Tower/Rack Mountable UPS
| UPC | 0037332157232 |
| 4U Rack/Tower - 6 Hour Recharge - 2 Minute Stand-by - 220 V AC Input - 240 V AC, 240 V AC, 240 V AC, 230 V AC, 208 V AC Output - Serial Port - USB - 4 - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU6000RT4UHVG |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Series: | EZ |
| Product Model: | SU6000RT4UHVG |
| Product Name: | SmartOnline EZ SU6000RT4UHVG 6000 VA Tower/Rack Mountable UPS |
| Marketing Information: | Tripp Lite SU6000RT4UHVG 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a single 4U rack/tower compatible housing. Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then re-synthesizes output power back to perfect sine wave AC. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Included PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS. Hardwire input and 4 C19 outlets. Support for optional North American and International cordsets. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Detail: | 4 |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns | Power Description |
| Load Capacity (VA): | 6 kVA |
| Load Capacity (Watt): | 5.40 kW |
| Input Voltage: | 220 V AC |
| Input Current: | 31.90 A |
| Output Voltage: |
|
Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 2 Minute |
| Backup/Run Time (Half Load): | 8.50 Minute |
| Typical Battery Recharge Time: | 6 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 6.85" (173.99 mm) |
| Width: | 17.50" (444.50 mm) |
| Depth: | 20.70" (525.78 mm) |
| Rack Height: | 4U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 48.99 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: | Output Receptacles: 4 x C19 |
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software Suite |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
