| UPC | 0037332157232 |
| 4U Rack/Tower - 6 Hour Recharge - 2 Minute Stand-by - 220 V AC Input - 240 V AC, 240 V AC, 240 V AC, 230 V AC, 208 V AC Output - Serial Port - USB - 4 - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SU6000RT4UHVG |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Series: | EZ |
| Product Model: | SU6000RT4UHVG |

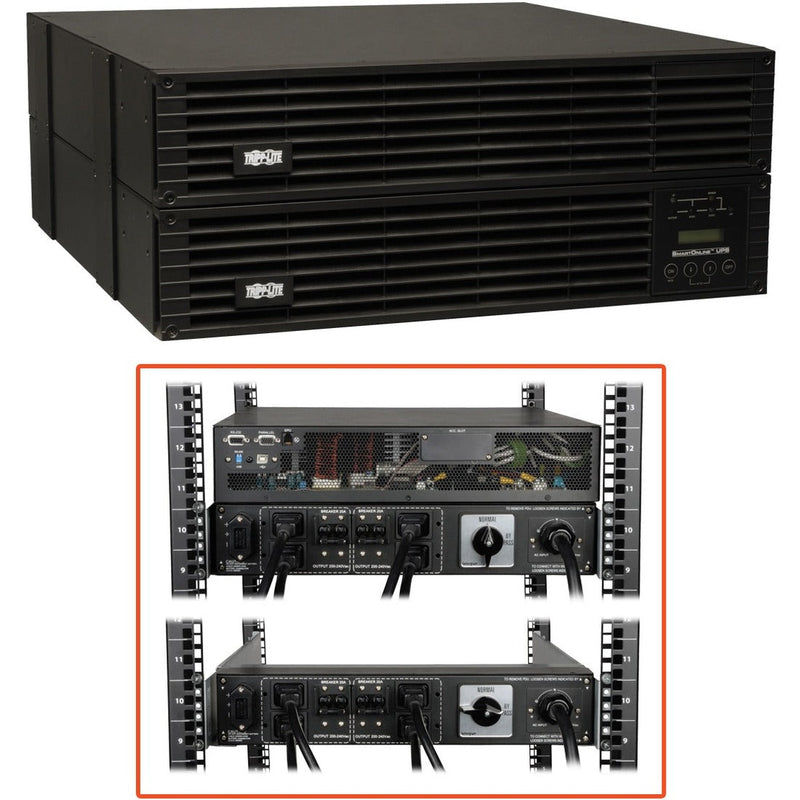

| Product Name: | SmartOnline EZ SU6000RT4UHVG 6000 VA Tower/Rack Mountable UPS |
| Marketing Information: | Tripp Lite SU6000RT4UHVG 6000VA / 6kVA / 5400 watt on-line, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a single 4U rack/tower compatible housing. Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal during brownouts as low 100V and overvoltages as high as 300V. Double-conversion operation converts raw input from AC to DC, then re-synthesizes output power back to perfect sine wave AC. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Included PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems. Front panel LEDs and LCD readout with scroll controls support front-panel visual monitoring of all major UPS. Hardwire input and 4 C19 outlets. Support for optional North American and International cordsets. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Detail: | 4 |
| Bypass Switch: |
|
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns | Power Description |
| Load Capacity (VA): | 6 kVA |
| Load Capacity (Watt): | 5.40 kW |
| Input Voltage: | 220 V AC |
| Input Current: | 31.90 A |
| Output Voltage: |
|
Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 2 Minute |
| Backup/Run Time (Half Load): | 8.50 Minute |
| Typical Battery Recharge Time: | 6 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 6.85" (173.99 mm) |
| Width: | 17.50" (444.50 mm) |
| Depth: | 20.70" (525.78 mm) |
| Rack Height: | 4U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 48.99 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: | Output Receptacles: 4 x C19 |
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software Suite |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
