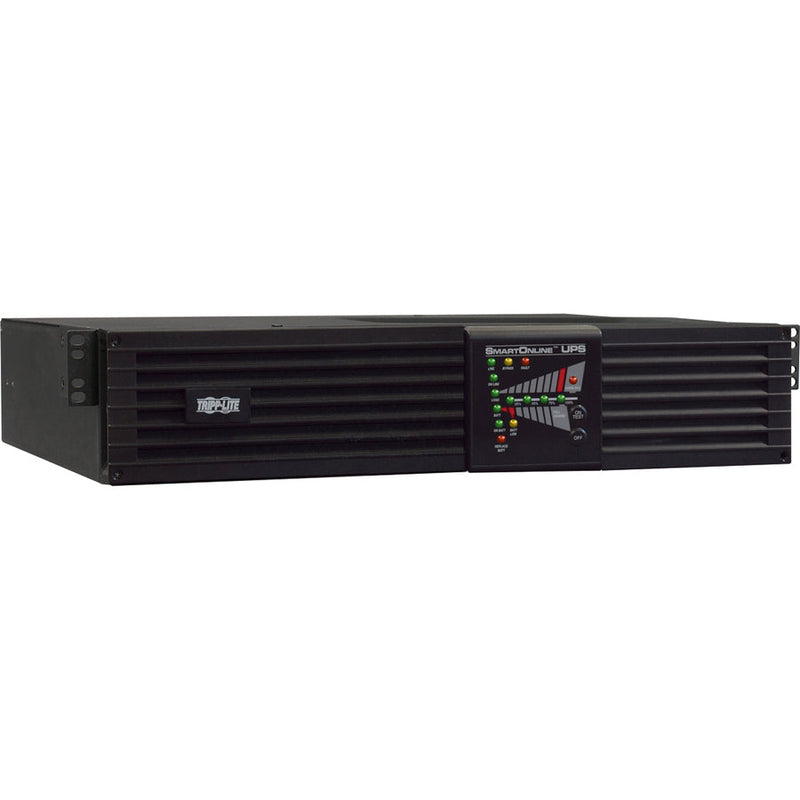

Tripp Lite by Eaton SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS - SUINT3000RTXL2U - Double Conversion Online UPS, 220 V AC, Rack/Tower, 2U, 240 V AC,208 V AC,220 V AC,230 V AC, SmartOnline, 15 Minute, 6 Minute, 3 kVA/2.50 kW

Tripp Lite by Eaton SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS - SUINT3000RTXL2U - Double Conversion Online UPS, 220 V AC, Rack/Tower, 2U, 240 V AC,208 V AC,220 V AC,230 V AC, SmartOnline, 15 Minute, 6 Minute, 3 kVA/2.50 kW-UPSPLUSBATTERY

Tripp Lite by Eaton SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS - SUINT3000RTXL2U - Double Conversion Online UPS, 220 V AC, Rack/Tower, 2U, 240 V AC,208 V AC,220 V AC,230 V AC, SmartOnline, 15 Minute, 6 Minute, 3 kVA/2.50 kW

/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
Call us if you need a quote - particularly for out of stock items.
Product Features:
  • Brand: Tripp Lite by Eaton
  • Product Type: Double Conversion Online UPS
  • Manufacturer Part Number: SUINT3000RTXL2U
  • Input Voltage: 220 V AC
  • Form Factor: Rack/Tower
  • Rack Height: 2U
  • Product Family: SmartOnline
  • Backup/Run Time (Half Load): 15 Minute
  • Backup/Run Time (Full Load): 6 Minute
  • Load Capacity: 3 kVA/2.50 kW

    • Marketing Information:

    3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 66cm (26 inches). Full time sine wave 200/208/220/230/240V output with +/-2% voltage regulation. UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 120V and overvoltages to 288V. C20 inlet accepts a wide variety of optional cordsets. C19 and C13 output receptacles. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Multi-stage metered current monitoring and battery charge status LEDs.

Product Specifications:
Product Features:
  • Manufacturer:Eaton Corporation
  • Manufacturer Part Number:SUINT3000RTXL2U
  • Manufacturer Website Address:http://www.eaton.com/EatonCom/Markets/NorthAmerica
  • Brand Name:Tripp Lite by Eaton
  • Product Line:SmartOnline
  • Product Model:SUINT3000RTXL2U
  • Product Name:SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS

    • Marketing Information:

    3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 66cm (26 inches). Full time sine wave 200/208/220/230/240V output with +/-2% voltage regulation. UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 120V and overvoltages to 288V. C20 inlet accepts a wide variety of optional cordsets. C19 and C13 output receptacles. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Multi-stage metered current monitoring and battery charge status LEDs.


    PRODUCT SPECIFICATIONS
    Receptacle Detail 10
    Bypass Switch Automatic
    Emergency Power OFF Yes
    Transfer Time 0 ns
    Load Capacity (VA) 3 kVA
    Load Capacity (Watt) 2.50 kW
    Input Voltage 220 V AC
    Input Current 15 A
    Output Voltage
    • 240 V AC
    • 208 V AC
    • 220 V AC
    • 230 V AC
    Network Management SNMP Manageable
    Serial Port Yes
    USB Yes
    Backup/Run Time (Full Load) 6 Minute
    Backup/Run Time (Half Load) 15 Minute
    Typical Battery Recharge Time 4.80 Hour
    Hot Swappable Yes
    Height 3.50" (88.90 mm)
    Width 17.30" (439.42 mm)
    Depth 26" (660.40 mm)
    Rack Height 2U
    Form Factor Rack/Tower
    Weight (Approximate) 78.30 lb (35516.28 g)
    Package Contents
    • SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
    • 4 Post Rackmount Installation Brackets
    • C19 to C20 Power Cable
    • PowerAlert Software CD
    • USB Cable
    • Serial Cable
    • Owner's Manual with Warranty Information
    Additional Information

    Input Receptacle: C20

    Output Receptacles:

    • 2 x C19
    • 8 x C13
    Certifications & Standards
    • UL1778
    • FCC Part 15 Category A (EMI)
    • TAA Compliant
    Software Included PowerAlert Software
    Country of Origin China
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 2 Year

    Call us if more information required.
