Available on orderTripp Lite
· SUINT3000LCD2U
Tripp Lite SmartOnline SUINT3000LCD2U 3000 VA / 2700 W Rack Online UPS 230 V
- Power
- 3000 VA / 2700 W
- Form
- Rackmount 2U
- Outlets
- 2× IEC 60320 C19, 8× IEC 60320 C13
$3,636.99
Tripp Lite
Tripp Lite SmartOnline SUINT3000RTXL2U 3000 VA / 2500 W Rack/Tower UPS 230 V
Tripp Lite SmartOnline SUINT3000RTXL2U 3000 VA / 2500 W Rack/Tower UPS 230 V
Discontinued by the manufacturerManufacturer’s current model: SUINT3000LCD2U. This listing is the earlier model.
Regular price
$3,202.00 CAD
Regular price
Sale price
$3,202.00 CAD
Available on order
230 V model. Not for 120 V outlets.
Shipping calculated at checkout.
Quantity
Local pickup: available in the Montreal area, Quebec, by appointment. Call 438-881-3363 first.
- Prices in CAD. Shipping is available across Canada; see the shipping policy for rates and timing.
- New in box: manufacturer warranty applies
- Have a purchase order? Request a quote.
Questions? 438-881-3363 · Mon to Fri
About this UPS

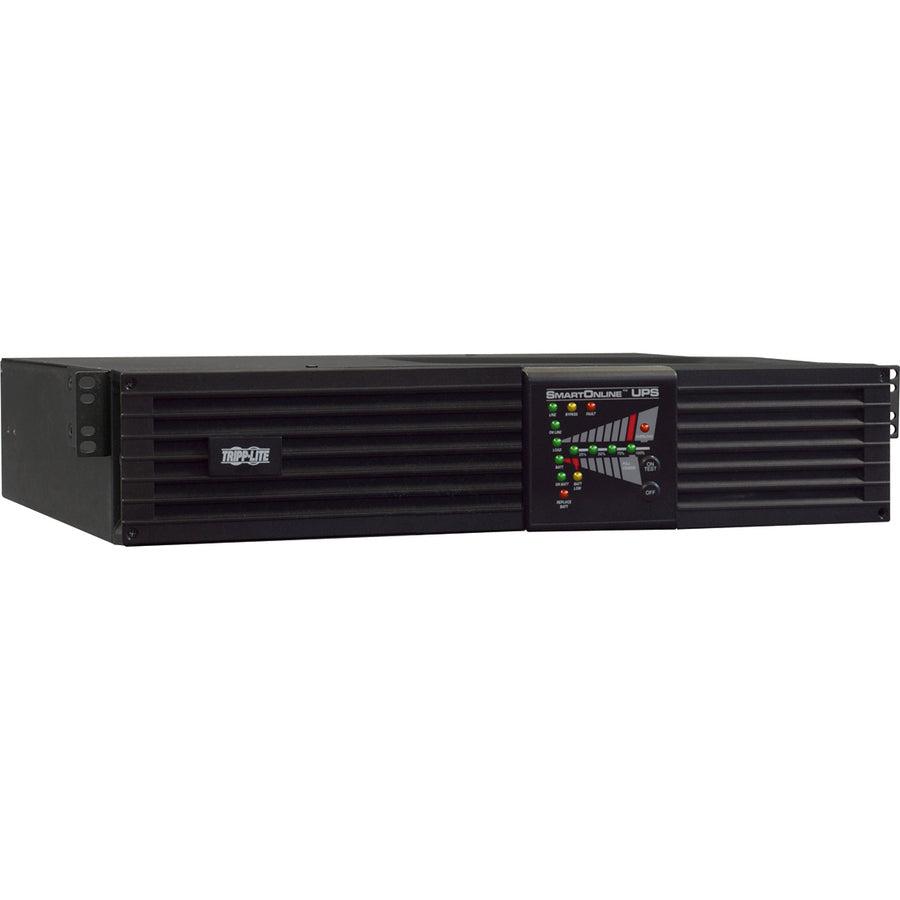

Tripp Lite by Eaton SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS
| UPC | 0037332149183 |
| 2U Rack/Tower - 4.80 Hour Recharge - 6 Minute Stand-by - 220 V AC Input - 240 V AC, 208 V AC, 240 V AC, 220 V AC, 230 V AC Output - Serial Port - USB - 10 - SNMP Manageable | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SUINT3000RTXL2U |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Model: | SUINT3000RTXL2U |
| Product Name: | SmartOnline SUINT3000RTXL2U 3000 VA Tower/Rack Mountable UPS |
| Marketing Information: | 3000VA / 3kVA / 2500 watt on-line, double-conversion UPS system for critical server, network and telecommunications equipment. 2U rackmount form factor with an installed depth of only 66cm (26 inches). Full time sine wave 200/208/220/230/240V output with +/-2% voltage regulation. UPS actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 120V and overvoltages to 288V. C20 inlet accepts a wide variety of optional cordsets. C19 and C13 output receptacles. Network management interfaces include USB port, DB9 serial port and SNMPWEBCARD slot. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Multi-stage metered current monitoring and battery charge status LEDs. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Receptacle Detail: | 10 |
| Bypass Switch: | Automatic |
| Emergency Power OFF: | Yes |
| Transfer Time: | 0 ns | Power Description |
| Load Capacity (VA): | 3 kVA |
| Load Capacity (Watt): | 2.50 kW |
| Input Voltage: | 220 V AC |
| Input Current: | 15 A |
| Output Voltage: |
|
Management |
| Network Management: | SNMP Manageable | Interfaces/Ports |
| Serial Port: | Yes |
| USB: | Yes | Battery Information |
| Backup/Run Time (Full Load): | 6 Minute |
| Backup/Run Time (Half Load): | 15 Minute |
| Typical Battery Recharge Time: | 4.80 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 3.50" (88.90 mm) |
| Width: | 17.30" (439.42 mm) |
| Depth: | 26" (660.40 mm) |
| Rack Height: | 2U |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 35.52 kg | Miscellaneous |
| Package Contents: |
|
| Additional Information: |
Input Receptacle: C20 Output Receptacles:
|
| Certifications & Standards: |
|
| Software Included: | PowerAlert Software |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 2 Year |
Technical specifications
Power
VA Rating
3000VA
Wattage
2500W
Topology
Online Double-Conversion
Waveform
Pure Sine Wave
Input
Input Voltage
240V
Input Plug
IEC C20
Input Phase
Single-phase
Output
Output Voltage
230V
Receptacles
2× IEC 60320 C198× IEC 60320 C13
Features
Form Factor
Rackmount 2U
Rack Units
2U
Connectivity
USBRS-232 SerialSNMP (via Network Management Card)HTTP/Web Management
Network Card Installed
No
Extended Runtime Capable
Yes
Condition
New
Dimensions
89 × 439 × 660 mm (3.50 × 17.30 × 26.00 in)
Weight
35.52kg
Certifications
RETIE (Colombia)CSA (Canada)UL 1778
Manufacturer Warranty
2 years
Setup checklist: after you receive your UPS →
Backup runtime
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Half load (1250 W)
15 min
Full load (2500 W)
6 min
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Available now
The manufacturer no longer makes the SUINT3000RTXL2U. These UPS are sold today; each card compares one with the discontinued model.
-
Xtreme Power Conversion
Xtreme Power J90i-3KLiD 3000 VA / 2700 W Lithium-Ion UPS, 230 V
Compared with SUINT3000RTXL2U Spec SUINT3000RTXL2U Xtreme Power Capacity 3000 VA / 2500 W 3000 VA / 2700 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Rackmount 1U, 1U Input plug IEC C20 IEC C20 Outlets 2 × IEC 60320 C19, 8 × IEC 60320 C13 3 × IEC 60320 C13, 1 × IEC 60320 C19 Runtime, half load 15 min 8 min Differences
- 4 battery-backed outlets instead of 10
$5,881.49 -
Xtreme Power Conversion
Xtreme Power P91g-3000 3000 VA / 3000 W Online UPS, 230 V
Compared with SUINT3000RTXL2U Spec SUINT3000RTXL2U Xtreme Power Capacity 3000 VA / 2500 W 3000 VA / 3000 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug IEC C20 NEMA L6-20P Outlets 2 × IEC 60320 C19, 8 × IEC 60320 C13 1 × IEC 60320 C19, 8 × IEC 60320 C13 Runtime, half load 15 min 10 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C20 inlet cord
- 9 battery-backed outlets instead of 10
- Larger unit: 3000 W instead of 2500 W
$3,064.32 -
Xtreme Power Conversion
Xtreme Power P91g-3kLi 3000 VA / 2700 W Lithium-Ion Online UPS, 208/230 V
Compared with SUINT3000RTXL2U Spec SUINT3000RTXL2U Xtreme Power Capacity 3000 VA / 2500 W 3000 VA / 2700 W Topology Online Double-Conversion Online Double-Conversion Form Rackmount 2U, 2U Tower/Rack Convertible, 2U Input plug IEC C20 NEMA L6-20P Outlets 2 × IEC 60320 C19, 8 × IEC 60320 C13 1 × IEC 60320 C19, 8 × IEC 60320 C13 Runtime, half load 15 min 23 min Differences
- Needs an L6-20R receptacle; this model uses an IEC C20 inlet cord
- 9 battery-backed outlets instead of 10
- No external battery option
$5,822.09
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Discontinued by the manufacturer
Available now
The manufacturer no longer makes the SUINT3000RTXL2U. These UPS are sold today; each card compares one with the discontinued model.
Questions? Call 438-881-3363 or ask for a quote.
Works with this UPS
Only accessories the manufacturer lists for this model.
Shipped across Canada
Shipping is available across Canada. See the shipping policy for rates and timing.
Manufacturer-backed
New UPS units carry the warranty coverage stated by the manufacturer. See the product listing or manufacturer documentation for the applicable terms.
In business since 2012
UPSPLUSBATTERY has supplied Canadian UPS systems since 2012.
Sizing & install help
Email your load profile and we'll spec the right UPS within one business day.

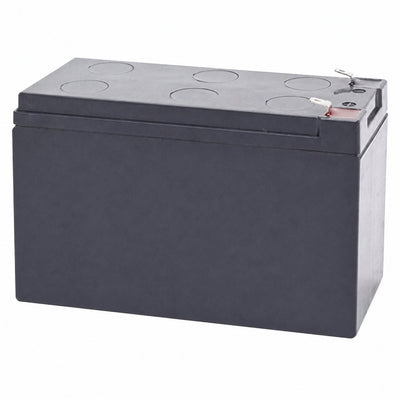

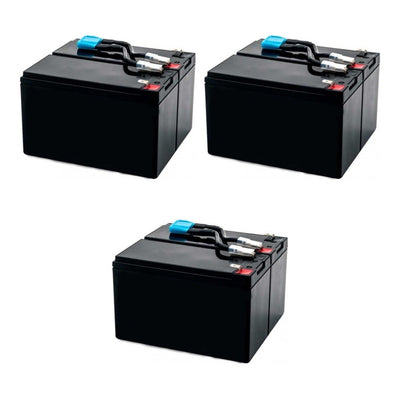

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Bookmark this page
before you need it.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
