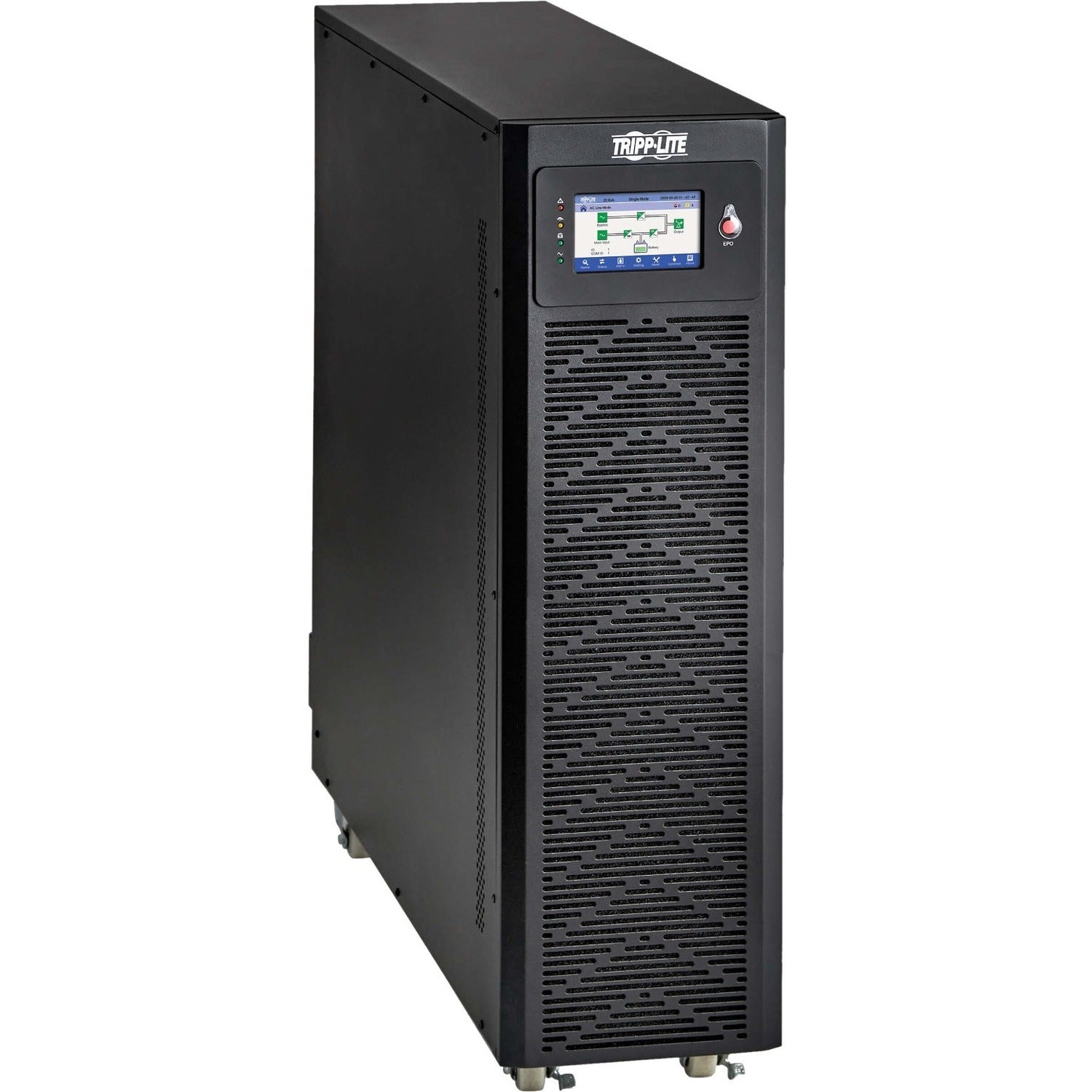

Tripp Lite by Eaton SmartOnline S3M10K3B 10kVA Tower UPS - S3M10K3B

Battery Backup and VFI Operation Protect Critical Loads

The SmartOnline ® S3M10K3B IGBT UPS supports the continuous availability of your most important operational and IT equipment loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage- and frequency-independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 10kVA/kW of clean, continuous power, this 3-phase UPS system is ideally suited for critical applications in banking, education, healthcare, government and manufacturing sectors.

Best-in-Class Footprint for Easy Integration into Your Network Application

The UPS market's smallest footprint for 3-phase 208V systems lets you install the S3M10K3B in spaces that would otherwise have required expensive retrofitting. By achieving its compact size without compromising runtime, reliability or functionality, the S3M10K3B is recommended for data centers, colocation facilities and edge computing environments that require high efficiency, high performance and clean, reliable power protection, while preserving as much space as possible for revenue-generating server racks.

Efficient Operation and Design Reduces Cost of Ownership

ENERGY STAR 2.0-certified technology provides high operational efficiency to save on utility and cooling costs, as well as protect the environment. This UPS achieves up to 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. Unity output power factor (1.0) lets you support more equipment. A low THDi (<2%) improves generator compatibility. A low THDv (≤1%) and active power factor correction with DSP control improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Automatic and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.

Supplies Reliable Battery Backup with Expandable Runtime Options

Two internal battery modules provide 45 minutes of support at half load and 20 minutes at full load with zero transfer time. Adding external battery cabinets, such as BP240V09K and BP240V09 (sold separately), provides extended runtime and supports critical loads uninterrupted during successive utility network outages. A one-touch cold-start button powers up the UPS with battery power only.

Intuitive LCD Interface Delivers Important Performance Information at a Glance

The large five-inch touchscreen LCD panel displays critical operating conditions and diagnostic data, including battery and load status. Four LEDs provide information about AC, bypass, battery and fault status.

Remote Network Monitoring and Control Available 24 Hours a Day

The optional Java-free WEBCARDLXMINI network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. WEBCARDLXMINI also supports EnviroSense2 (sold separately), which monitors temperature, humidity and other environmental factors. Three MODBUS ports (RS-485, USB, RS-232) may also be used to monitor and manage the UPS. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.

• IT Equipment
• Network
• Telecommunication
• Finance
• Industrial
• Data Center
• Server Room
• Critical System
• Banking
• Education
• Healthcare
• Government
• Manufacturing Facility
• Edge Computing

• 120 V AC
• 230 V AC

• 120 V AC
• 208 V AC
• 127 V AC
• 220 V AC

• SNMP Manageable
• SSH
• Telnet

• Low Battery
• Overload
• Shutdown
• Bypass Mode

• Home
• Status
• Alarm
• Setting
• Maint
• Common
• About

LED Indicators:

• Four LEDs indicate AC mode (Green)
• Bypass (Yellow)
• Battery (Yellow)
• Fault (Red) Modes

• SmartOnline S3M10K3B 10kVA Tower UPS
• RS-232 Cable (Male/Female), 5 ft. (1.5 m)
• Parallel Cable (Male/Female), 5 ft. (1.5 m)
• USB Cable, 5 ft. (1.5 m)
• Battery Cable Anderson Connectors Set to Terminate a Battery Cable (2 Black, 2 White, 2 Red and several metal terminals)
• Cable Glands (x6) for Cable Landing Box (waterproof fasteners)
• Dry Contact Connector (Green)
• Owner's Manual
