About this UPS

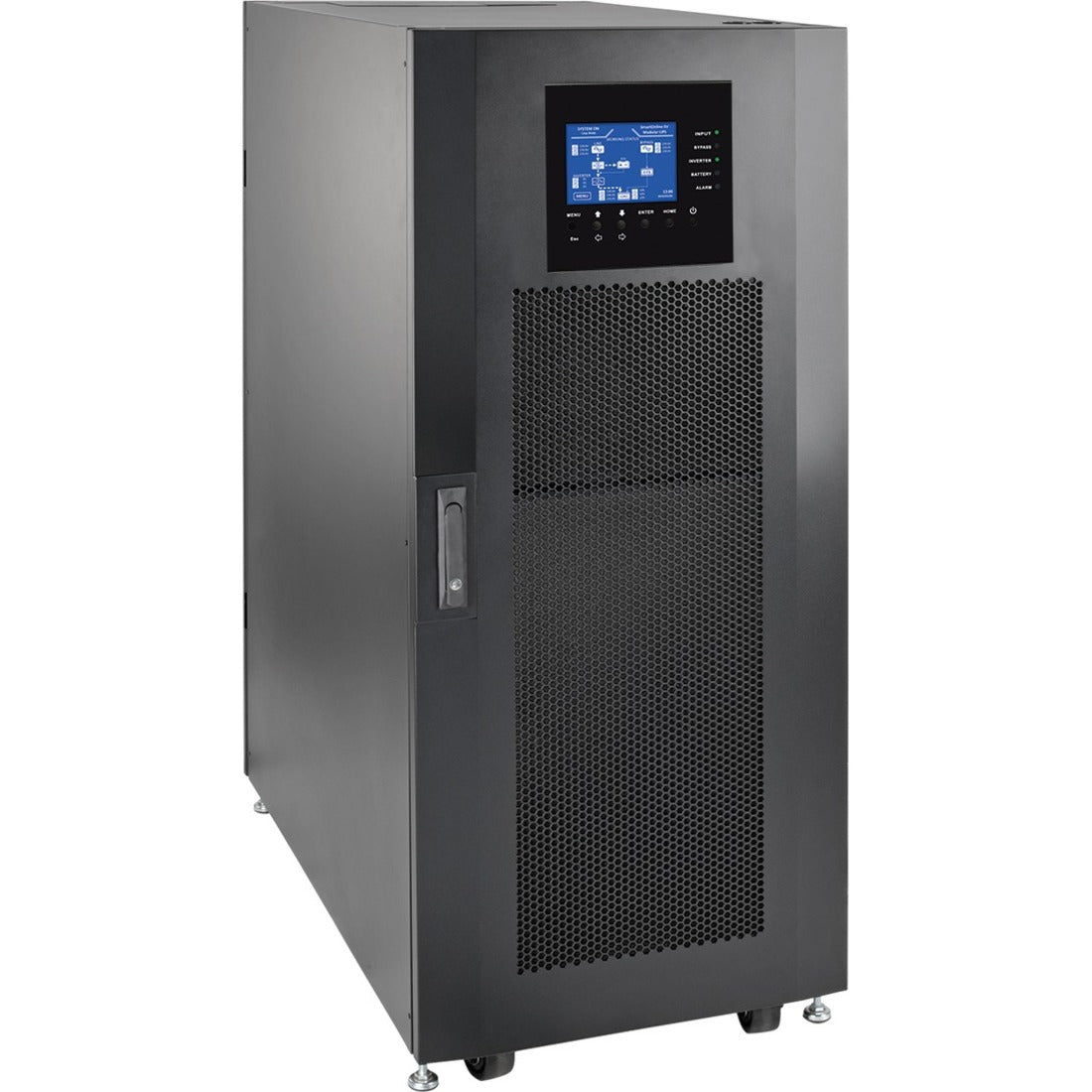

Tripp Lite by Eaton SmartOnline SV40KS2P0B 40kVA Tower UPS
| UPC | 037332196286 |
| Tower - AVR - 4.60 Hour Recharge - 120 V AC, 127 V AC, 208 V AC, 220 V AC Input - 120 V AC, 208 V AC, 127 V AC, 220 V AC Output - Serial Port | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SV40KS2P0B |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Series: | SV |
| Product Model: | SV40KS2P0B |
| Product Name: | SmartOnline SV40KS2P0B 40kVA Tower UPS |
| Marketing Information: |
The SV40KS2P0B SmartOnline ® SV Series 40kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems. The SV40KS2P0B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and two 20kVA SV20PM power modules. Space is included for one additional user-installable SV20PM power module. External ±120VDC battery options, such as BP240V370 or EBP240VXXX series battery cabinets, are available from Tripp Lite for extended runtime. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. With up to 92% efficiency in standard mode and up to 98% efficiency in optional economy mode, this 40kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Front-panel display offers full UPS condition and status reporting. Features
Pre-Installed WEBCARDLX Network Interface
Modular, Scalable Design for Maximum Flexibility
Optional Economy Mode
Wide Input/Narrow Output Voltage Operating Range
Advanced IGBT Inverter with Digital Signal Processor (DSP) Technology
|
| Product Type: | Double Conversion Online UPS | Technical Information |
| AVR: | Yes |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: | Hardwire (3P + N + E) |
| Transfer Time: | 0 ns |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Three Phase |
| Energy Saving: | Green Energy-Saving |
| Application/Usage: | Critical IT System | Power Description |
| Load Capacity (VA): | 40 kVA |
| Input Voltage: |
|
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 2496 J | Management |
| Network Management: | SNMP/HTTP Remote Monitoring |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
Front Panel LCD Display:
Front panel LED indicators:
|
Interfaces/Ports |
| Serial Port: | Yes |
| EPO Port: | Yes | Battery Information |
| DC System Voltage: | 120 V DC |
| Typical Battery Recharge Time: | 4.60 Hour | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 140 °F (60 °C) |
| Maximum Operating Elevation: | 3280.84 ft (1000000 mm) |
| Storage Relative Humidity: | 0% - 95% |
| Sound Emission (A-Weighted): | 73 dB(A) |
| Thermal Dissipation: | 12249 BTU/h | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 58.07" (1474.98 mm) |
| Width: | 23.62" (599.95 mm) |
| Depth: | 43.30" (1099.82 mm) |
| Weight (Approximate): | 328.40 kg | Miscellaneous |
| Package Contents: |
|
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty: | 1 Year |
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Approximate - based on a single manufacturer anchor point. Estimates are roughest near very light or very heavy loads.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
