About this UPS

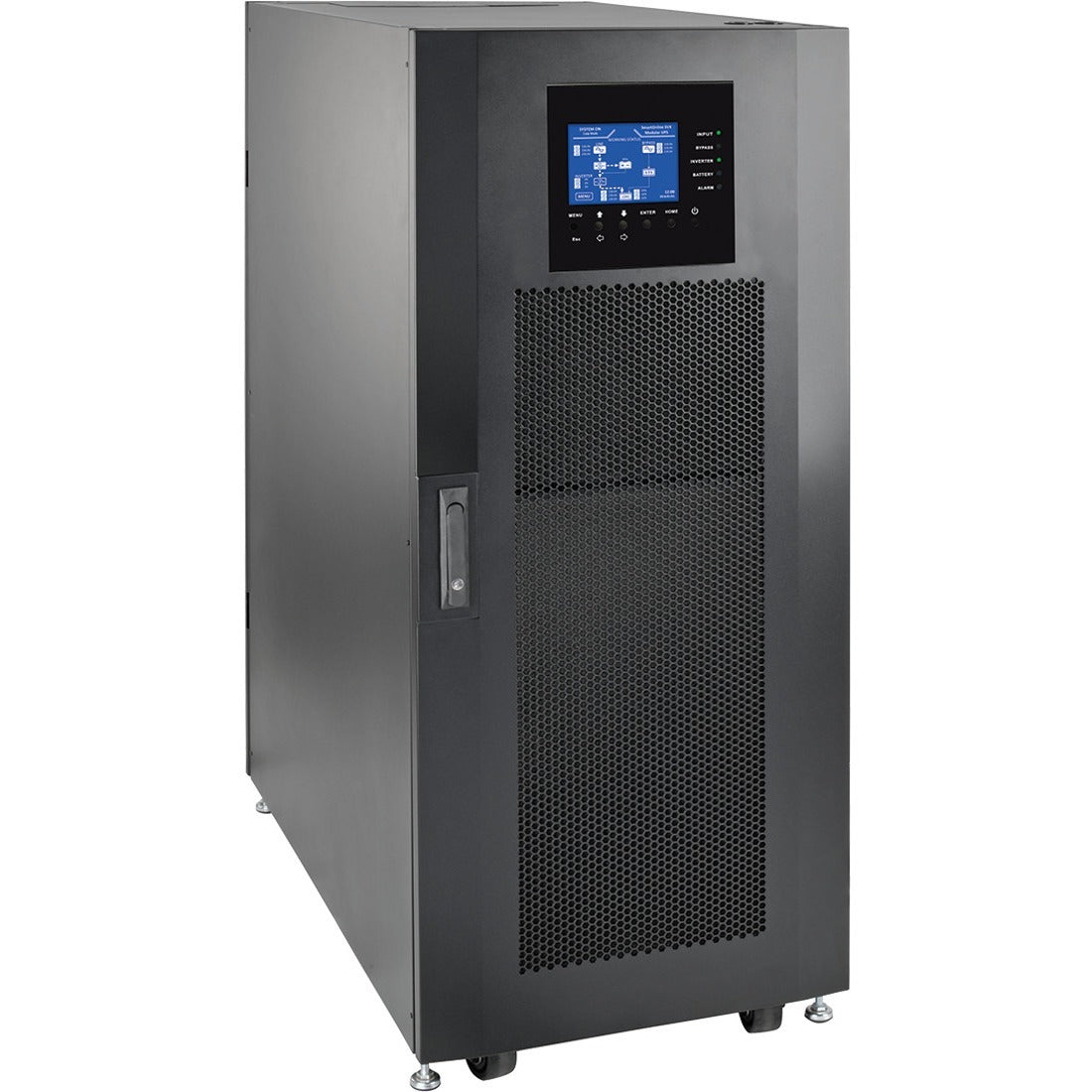

Tripp Lite by Eaton SmartOnline SVX90KS3P 90kVA Tower UPS
| UPC | 037332278746 |
| Tower - 230 V AC, 380 V AC, 400 V AC, 415 V AC Input - 380 V AC, 400 V AC, 415 V AC Output - Serial Port | |
| General Information | |
|---|---|
| Manufacturer: | Tripp Lite by Eaton |
| Manufacturer Part Number: | SVX90KS3P |
| Manufacturer Website Address: | https://tripplite.eaton.com/ |
| Brand Name: | Tripp Lite by Eaton |
| Product Line: | SmartOnline |
| Product Series: | SVX |
| Product Model: | SVX90KS3P |
| Product Name: | SmartOnline SVX90KS3P 90kVA Tower UPS |
| Marketing Information: |
Tripp Lite's SVX90KL 90kVA / 90kW SmartOnline ® Small-Frame UPS includes installed Input, Bypass and Output breakers, a Static Transfer Switch (STS) and 3 included 30kVA SVX30PM power modules. This is the maximum configuration supported by the SVX Small-Frame UPS series. External ±240VDC batteries required (sold separately). Featuring a modular, scalable design with high-efficiency voltage and frequency independent/VFI operation, Tripp Lite's SVX Series SmartOnline UPS systems are ideal for the protection of a wide variety of critical IT systems. Scalable, modular configuration enables UPS capacity upgrades and hot-swap power supply maintenance without costly downtime. Over 95% efficient in standard online mode and over 99% efficient in optional economy mode enables reduced operating and cooling costs. Unity power factor configuration provides equal kVA and kW output ratings for up to 25% more wattage capacity than common 0.8 - 0.9 power factor competing designs. Network-grade sine-wave AC output with 1% output voltage regulation and less than 1.5% output total harmonic distortion. Advanced IGBT inverter with Digital Signal Processor (DSP) technology provides for less than 3% input total harmonic distortion (THDi) to support 1:1 generator sizing. Dual-input hardwire design enables operation from one or two input power sources for enhanced system availability. N+1 fault-tolerance is configurable anytime there is an "extra" SVX30PM 30kW power module installed beyond the minimum required quantity. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: | Hardwired |
| EMI/RFI Noise Filter: | Yes |
| Phase: | Three Phase |
| Energy Saving: | Greater than 95% efficiency - GREEN UPS; High efficiency economy mode operation; Schedulable daily hours of economy mode operation |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 90 kVA |
| Load Capacity (Watt): | 90 kW |
| Input Voltage: |
|
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz |
| Waveform Type: | Pure Sine Wave |
| Surge Energy Rating: | 2180 J | Management |
| Network Management: | SNMP Manageable |
| Alarm: |
|
Controls/Indicators |
| Status Indicators: |
|
Interfaces/Ports |
| Serial Port: | Yes |
| EPO Port: | Yes | Battery Information |
| DC System Voltage: | 240 V DC |
| Battery Characteristics: | Hot-swappable |
| Replaceable Battery: | Yes | Environmental Conditions |
| Maximum Operating Temperature: | 104 °F (40 °C) |
| Storage Temperature: | 5 °F (-15 °C) - 140 °F (60 °C) |
| Maximum Operating Elevation: | 3280.84 ft (1000000 mm) |
| Storage Relative Humidity: | 0% - 95% |
| Sound Emission (A-Weighted): | 73 dB(A) |
| Thermal Dissipation: | 17200 BTU/h | Physical Characteristics |
| Form Factor: | Tower |
| Height: | 58.07" (1475 mm) |
| Width: | 23.62" (600 mm) |
| Depth: | 43.31" (1100 mm) |
| Weight (Approximate): | 363.01 kg | Miscellaneous |
| Country of Origin: | China |
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Technical specifications
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Approximate - based on a single manufacturer anchor point. Estimates are roughest near very light or very heavy loads.
Need more runtime? This UPS accepts external battery packs (XBPs). Contact us about XBP options →
Estimate based on manufacturer-specified runtime curve. Real-world runtime varies with battery age, ambient temperature, and load profile.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating — not VA — is the number that matters. Aim for the UPS to run at 60–70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list and we'll size the right UPS within one business hour.
What's covered by the warranty, and how long does it last?
New units carry the full manufacturer warranty registered to you on receipt. The manufacturer handles claims directly via their North American support channel. Refurbished units are covered by our own 1-year UPSPLUSBATTERY warranty handled in-house in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model — contact us if you don't see the right XBP in our catalogue.
