Adding Eaton 9PX external battery modules with a verified voltage-family match
A composite edge-computing case that turns an autonomy request into an exact UPS, EBM and test record
Publication note. This composite scenario describes a plausible technical situation from the cited sources. No customer, site, price, measured result or completed work is presented as real.
Decision in brief
Match the complete 9PX and EBM catalogue numbers, verify any adapter requirement, confirm rack loading and cable reach, then commission the pack count before a witnessed battery test. Treat published runtime charts as planning inputs rather than site acceptance evidence.
| Item | Record |
|---|---|
| Equipment | Eaton 9PX rack or tower UPS with external battery modules |
| Status | Composite scenario with no field outcome claimed |
| Selection basis | Complete nameplate, manufacturer document and site data |
| Closeout | Recorded alarms, load, test and returned operating state |
Technical context
An edge-computing rack needed longer support during generator start. The request named the 9PX family but omitted the full UPS part number, output configuration, existing EBM model and actual load.
The 9PX catalogue includes EBMs with different nominal battery voltages and generation-specific compatibility conditions. Selecting by enclosure height or connector appearance would not be sufficient.
The release decision follows verified evidence.

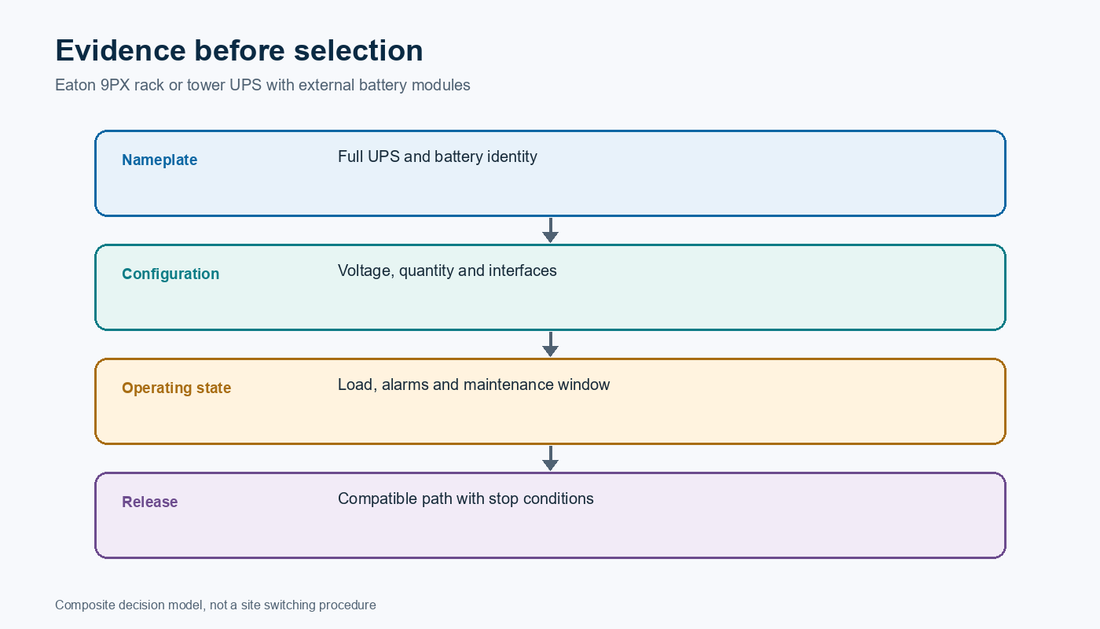

Boundaries established by the evidence
Eaton publishes distinct EBM part numbers for 9PX UPS voltage and capacity families. [1]
Eaton’s current 9PX generation notice includes adapter requirements for certain generation-one EBM combinations. [2]
An EBM increases stored energy but does not prove a target runtime until load and test conditions are recorded. [3]
Products and service in context
The Eaton accessories collection shows the available hardware categories before an exact EBM is selected.
Release conditions before ordering
Use the 9PX battery collection to compare model-specific internal and external battery records after the UPS suffix is known.
Keep the order on hold while any of the following points remains open:
- Incomplete 9PX catalogue number
- Unknown EBM generation or voltage
- Adapter requirement unresolved
- No stable test load or shutdown plan
The release decision follows verified evidence.
Work control: Eaton 9PX rack or tower UPS with external battery modules
The project file pairs the complete 9PX catalogue number with the proposed EBM and any required generation adapter. Rack loading, cable reach, isolation and the configured module count are verified before the battery test is scheduled.
The order remains on hold if the EBM voltage family or adapter requirement is unresolved. Closeout records the installed part numbers, physical and configured pack counts, post-charge alarms, test load and stop point; a runtime chart remains planning evidence only.
If rack work, adapter installation or witnessed testing cannot be handled by the site team, Arrange a professional UPS battery installation provides the qualified installation route.
Handback evidence
- UPS, EBM and adapter part numbers recorded
- Mechanical and cable installation checked
- Configured EBM count reconciled
- Battery alarms cleared after charge
- Runtime observation retained with load and stop point
The release decision follows verified evidence.
Decision outcome
The composite outcome is an approved matched EBM configuration or a documented hold. No runtime improvement is stated because the scenario contains no site measurement.
