About this UPS

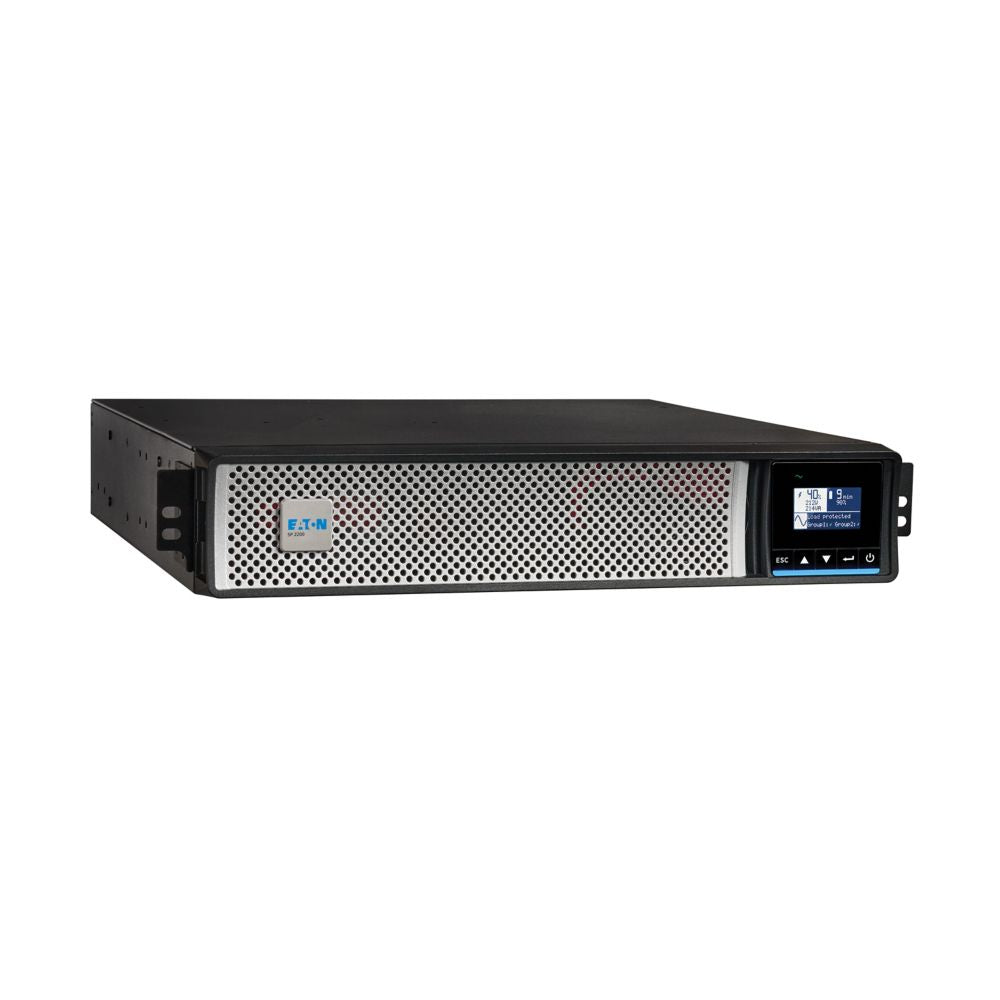

The Eaton 5P G2 5P2200RTNG2 is a 1950 VA / 1950 W rack/tower convertible line-interactive UPS.
Specifications
| Output Capacity (VA) | 1950 VA |
| Output Power (Watts) | 1950 W |
| Topology | Line-Interactive |
| Output Waveform | Pure Sine Wave |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Input Connection | NEMA 5-20P |
| Outlets | 1 × NEMA L5-20R; 6 × NEMA 5-15/20R |
| Form Factor | Tower/Rack Convertible |
| Rack Units | 2U |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Runtime at Half Load | 12.5 min |
| Runtime at Full Load | 4 min. (1950W) |
| Network Card | Pre-Installed Network-M3 network card |
| Dimensions | 438 × 603 × 86 mm (17.24 × 23.74 × 3.39 in) W × D × H |
| Weight | 29.6 kg (65.3 lb) |
| UPC | 786687110934 |
| Manufacturer Part Number | 5P2200RTNG2 |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Compare with alternatives
The 5P2200RTNG2 side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P80-2200 2200 VA / 2000 W Line-Interactive UPS, 120 V
Compared with 5P2200RTNG2 Spec 5P2200RTNG2 Xtreme Power Capacity 1950 VA / 1950 W 2200 VA / 2000 W Topology Line-Interactive Line-Interactive Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 1 × NEMA L5-20R, 6 × NEMA 5-15/20R 8 × NEMA 5-15/20R Runtime, half load Not stated 12 min Differences
- No L5-20R outlet
- Network card not included
Price confirmed by quote Request a quote -
Xtreme Power Conversion
Xtreme Power P91-2000 2000 VA / 1930 W Online UPS, 120 V
Compared with 5P2200RTNG2 Spec 5P2200RTNG2 Xtreme Power Capacity 1950 VA / 1950 W 2000 VA / 1930 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 1 × NEMA L5-20R, 6 × NEMA 5-15/20R 8 × NEMA 5-15/20R Runtime, half load Not stated 10 min Differences
- No L5-20R outlet
- Slightly lower rating: 1930 W instead of 1950 W
- Network card not included
- Online double-conversion, a step up from line-interactive
Price confirmed by quote Request a quote -
Compared with 5P2200RTNG2 Spec 5P2200RTNG2 360PQ Capacity 1950 VA / 1950 W 2000 VA / 2000 W Topology Line-Interactive Online Double-Conversion Form Tower/Rack Convertible, 2U Tower/Rack Convertible, 2U Input plug NEMA 5-20P NEMA 5-20P Outlets 1 × NEMA L5-20R, 6 × NEMA 5-15/20R 4 × NEMA 5-15R, 4 × NEMA 5-20R Runtime, half load Not stated 12 min Differences
- No L5-20R outlet
- Network card not included
- Online double-conversion, a step up from line-interactive
Price confirmed by quote Request a quote
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
