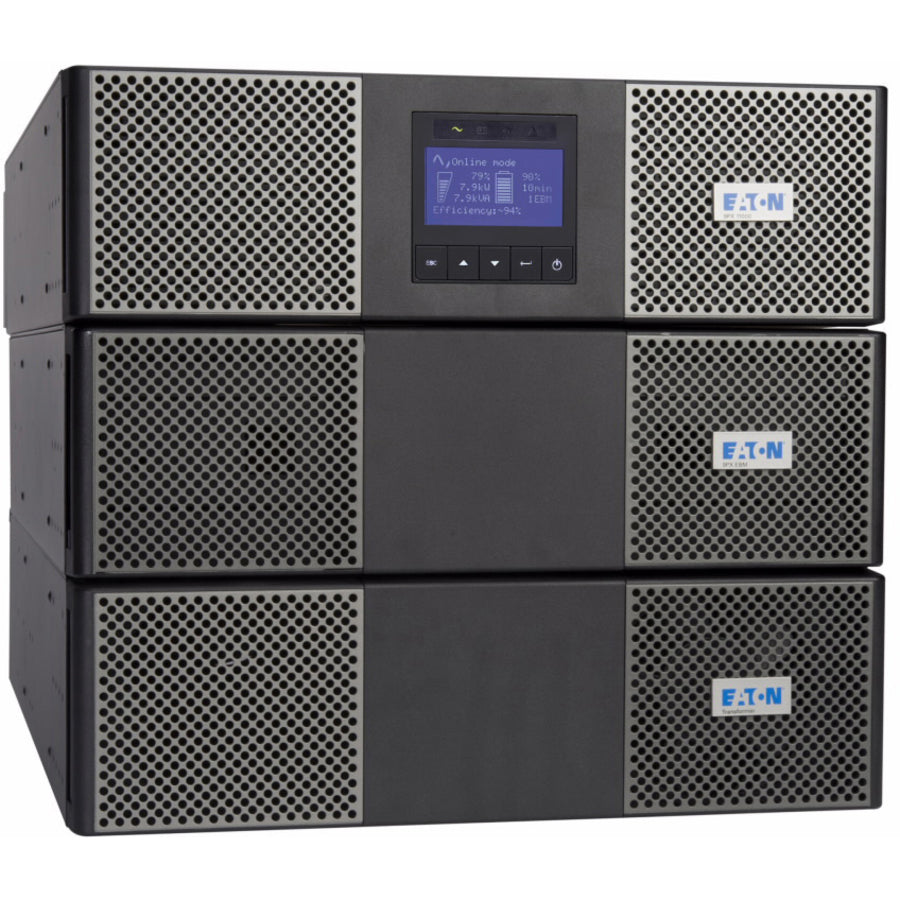

Eaton 9PX UPS, 9U, 11 kVA, 10 kW, Hardwired input, Outputs: (8) 5-20R, (2) L14-30R, Hardwired, 208V - 9PX11KTF11

Eaton 9PX UPS, 9U, 11 kVA, 10 kW, Hardwired input, Outputs: (8) 5-20R, (2) L14-30R, Hardwired, 208V - 9PX11KTF11-UPSPLUSBATTERY

Eaton 9PX UPS, 9U, 11 kVA, 10 kW, Hardwired input, Outputs: (8) 5-20R, (2) L14-30R, Hardwired, 208V - 9PX11KTF11

Regular price $16,810.99
/
  • Delivery across Canada
  • In stock, ready to ship
  • Inventory on the way
 More payment options

Pickup currently unavailable at UPSPLUSBATTERY HQ

Call us if you need a quote - particularly for out of stock items.

Eaton 9PX UPS, 9U, 11 kVA, 10 kW, Hardwired input, Outputs: (8) 5-20R, (2) L14-30R, Hardwired, 208V

UPC 743172039873
9U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 200 V AC, 208 V AC, 230 V AC, 240 V AC, 250 V AC, 120 V AC, 220 V AC Output - 2 x NEMA L14-30R, 8 x NEMA 5-20R - Serial Port - USB
General Information
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX11KTF11
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 9PX
Product Name: 9PX UPS
Marketing Information:

11kVA/10kW/208V Battery Backup for IT Installations and Edge Networks

This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. An included transformer permits a step-down voltage from 208V to 120V to allow connection of a wider range of components. The 9PX11KTF11 is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Battery Backup Keeps You Operational Through Power Outages

Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can connect up to five extended battery modules (9PXEBM240RT, sold separately) for hours of extended runtime or up to 12 EBMs with the optional 3U rack-mount 240VDC supercharger (SC240RT, sold separately).

Included Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA Outlets Protect Your Connected Components

Two L14-30R and eight 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX11KTF11 also supports hardwired output.

Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: Hardwired
Receptacle Type:
  • NEMA L14-30R
  • NEMA 5-20R
  • Hardwired
Receptacle Detail:
  • 2 x NEMA L14-30R
  • 8 x NEMA 5-20R
Transfer Time: 0 ns
Overload Protection: Yes
Power Description
Load Capacity (VA): 11 kVA
Input Voltage:
  • 110 V AC
  • 220 V AC
Output Voltage:
  • 200 V AC
  • 208 V AC
  • 230 V AC
  • 240 V AC
  • 250 V AC
  • 120 V AC
  • 220 V AC
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Management
Network Management: SNMP Manageable
Bypass Switch: Optional
Emergency Power OFF: Yes
Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
USB: Yes
Battery Information
Battery Characteristics: Maintenance-free/Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 10 Minute
Physical Characteristics
Form Factor: Rack/Tower
Rack Height: 9U
Height: 15.30" (388.62 mm)
Width: 17" (431.80 mm)
Depth: 28" (711.20 mm)
Weight (Approximate): 171 kg
Miscellaneous
Package Contents:
  • 9PX 11kVA Tower/Rack Mountable UPS
  • 9PXTFMR11 11K 120V Stepdown Transformer
  • 9PXEBM240RT 3U Extended Battery Module
  • Network-MS Web/SNMP Card
  • 4-Post Rail Kit
  • User Manual
  • Quick Start Guide
  • Tower Pedestals
  • Intelligent Power Software Suite CD
  • RS-232 Serial Cable
  • USB Cable
  • Cable Gland for Hardwire Conection
  • Phillips Head Screw Driver
Software Included: Eaton Intelligent Power Software
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year

Call us if more information required.
