Eaton 9PX5K 5 kVA UPS - 6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 120 V AC Output - 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R - Serial Port - USB

Eaton 9PX5K 5 kVA UPS - 6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 120 V AC Output - 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R - Serial Port - USB-UPSPLUSBATTERY

Eaton 9PX5K 5 kVA UPS - 6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 120 V AC Output - 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R - Serial Port - USB

/
  • Delivery across Canada and USA
  • Low stock - 1 item left
  • Inventory on the way

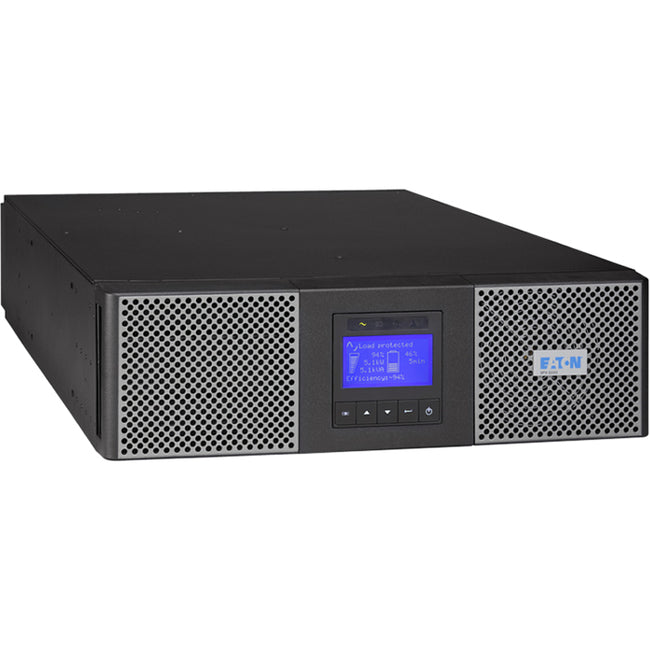

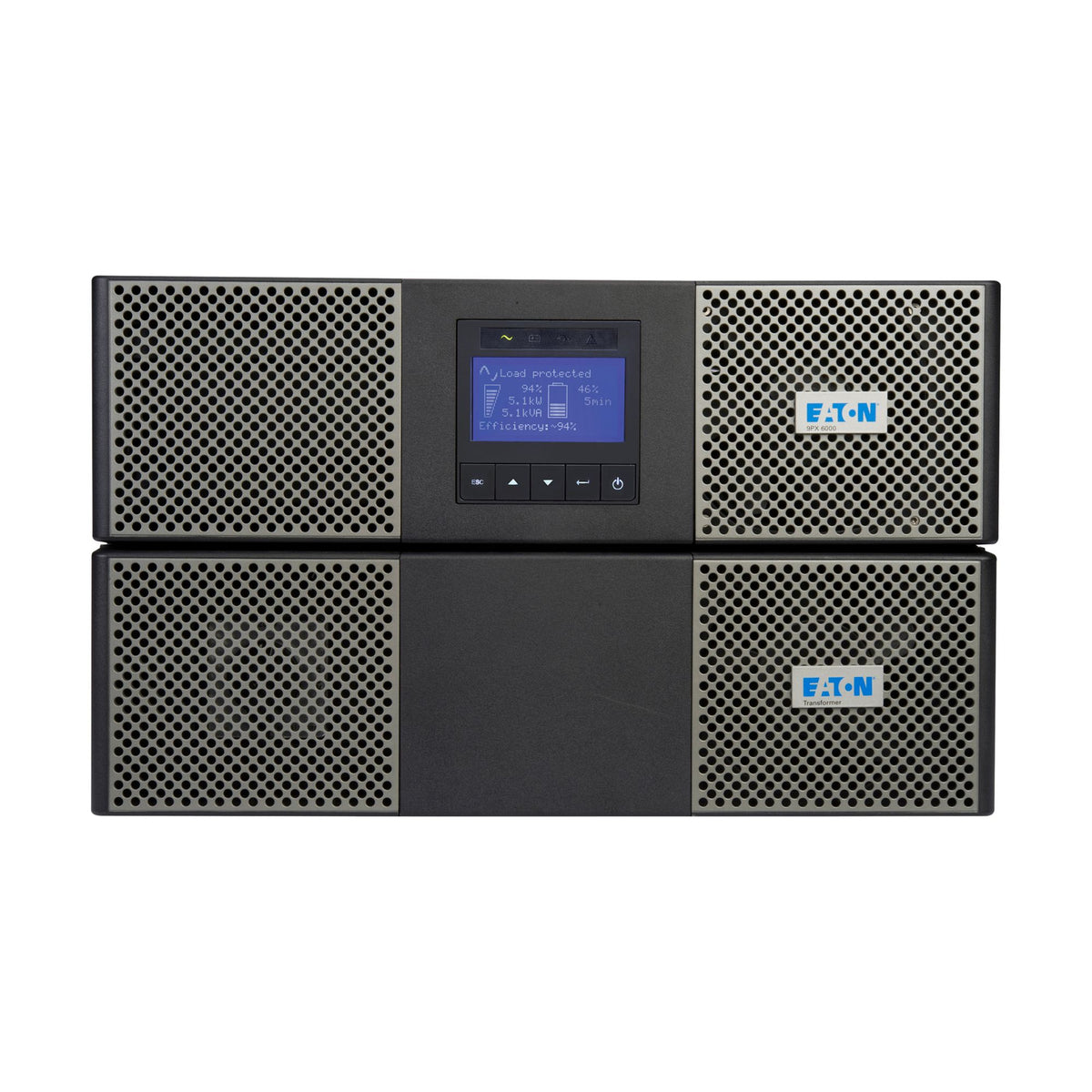

Eaton 9PX5K 5 kVA UPS

UPC 0743172039774
6U Rack/Tower - 3 Minute Stand-by - 110 V AC, 220 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 120 V AC Output - 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R - Serial Port - USB
General Information
Manufacturer: Eaton Corporation
Manufacturer Part Number: 9PX5KTF5
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Series: 9PX
Product Name: 9PX5K 5 kVA UPS
Marketing Information:

5kVA/4.5kW/208V Battery Backup for IT Installations and Edge Networks

This 9PX rack-mount online double-conversion UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. An included transformer permits a step-down voltage from 208V to 120V to allow connection of a wider range of components. The 9PX5KTF5 is superlative power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Expandable Internal Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four extended battery modules (9PXEBM180RT, sold separately) for hours of extended runtime.

Included Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA Outlets Protect Your Connected Components

Two L6-20R, one L6-30R and 18 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The 9PX5KTF5 also supports hardwired output.
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: NEMA L6-30P
Receptacle Type:
  • NEMA 5-20R
  • NEMA L6-20R
  • NEMA L6-30R
  • Hardwired
Receptacle Detail:
  • 18 x NEMA 5-20R
  • 2 x NEMA L6-20R
  • 1 x NEMA L6-30R
Transfer Time: 0 ns
Overload Protection: Yes
Power Description
Load Capacity (VA): 5 kVA
Input Voltage:
  • 110 V AC
  • 220 V AC
Output Voltage:
  • 200 V AC
  • 208 V AC
  • 220 V AC
  • 230 V AC
  • 240 V AC
  • 120 V AC
Input Frequency: 70 Hz
Output Frequency: 60 Hz
Management
Network Management: SNMP Manageable
Bypass Switch: Optional
Emergency Power OFF: Yes
Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
USB: Yes
Battery Information
Battery Characteristics: Maintenance-free/Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3 Minute
Physical Characteristics
Form Factor: Rack/Tower
Rack Height: 6U
Height: 10.20" (259.08 mm)
Width: 17" (431.80 mm)
Depth: 28" (711.20 mm)
Weight (Approximate): 200.62 lb (91000 g)
Miscellaneous
Package Contents:
  • 9PX5K 5 kVA UPS
  • 9PXTFMR5 120V Stepdown Transformer
  • Network-MS Web/SNMP Card
  • 4-Post Rail Kit
  • User Manual
  • Quick Start Guide
  • Tower Pedestals
  • Intelligent Power Software Suite CD
  • RS-232 Serial Cable
  • USB Cable
  • Cable Gland for Hardwire Conection
  • Phillips Head Screw Driver
Software Included: Eaton Intelligent Power Software
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
