| UPC | 786689053437 |
| Rack/Tower - 4 Hour Recharge - 6 Minute Stand-by - 230 V AC Input - 4 x NEMA 5-20R, 2 x NEMA L6-30R - SNMP/HTTP Remote Monitoring - TAA Compliant | |
| General Information | |
|---|---|
| Manufacturer: | Eaton Corporation |
| Manufacturer Part Number: | 9PXM8S8K-PD |
| Manufacturer Website Address: | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name: | Eaton |
| Product Model: | 9PXM8S8K-PD |
| Product Name: | 9PXM UPS |

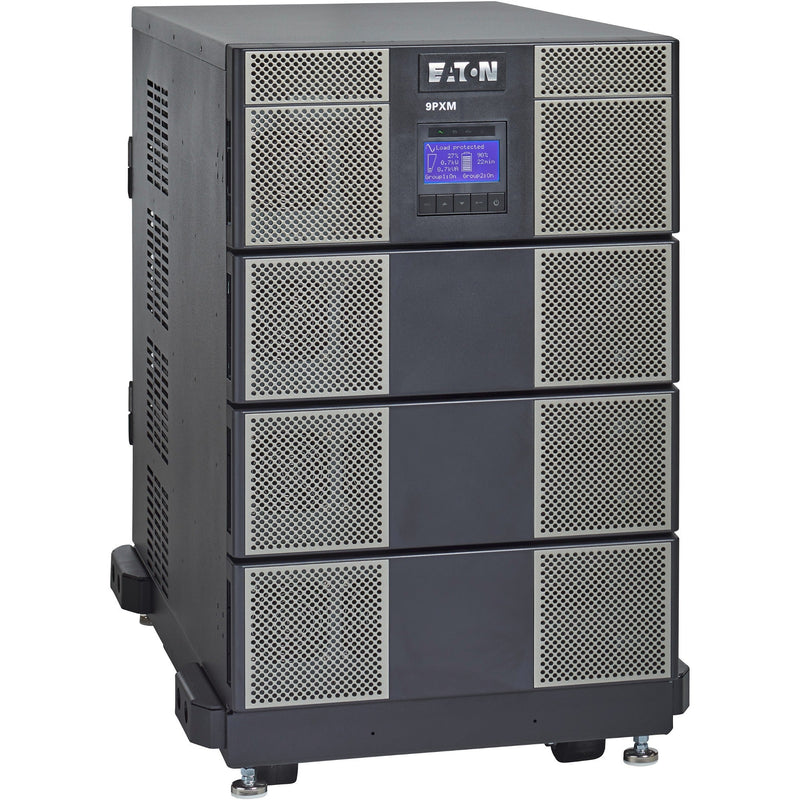

| Marketing Information: | The Eaton 9PXM UPS is a scalable, modular UPS that combines the highest level of reliability with the lowest cost of ownership. Through 4 kVA plug-and-play power modules, the 9PXM delivers an expandable level of N+X redundancy. The 9PXM fits eight or twelve-slot tower enclosures which are easily converted into 14U and 21U rackmount solutions. |
| Packaged Quantity: | 1 |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hardwired |
| Receptacle Type: |
|
| Receptacle Detail: |
|
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 4 kVA |
| Load Capacity (Watt): | 3.60 kW |
| Input Voltage: | 230 V AC |
| Input Voltage Range: | 208 V AC - 240 V AC | Management |
| Network Management: | SNMP/HTTP Remote Monitoring | Battery Information |
| Backup/Run Time (Full Load): | 6 Minute |
| Typical Battery Recharge Time: | 4 Hour |
| Hot Swappable: | Yes | Physical Characteristics |
| Height: | 25" (635 mm) |
| Width: | 17.50" (444.50 mm) |
| Depth: | 34.50" (876.30 mm) |
| Form Factor: | Rack/Tower |
| Weight (Approximate): | 151.05 kg | Miscellaneous |
| Package Contents: |
|
| Country of Origin: | United States |
| TAA Compliant: | Yes | Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
