| UPC | N/A |
| 5 Minutes Full-Load Runtime| Online Double Conversion UPS | Rack/Tower | Factory Installed SNMP/Webcard | Internal Step-Down Transformer | 208 and 120VAC Output | |
| General Information | |
|---|---|
| Manufacturer: | Vertiv |
| Manufacturer Part Number: | AS3C0NCWGNNXLKB |
| Manufacturer Website Address: | http://www.vertiv.com/ |
| Brand Name: | Liebert |
| Product Line: | APS |

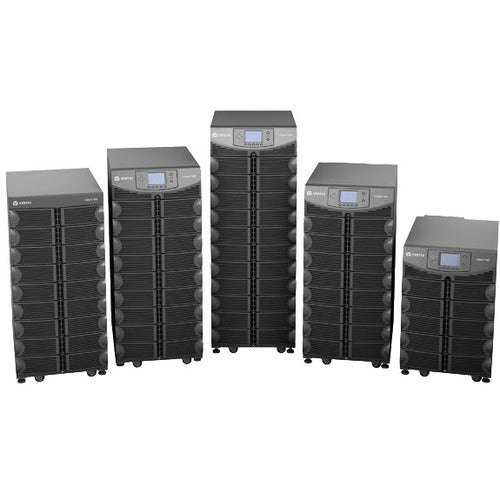

| Product Name: | AS3 15kVA Scalable to 15kVA N+1 |
| Marketing Information: |

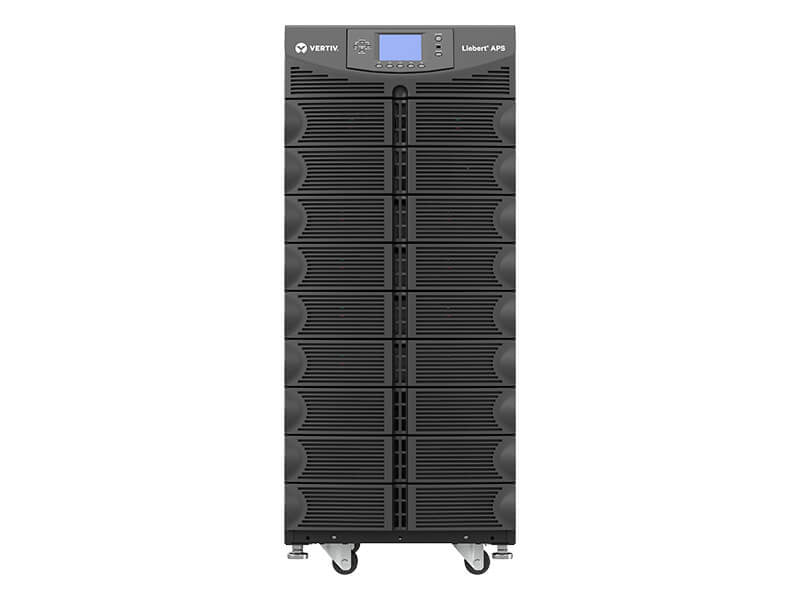

The Vertiv Liebert APS 15kVA Scalable to 15kVA N+1 208V Modular UPS (AS3C0NCWGNNXLKB) is an online double conversion UPS with up to 5 minutes full-load runtime designed for room or row-based applications. It offers redundancy and flexibility for the future while ensuring maximum power availability to your critical systems. The APS modules are hot-swappable FlexPower assemblies and battery modules that are quickly and easily installed or replaced without disrupting power. The addition of power capacity or battery modules as needed or pay as you grow design allows for better CAPEX/OPEX budget management. With high energy efficiency of up to 92%, it supports sustainability and reduces the total cost of ownership (TCO). It has intelligent battery management and can operate in a temporary overload state up to 200% load. For remote management and environmental monitoring, a Liebert IntelliSlot Unity Card (IS-UNITY-DP) comes factory installed for FREE Power Insight Software, and enables compatibility with Vertiv environmental monitoring sensors. |
| Product Type: | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type: | Hard Wire 3-wire (L-L-G) |
| Phase: | Single Phase |
| Application/Usage: |
|
Power Description |
| Load Capacity (VA): | 15 kVA |
| Input Voltage: |
|
| Input Voltage Range: | 120 V AC - 280 V AC |
| Output Voltage: |
|
| Input Frequency: | 70 Hz |
| Output Frequency: | 60 Hz | Controls/Indicators |
| Status Indicators: | LCD Display |
Interfaces/Ports |
| Serial Port: | Yes |
| Modem (RJ-11): | No |
| Network (RJ-45): | Yes |
| USB: | Yes |
| EPO Port: | Yes | Battery Information |
| DC System Voltage: | 144 V DC |
| Battery Characteristics: | Valve-regulated/Non-spillable |
| Battery Chemistry: | Lead Acid |
| Backup/Run Time (Full Load): | 5 Minute |
| Backup/Run Time (Half Load): | 8 Minute | Environmental Conditions |
| Environmental Sensors: |
|
| Maximum Operating Temperature: | 104°F (40°C) |
| Thermal Dissipation: | 4208 BTU/h | Physical Characteristics |
| Form Factor: | Rack/Tower |
| Height: | 27" (685.80 mm) |
| Width: | 17" (431.80 mm) |
| Depth: | 32" (812.80 mm) | Miscellaneous |
| Additional Information: |
|
| Certifications & Standards: |
Certifications & Standards:
|
| Environmentally Friendly: | Yes |
| Environmental Compliance: |
|
Warranty |
| Limited Warranty: | 2 Year |
Call us if more information required.
