About this UPS

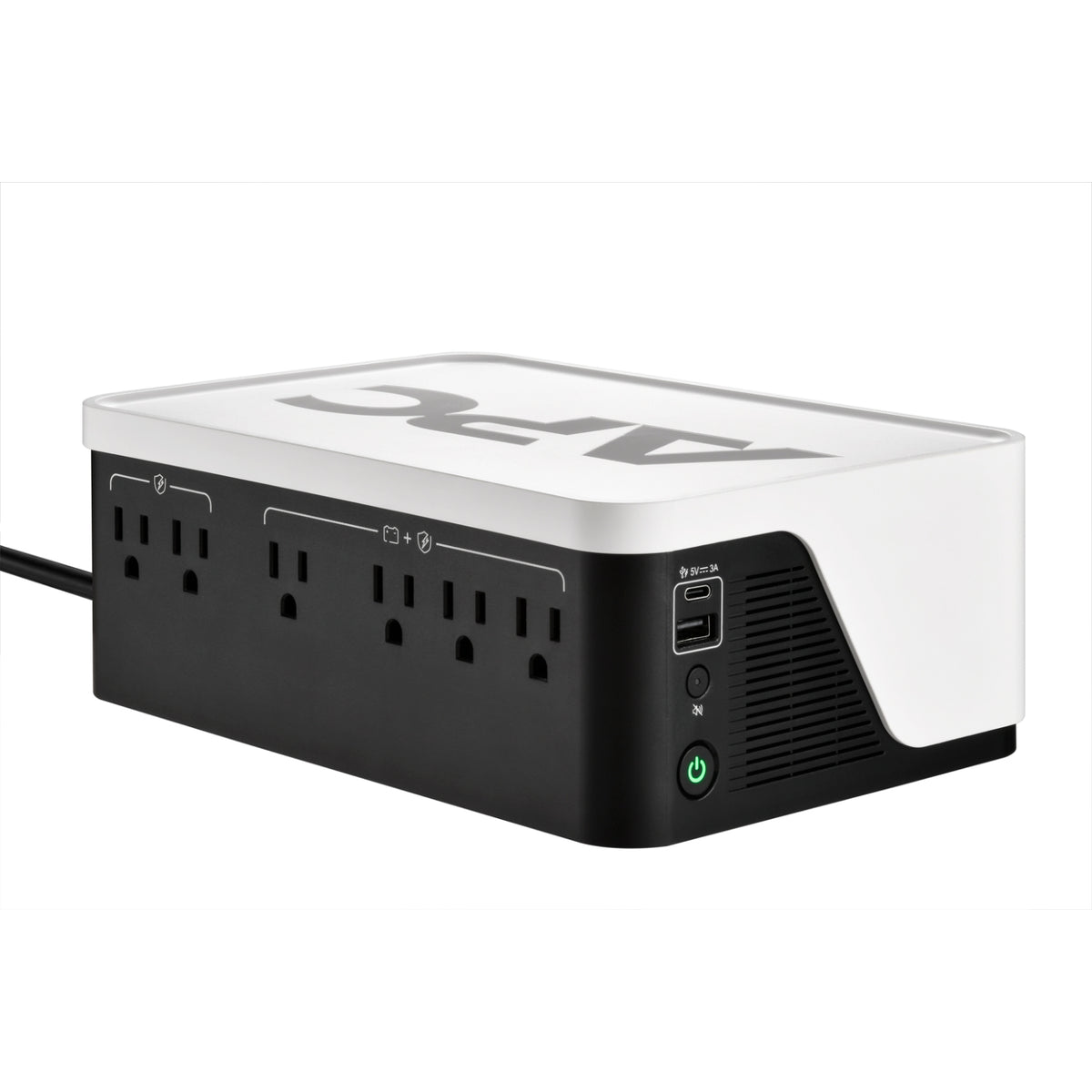

The APC Back-UPS BE500G3 is a 500 VA / 300 W floor or wall mount standby UPS.
Specifications
| Output Capacity (VA) | 500 VA |
| Output Power (Watts) | 300 W |
| Topology | Standby |
| Output Waveform | Simulated Sine Wave |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Input Connection | NEMA 5-15P |
| Outlets | 4 × NEMA 5-15R; 2 × NEMA 5-15R (surge only) |
| Form Factor | Floor/Wall Mount |
| Battery Type | Lead-acid internal included |
| Dimensions | 167 × 245 × 90 mm (6.57 × 9.65 × 3.54 in) W × D × H |
| Weight | 2.9 kg (6.4 lb) |
| Warranty | 3 years UPS, 1 year battery |
| UPC | 731304625353 |
| Manufacturer Part Number | BE500G3 |
Technical specifications
Setup checklist: after you receive your UPS →
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
