About this UPS

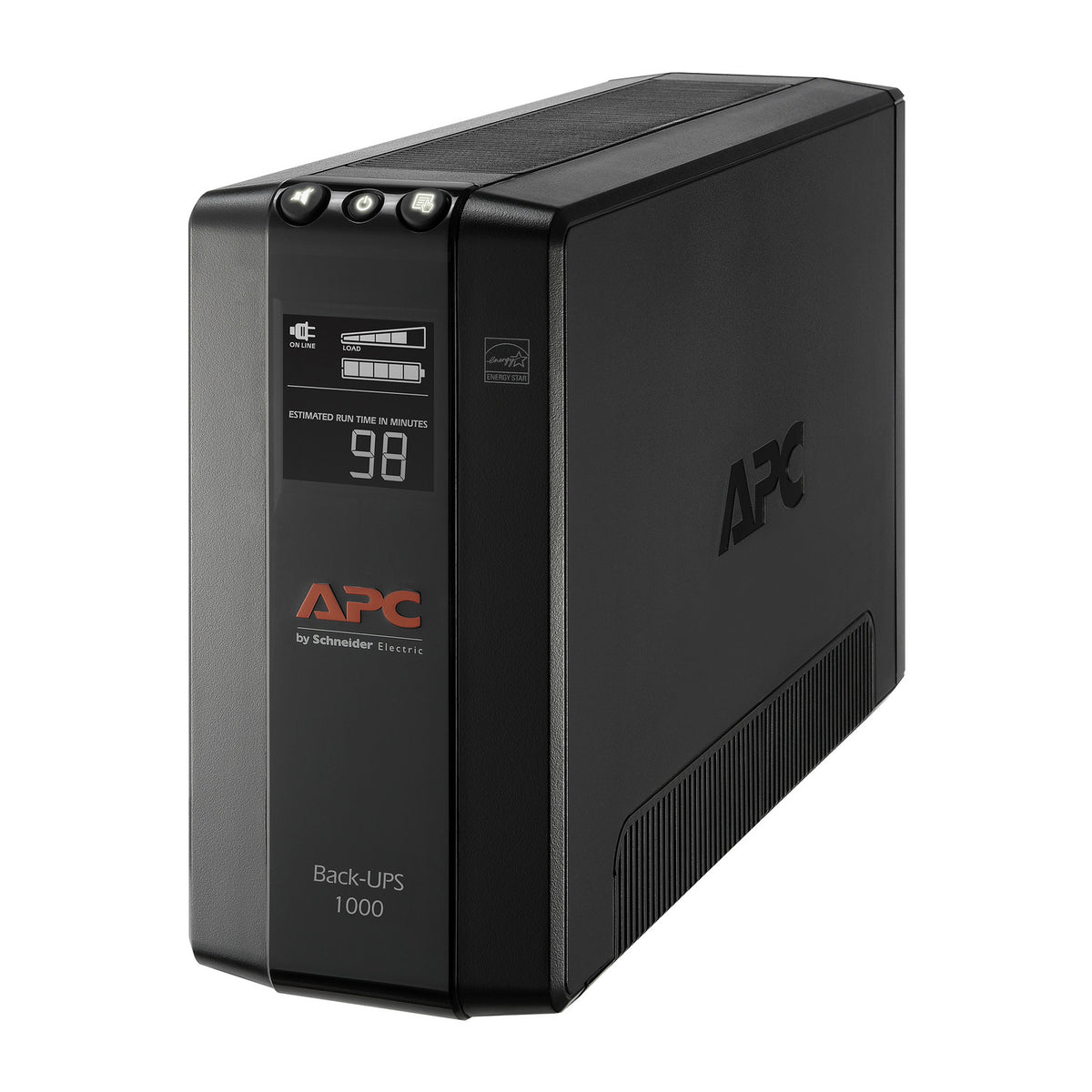

The APC Back-UPS Pro BX1000M is a 1000 VA / 600 W tower line-interactive UPS.
Specifications
| Output Capacity (VA) | 1000 VA |
| Output Power (Watts) | 600 W |
| Topology | Line-Interactive |
| Output Waveform | Simulated Sine Wave |
| Input Voltage | 120V |
| Output Voltage | 120V |
| Input Connection | NEMA 5-15P |
| Outlets | 4 × NEMA 5-15R; 4 × NEMA 5-15R (surge only) |
| Form Factor | Tower |
| Battery Type | Lead-acid internal included |
| Replacement Battery (maker part) | APCRBC158 |
| Dimensions | 91 × 310 × 190 mm (3.58 × 12.20 × 7.48 in) W × D × H |
| Weight | 7.2 kg (15.9 lb) |
| Warranty | 3 years UPS, 1 year battery |
| UPC | 731304331766 |
| Manufacturer Part Number | BX1000M |
Technical specifications
Setup checklist: after you receive your UPS →
Compare with alternatives
The BX1000M side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power S71-1000 1000 VA / 600 W Line-Interactive UPS, 120 V
Compared with BX1000M Spec BX1000M Xtreme Power Capacity 1000 VA / 600 W 1000 VA / 600 W Topology Line-Interactive Line-Interactive Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15R (4 on battery) 6 × NEMA 5-15R Runtime, half load Not stated 2 min Same class on every point compared.
Price confirmed by quote Request a quote -
Xtreme Power Conversion
Xtreme Power P80-800 800 VA / 720 W Line-Interactive UPS, 120 V
Compared with BX1000M Spec BX1000M Xtreme Power Capacity 1000 VA / 600 W 800 VA / 720 W Topology Line-Interactive Line-Interactive Form Tower Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15R (4 on battery) 8 × NEMA 5-15R Runtime, half load Not stated 11 min Differences
- Lower VA rating: 800 VA instead of 1000 VA
- Larger unit: 720 W instead of 600 W
Price confirmed by quote Request a quote -
Xtreme Power Conversion
Xtreme Power T91-700 700 VA / 700 W Online UPS, 120 V
Compared with BX1000M Spec BX1000M Xtreme Power Capacity 1000 VA / 600 W 700 VA / 700 W Topology Line-Interactive Online Double-Conversion Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 4 × NEMA 5-15R, 4 × NEMA 5-15R (4 on battery) 6 × NEMA 5-15R Runtime, half load Not stated 16 min Differences
- Lower VA rating: 700 VA instead of 1000 VA
- Online double-conversion, a step up from line-interactive
- Larger unit: 700 W instead of 600 W
Price confirmed by quote Request a quote
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.

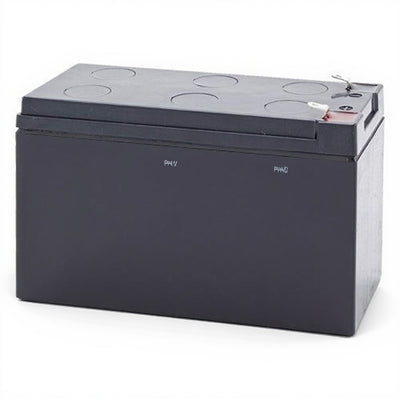

Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Before you order
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
