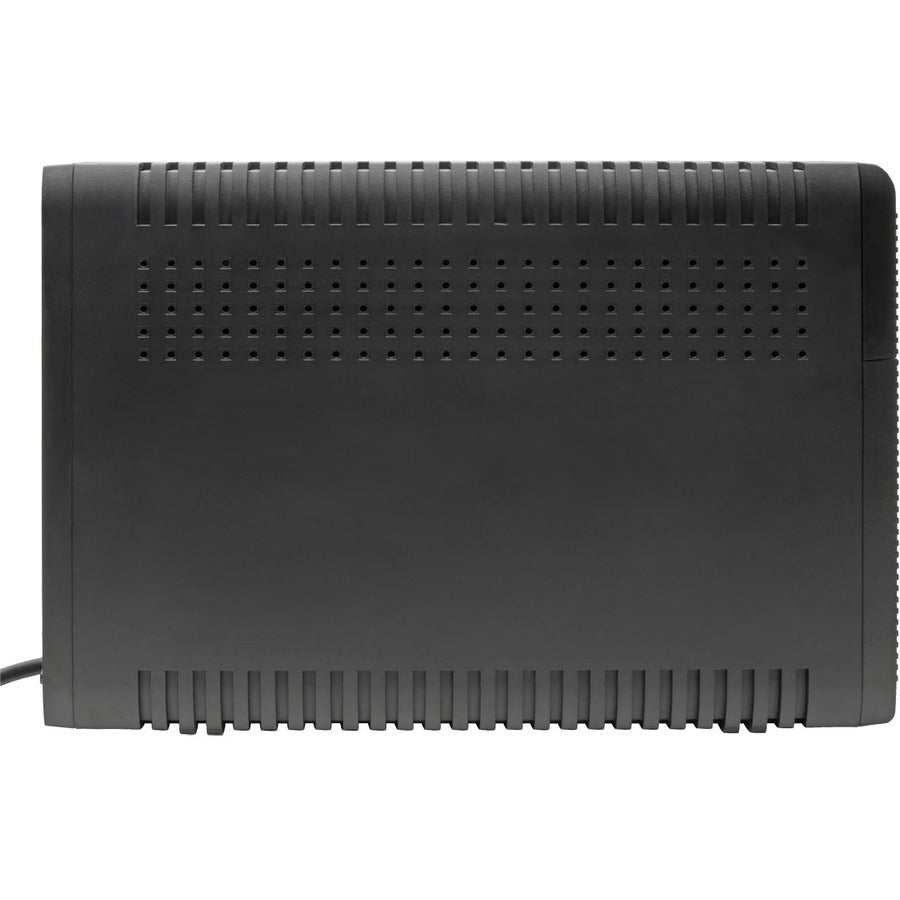

About this UPS
- Brand: Tripp Lite by Eaton
- Product Type: Line-interactive UPS
- Manufacturer Part Number: ECO1300LCD
- Input Voltage: 120 V AC
- Form Factor: Tower
- Waveform Type: Sine Wave
- Plug/Connector Type: NEMA 5-15P
- Product Family: ECO
- Backup/Run Time (Half Load): 12 Minute
- Backup/Run Time (Full Load): 3 Minute
- Load Capacity: 1.30 kVA/720 W
Marketing Information:
Features
Energy-Saving 1300VA/720W USB Battery Backup for PCs or Home Theater Systems
This 120V line-interactive AVR UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The 10-outlet UPS is ideal protection for your home office or media center components, including computers, routers, printers, NAS drives, HDTVs, Blu-ray players, game consoles, media players, DVRs and audio receivers.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with LCD monitor powered as long as 75 minutes. During normal operation, incoming utility power keeps the UPS battery fully charged, so backup power will always be available. The hot-swappable internal batteries can be replaced by the user.
Connects Your Equipment to 10 NEMA 5-15R Outlets
Five 5-15R outlets provide both battery backup and surge protection for your computer, monitor and other crucial components. The other five 5-15R outlets are surge-protected only for printers, scanners and other non-essential equipment. Two outlets-one battery/surge and one surge-only-are spaced apart from the others to accommodate bulky transformers. Four are ECO outlets designed to save you money and protect the environment (see below).
ENERGY STAR-Certified to Help You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. An ECO power-saving option features four ECO outlets-three surge-only, one surge- and battery-protected-that turn off automatically when the device connected to the Battery Backup Master Outlet is powered down or in sleep mode. These outlets are recommended for printers, desk lamps and other non-essential peripherals that don't need to be operational all the time.
Even Backs up Essential Data When You Aren't Around
Use the included USB cable to connect the USB-B port to your computer. Working with Tripp Lite's free downloadable PowerAlert ® software, this optional feature can enable safe unattended system shutdown and file saves in the event of a prolonged power failure when you aren't around.
Automatic Voltage Regulation (AVR) Corrects Low-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The ECO1300LCD can correct brownouts as low as 86V back to nominal 120V power without drawing on the battery backup needed to support your equipment during a blackout.
316 Joules Fight Back Against Unexpected Power Surges
A 316-joule surge suppression rating protects connected components from the harmful effects of power surges. Dual network data line surge suppression jacks protect a wired peripheral from dangerous surges on a single 10/100Base-T or dial-up network connection.
USB Charging Ports Keep Mobile Devices Fully Powered for Immediate Use
Two 5V USB ports share 2.1 amps of maximum charge current for charging smartphones, tablets, MP3 players and other essential mobile devices compatible with USB chargers. These ports are intended only for USB charging, which is available when the UPS system is turned on and receiving utility power.
| PRODUCT SPECIFICATIONS | |
|---|---|
| Width | 3.90" (99.06 mm) |
| Depth | 16.14" (409.96 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 22.44 lb (10178.61 g) |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
Technical specifications
Setup checklist: after you receive your UPS →
How long it'll keep your equipment up.
Manufacturer-specified runtime at typical loads. Real-world figures depend on battery age, ambient temperature, and load profile.
Compare with alternatives
The ECO1300LCD side by side with UPS from other makers.
-
Xtreme Power Conversion
Xtreme Power P80-800 800 VA / 720 W Line-Interactive UPS, 120 V
Compared with ECO1300LCD Spec ECO1300LCD Xtreme Power Capacity 1300 VA / 720 W 800 VA / 720 W Topology Line-Interactive Line-Interactive Form Tower Tower/Rack Convertible, 2U Input plug NEMA 5-15P NEMA 5-15P Outlets 5 × NEMA 5-15R, 5 × NEMA 5-15R (5 on battery) 8 × NEMA 5-15R Runtime, half load 12 min 11 min Differences
- Lower VA rating: 800 VA instead of 1300 VA
$1,068.18 -
Xtreme Power Conversion
Xtreme Power S71-1500 1500 VA / 900 W Line-Interactive UPS, 120 V
Compared with ECO1300LCD Spec ECO1300LCD Xtreme Power Capacity 1300 VA / 720 W 1500 VA / 900 W Topology Line-Interactive Line-Interactive Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 5 × NEMA 5-15R, 5 × NEMA 5-15R (5 on battery) 6 × NEMA 5-15R Runtime, half load 12 min Not stated Differences
- Larger unit: 900 W instead of 720 W
$522.80 -
Xtreme Power Conversion
Xtreme Power T91-700 700 VA / 700 W Online UPS, 120 V
Compared with ECO1300LCD Spec ECO1300LCD Xtreme Power Capacity 1300 VA / 720 W 700 VA / 700 W Topology Line-Interactive Online Double-Conversion Form Tower Tower Input plug NEMA 5-15P NEMA 5-15P Outlets 5 × NEMA 5-15R, 5 × NEMA 5-15R (5 on battery) 6 × NEMA 5-15R Runtime, half load 12 min 16 min Differences
- Slightly lower rating: 700 W instead of 720 W
- Lower VA rating: 700 VA instead of 1300 VA
- Online double-conversion, a step up from line-interactive
$958.94
Check outlets and the runtime your load needs before ordering. Questions? Call 438-881-3363 or ask for a quote.
Replacement batteries that fit this exact UPS
A line-interactive UPS typically needs new batteries every 3 to 5 years. Matching replacement cartridges are listed by UPS model; confirm the exact model before ordering.
Questions before you buy
How do I know this UPS will run my equipment?
Add up the wattage draw of every device you'll plug in (servers, switches, monitors). The UPS's wattage rating (not VA) is the number that matters. Aim for the UPS to run at 60 to 70% of capacity at full load: this gives headroom for inrush current and a meaningful runtime margin. Email us your equipment list; we'll respond within one business day with sizing guidance.
What's covered by the warranty, and how long does it last?
New units carry the warranty coverage stated by the manufacturer; see the product listing or manufacturer documentation for the applicable terms. Refurbished units are covered by the 1-year UPSPLUSBATTERY warranty handled in Canada.
Can I extend runtime beyond what's shown above?
Many Smart-UPS-class models accept an external battery pack (XBP) connected to the rear battery port. If this UPS shows "Extended Runtime Capable: Yes" in the spec grid above, an XBP is supported. Compatible XBPs and the runtime gain they deliver vary by model; contact us if you don't see the right XBP in our catalogue.
